Rear Differential Removal (With VTM-4)

Rear Differential Removal

Exploded View





Special Tools Required

- Driveshaft Remover 07AAD-S9VA000

NOTE: Refer to the Exploded View, as needed, during this procedure.

1. Raise and support the vehicle Service and Repair.

2. Remove the rear wheels.

3. Drain the rear differential fluid Rear Differential Fluid Inspection And Replacement (With VTM-4).

4. Remove the left rear driveshaft Rear Driveshaft Removal (With VTM-4).

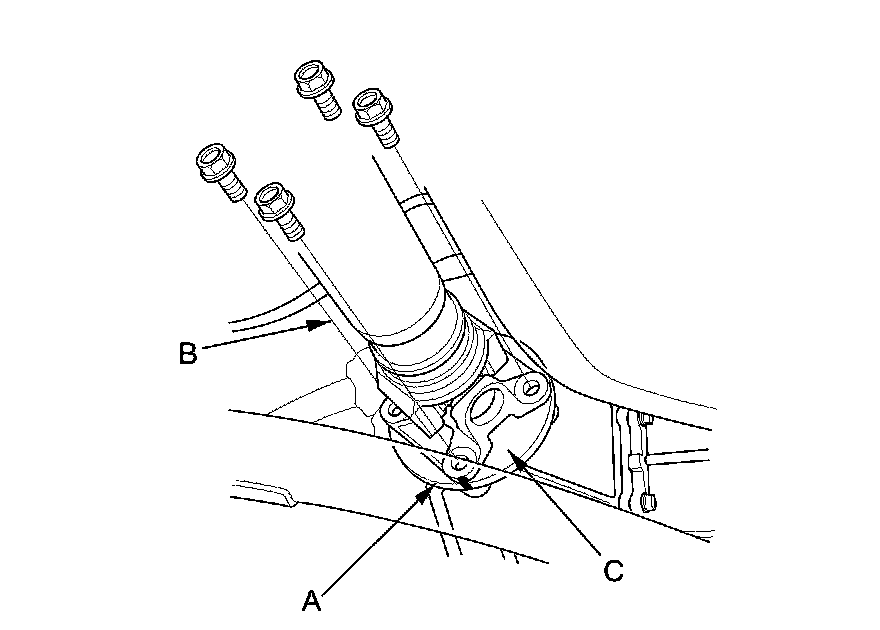

5. Make reference marks (A) across the propeller shaft (B) and the rear differential companion flange (C). Separate the propeller shaft from the rear differential.

NOTE: Suspend the propeller shaft with an appropriate size nylon strap.

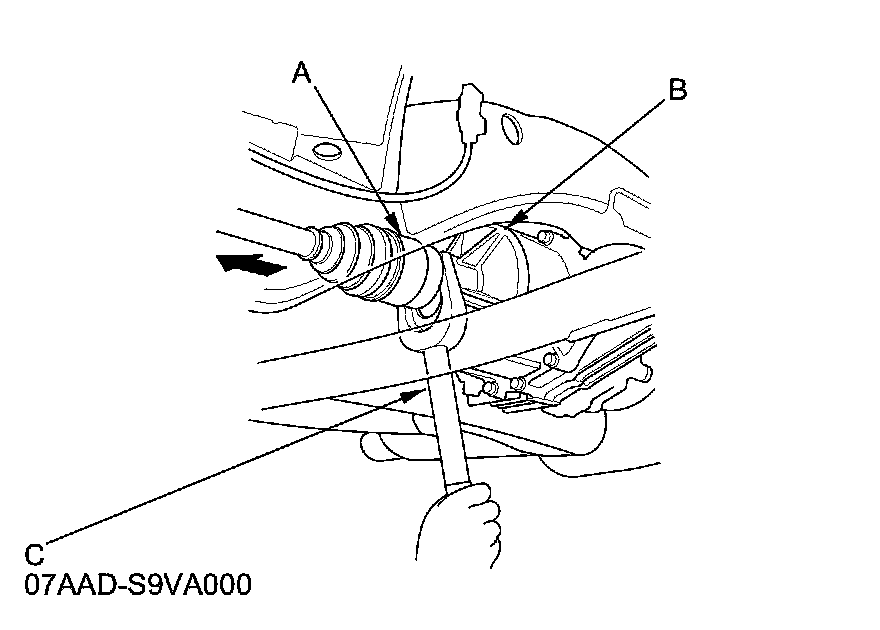

6. Disconnect the right rear driveshaft inboard joint (A) from the rear differential (B) using the driveshaft remover (C).

NOTE:

- This is a prying tool, do not strike it with a hammer.
- Suspend the left rear driveshaft with an appropriate size wire or nylon strap.

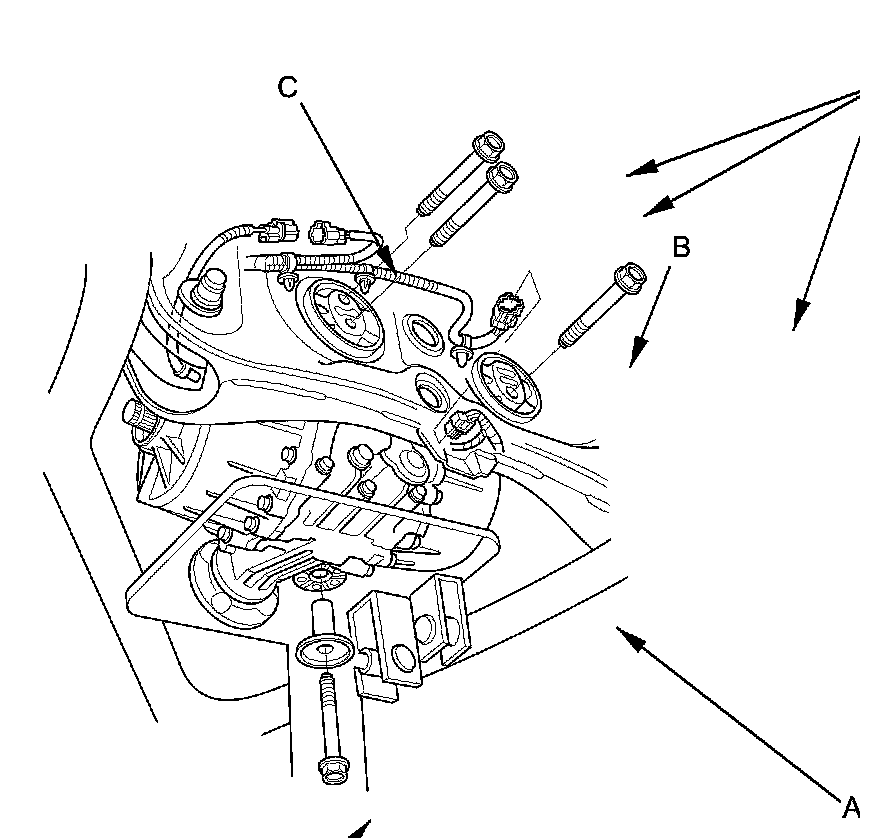

7. Place a transmission jack under the rear differential (A).





8. Disconnect the 6P connector (B) and the 2P connector (C), then remove the mounting bolts (D) and the stopper (E).

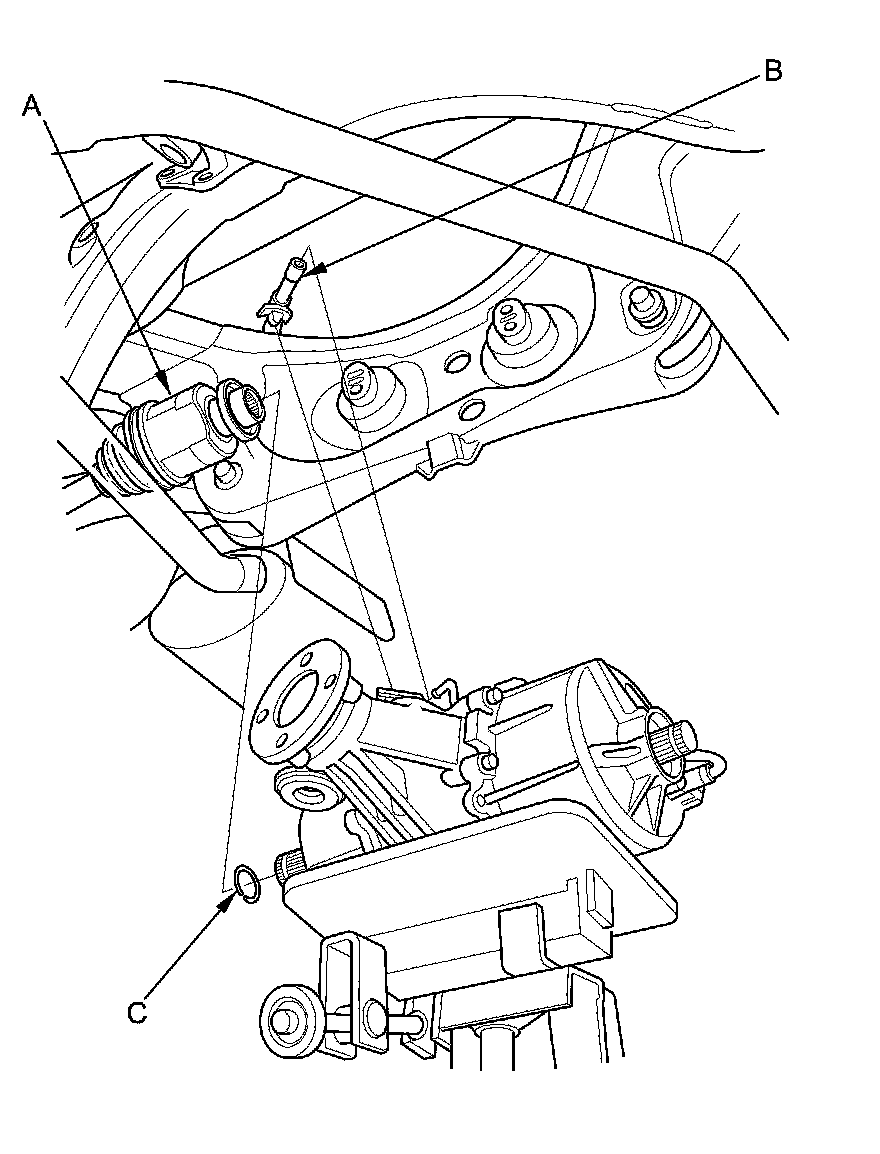

9. Lower the rear differential a little on the transmission jack, then separate the right rear driveshaft inboard joint (A) from the rear differential.





10. Disconnect the breather hose (B) from the rear differential.

11. Lower the rear differential on the transmission jack, then remove the set ring (C) from the rear differential right side.
