The VTM-4 Lock Indicator Does Not Come On When The VTM-4 Lock Button Is Pressed
VTM-4 System Symptom Troubleshooting - The VTM-4 LOCK indicator does not come on when the VTM-4 LOCK button is pressed
The VTM-4 LOCK indicator does not come on when the VTM-4 LOCK button is pressed
NOTE:
- Before you troubleshoot, review the general troubleshooting information Initial Inspection and Diagnostic Overview.
- The VTM-4 LOCK indicator will only come on when the engine is running and the shift lever is in R, 1, or 2 before the VTM-4 LOCK button is pressed.
1. Check the No. 1 (7.5 A) and No. 10 (7.5 A) fuses in the under-dash fuse/relay box.
Are the fuses OK?
YES -
Go to step 2.
NO -
Replace the fuses, and recheck.�
2. Turn the ignition switch to ON (II).
3. Check the VTM-4 LOCK indicator.
Does the VTM-4 LOCK indicator come on , and does it go off about 4 seconds later?
YES -
Go to step 4.
NO -
Go to step 14.
4. Start the engine, and move the shift lever to R, 1, and 2.
5. Check the VTM-4 LOCK indicator.
Does the VTM-4 LOCK indicator come on when the VTM-4 LOCK button is pressed?
YES -
Intermittent failure, the system is OK at this time.�
NO -
Go to step 6.
6. Make sure the HDS communicates with the vehicle and the VTM-4 control unit. If it doesn't, troubleshoot the DLC circuit Testing and Inspection.
7. Check for DTCs in the A/T system with the HDS.
Are there any A/T DTC's indicated?
YES -
Go to the indicated DTC's troubleshooting.�
NO -
Go to step 8.
8. Turn the ignition switch to LOCK (0).
9. Disconnect VTM-4 control unit connector A (22P).
10. Turn the ignition switch to ON (II).

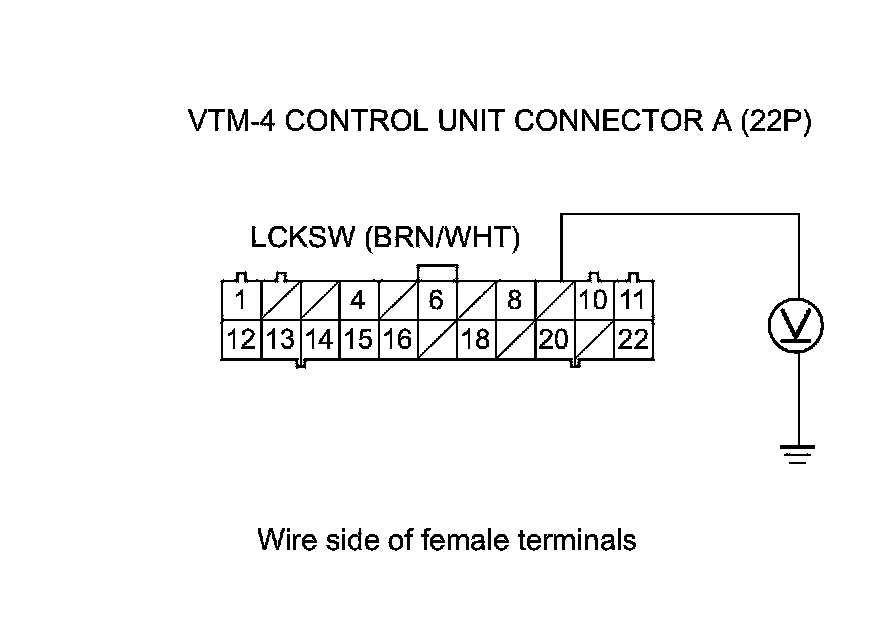

11. Measure the voltage between VTM-4 control unit connector terminal A8 and body ground.
Is there battery voltage when the VTM-4 LOCK button is pressed?
YES -
Check for poor connections or loose terminals at the VTM-4 control unit connectors. If the connections are OK, substitute a known-good VTM-4 control unit Service and Repair, and recheck. If the symptom/indication goes away with the known-good VTM-4 control unit, replace the original VTM-4 control unit Service and Repair.�
NO -
Go to step 12.
12. Turn the ignition switch to LOCK (0).
13. Test the VTM-4 LOCK switch Service and Repair.
Is the VTM-4 LOCK switch OK?
YES -
Repair an open in the wire between the VTM-4 LOCK switch and the VTM-4 control unit.�
NO -
Replace the VTM-4 LOCK switch Service and Repair.�
14. Disconnect VTM-4 control unit connector A (22P).

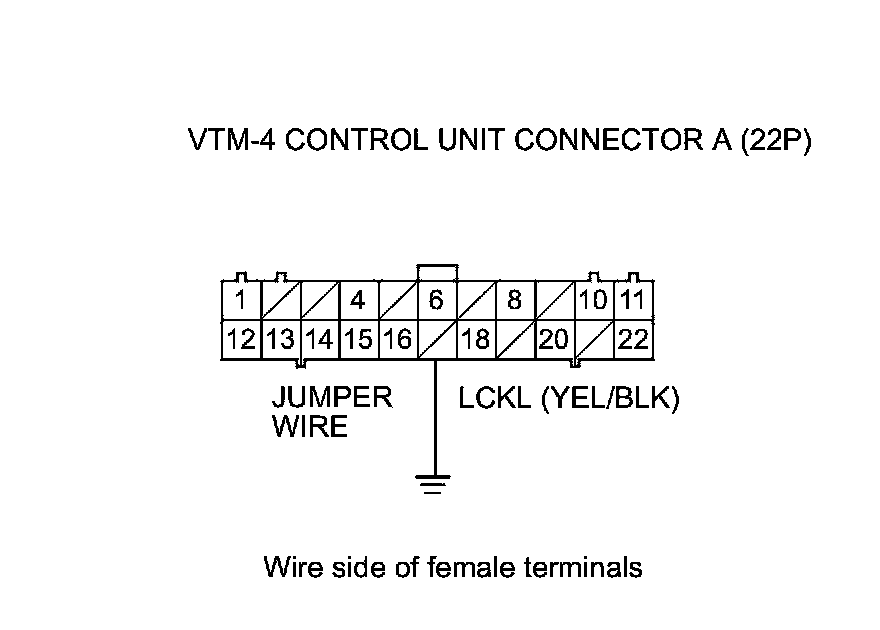

15. Connect VTM-4 control unit connector terminal A16 to body ground with a jumper wire.
16. Check the VTM-4 LOCK indicator.
Does the VTM-4 LOCK indicator come on?
YES -
Check for poor connections or loose terminals at the VTM-4 control unit connectors. If the connections are OK, substitute a known-good VTM-4 control unit Service and Repair, and recheck. If the symptom/indication goes away with the known-good VTM-4 control unit, replace the original VTM-4 control unit Service and Repair.�
NO -
Go to step 17.
17. Turn the ignition switch to LOCK (0).
18. Remove the jumper wire.
19. Disconnect the VTM-4 LOCK switch 5P connector.

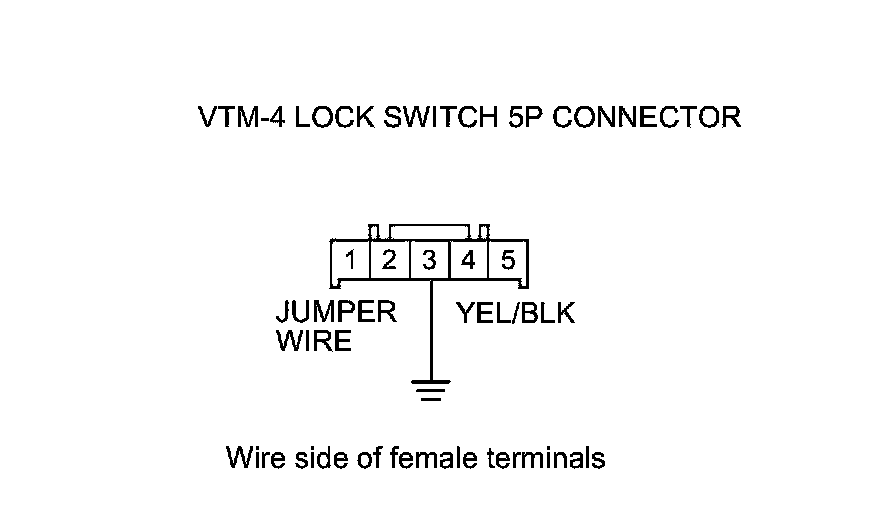

20. Connect VTM-4 LOCK switch 5P connector terminal No. 3 to body ground with a jumper wire.

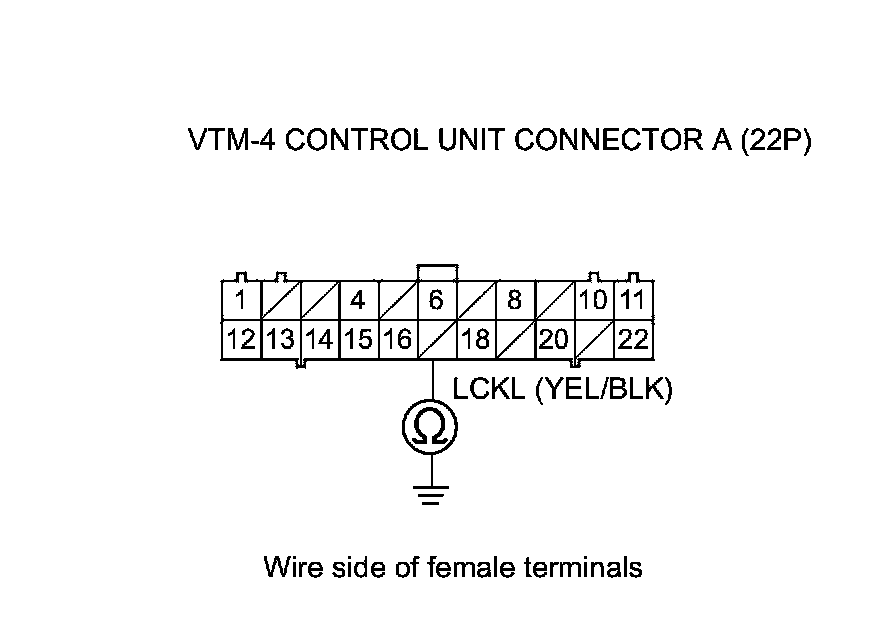

21. Check for continuity between VTM-4 control unit connector terminal A16 and body ground.
Is there continuity?
YES -
Go to step 22.
NO -
Repair an open in the wire between VTM-4 control unit connector terminal A16 and the VTM-4 LOCK switch 5P connector.�
22. Remove the jumper wire.
23. Turn the ignition switch to ON (II).

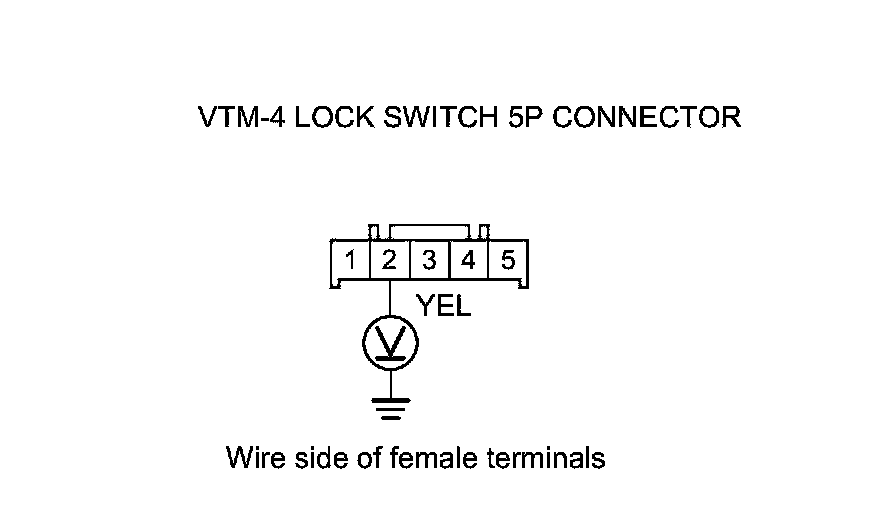

24. Measure the voltage between VTM-4 LOCK switch 5P connector terminal No. 2 and body ground.
Is there battery voltage?
YES -
Replace the VTM-4 LOCK indicator bulb.�
NO -
Repair an open in the wire between VTM-4 LOCK switch 5P connector terminal No. 2 and the under-dash fuse/relay box.�
