Transfer Assembly Disassembly (With VTM-4)

Transfer Assembly Disassembly

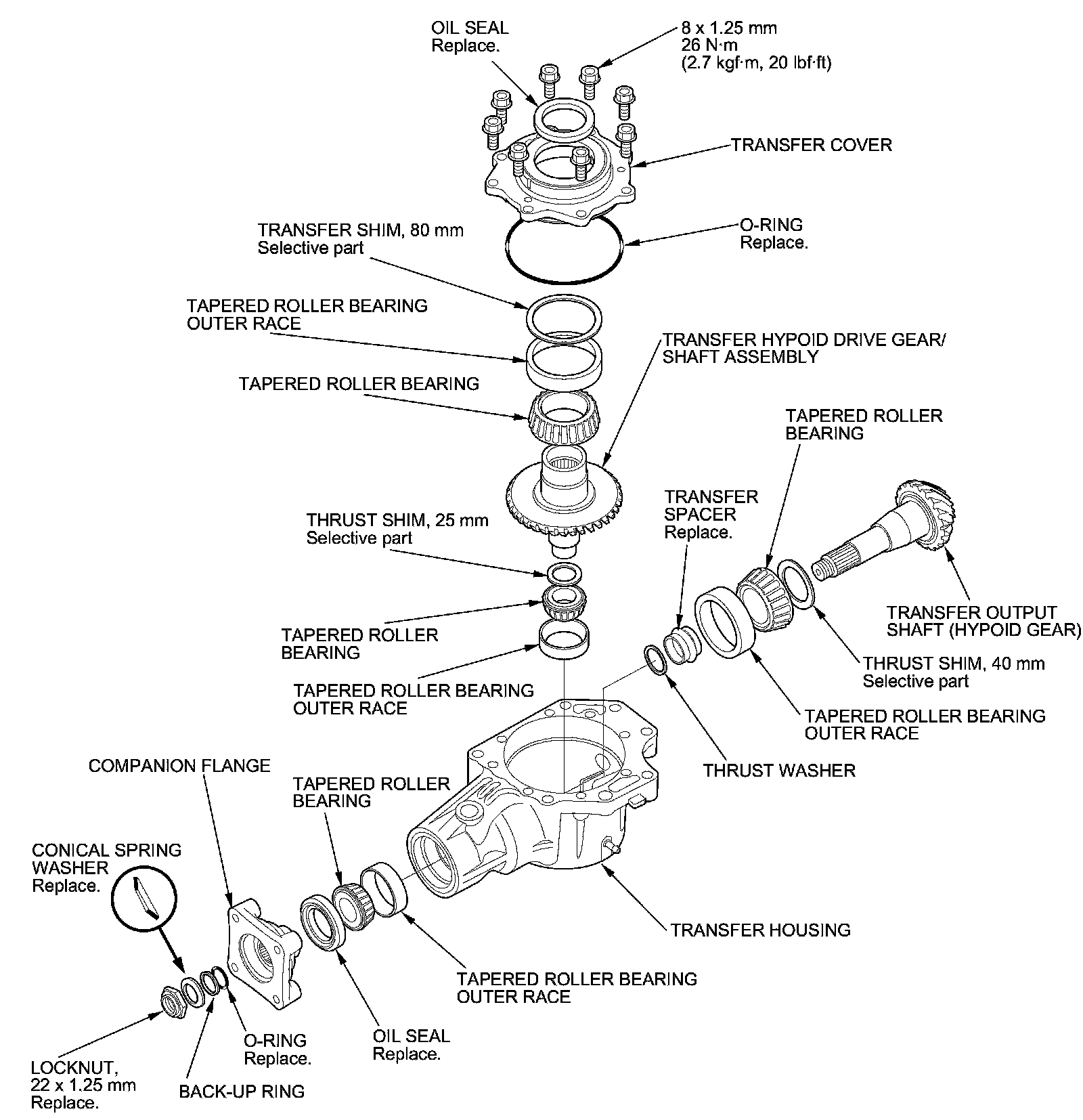

Exploded View





Special Tools Required

- Flange Holder 07XAB-001A101

NOTE: To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and a vise.

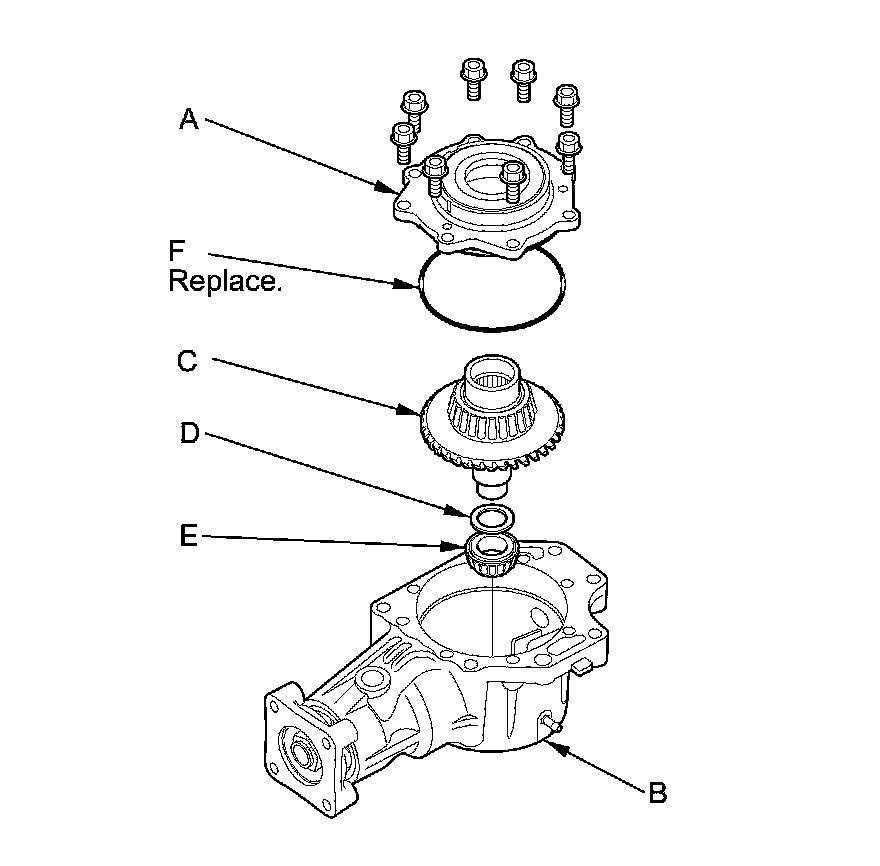

1. Remove the transfer cover (A) from the transfer housing (B).





2. Remove the transfer hypoid drive gear/shaft assembly (C), 25 mm thrust shim (D), and the tapered roller bearing (E).

3. Remove the O-ring (F) from the transfer cover.

4. Drain the transfer fluid (hypoid gear oil) from the transfer housing.

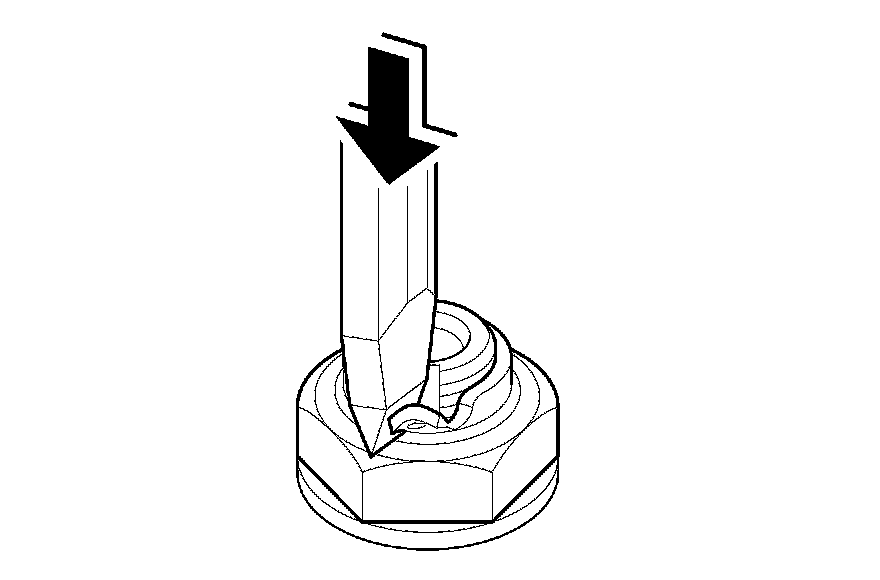

5. Cut the lock tab on the locknut using a chisel.

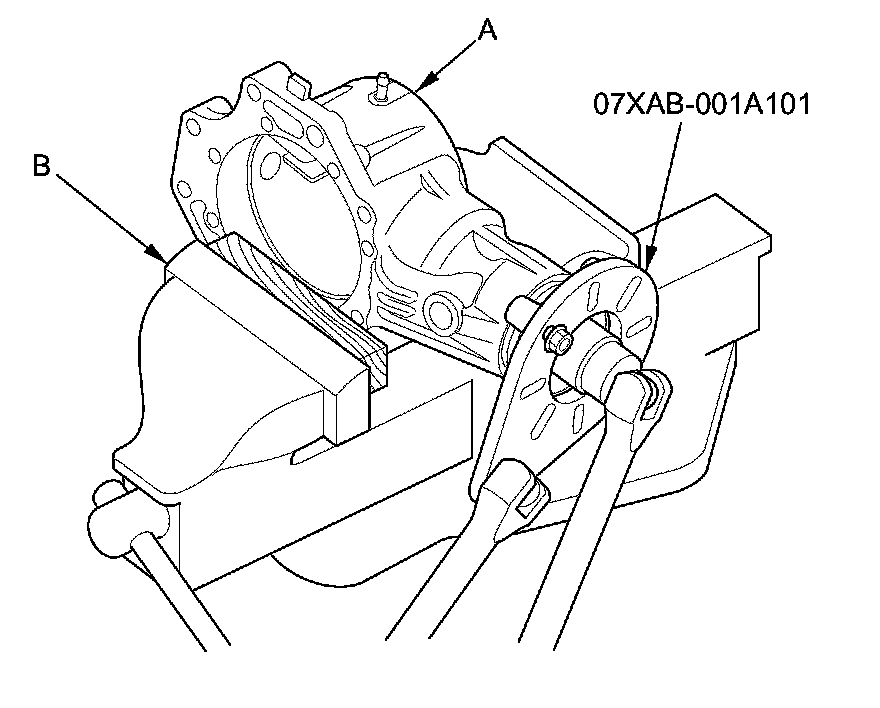

6. Secure the transfer housing (A) in a bench vise (B) with soft jaws.





7. Install the flange holder on the companion flange, then loosen the locknut.

8. Remove the flange holder.

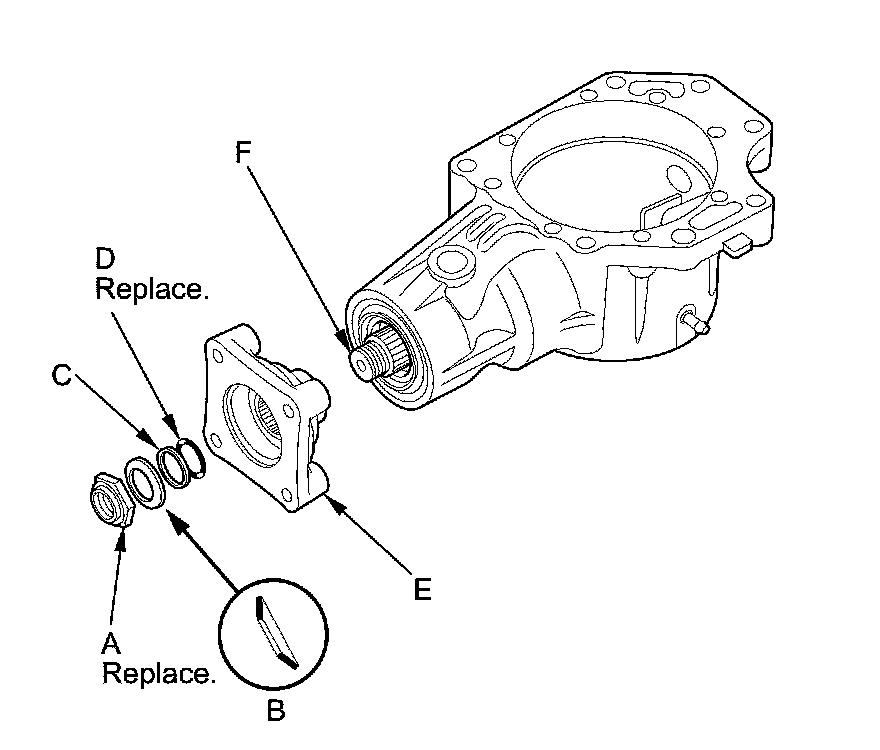

9. Remove the locknut (A), the conical spring washer (B), the back-up ring (C), the O-ring (D), and the companion flange (E) from the transfer output shaft (hypoid gear) (F).

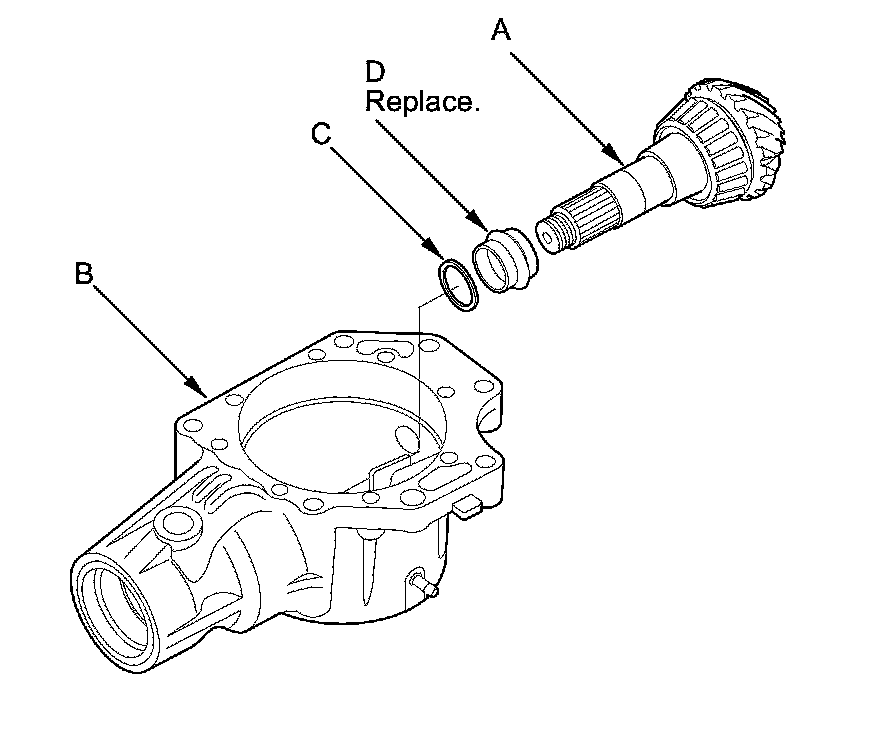

10. Remove the transfer output shaft (hypoid gear) (A) from the transfer housing (B), then remove the thrust washer (C) and the transfer spacer (D) from the transfer output shaft (hypoid gear).

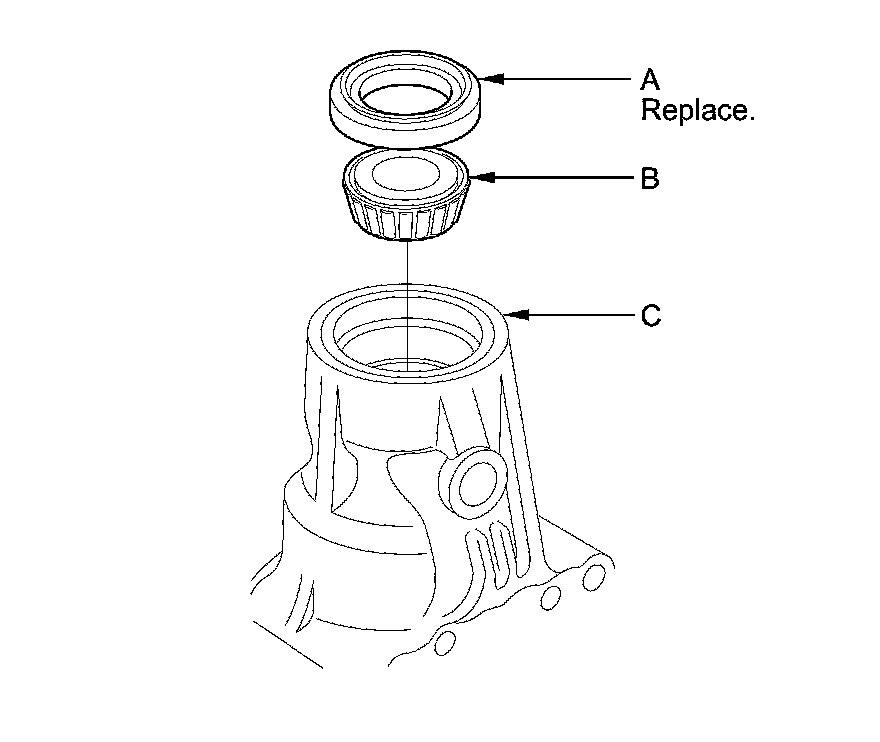

11. Remove the oil seal (A) and the tapered roller bearing (B) from the transfer housing (C).
