Transfer Cover Oil Seal Replacement (With VTM-4)

Transfer Cover Oil Seal Replacement

Special Tools Required

- Attachment, 65 mm 07JAD-SH30100
- Driver Handle, 15 x 135L 07749-0010000

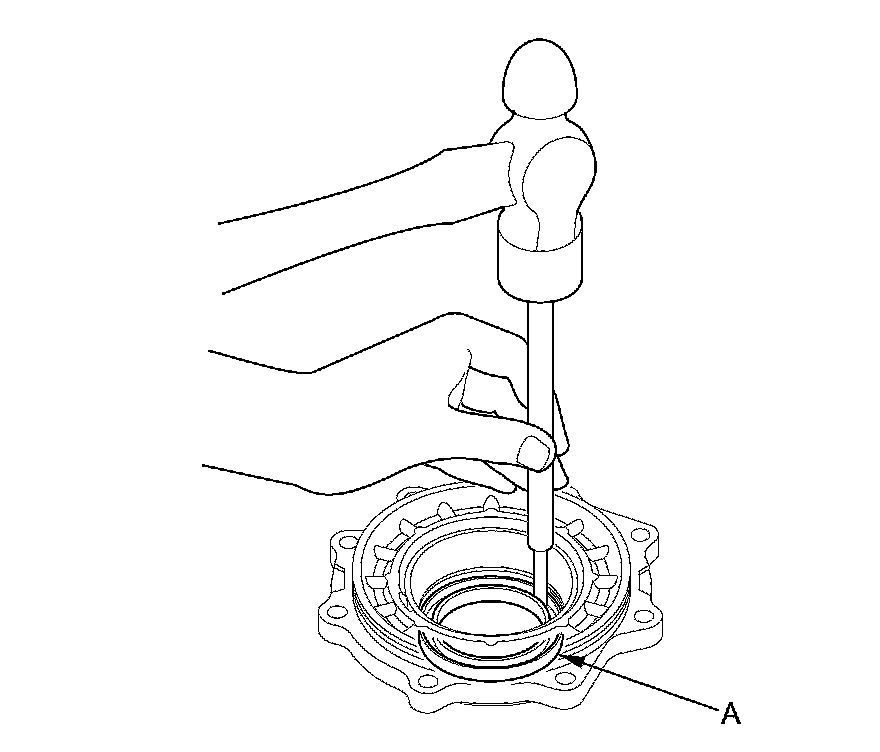

1. Remove the oil seal (A) from the transfer cover.

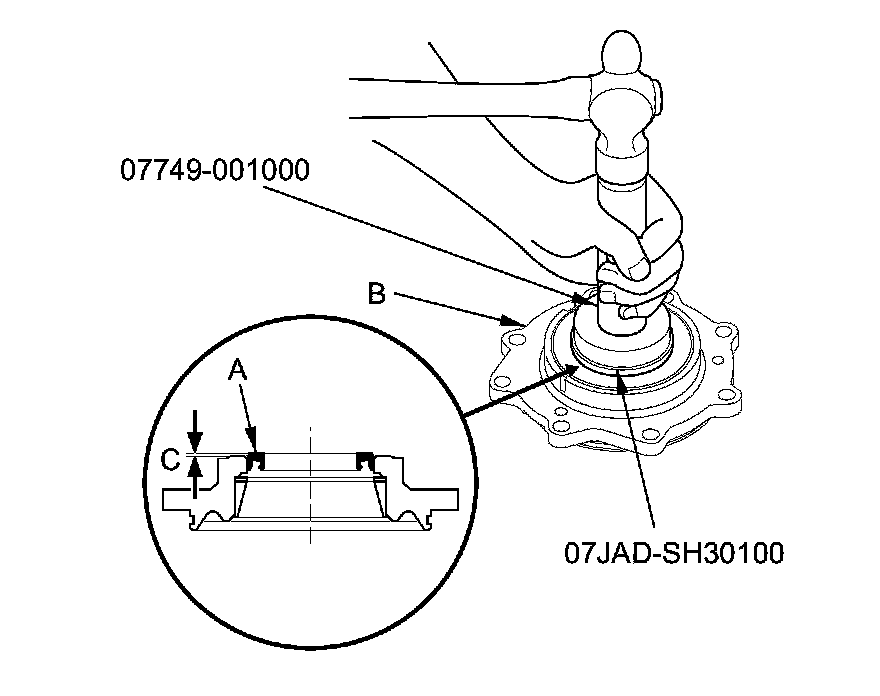

2. Install a new oil seal (A) in the transfer cover (B) to a height (C) of 0-1 mm (0-0.04 in) above the transfer cover surface using the driver handle and the 65 mm attachment.
