Power Window Master Switch (Door Multiplex Control Unit) Input Test




Power Window Master Switch (Door Multiplex Control Unit) Input Test

NOTE: Before testing, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A Troubleshooting - B-CAN System Diagnosis Test Mode A.

1. Turn the ignition switch to LOCK (0), and remove the power window master switch Power Window Master Switch Replacement.

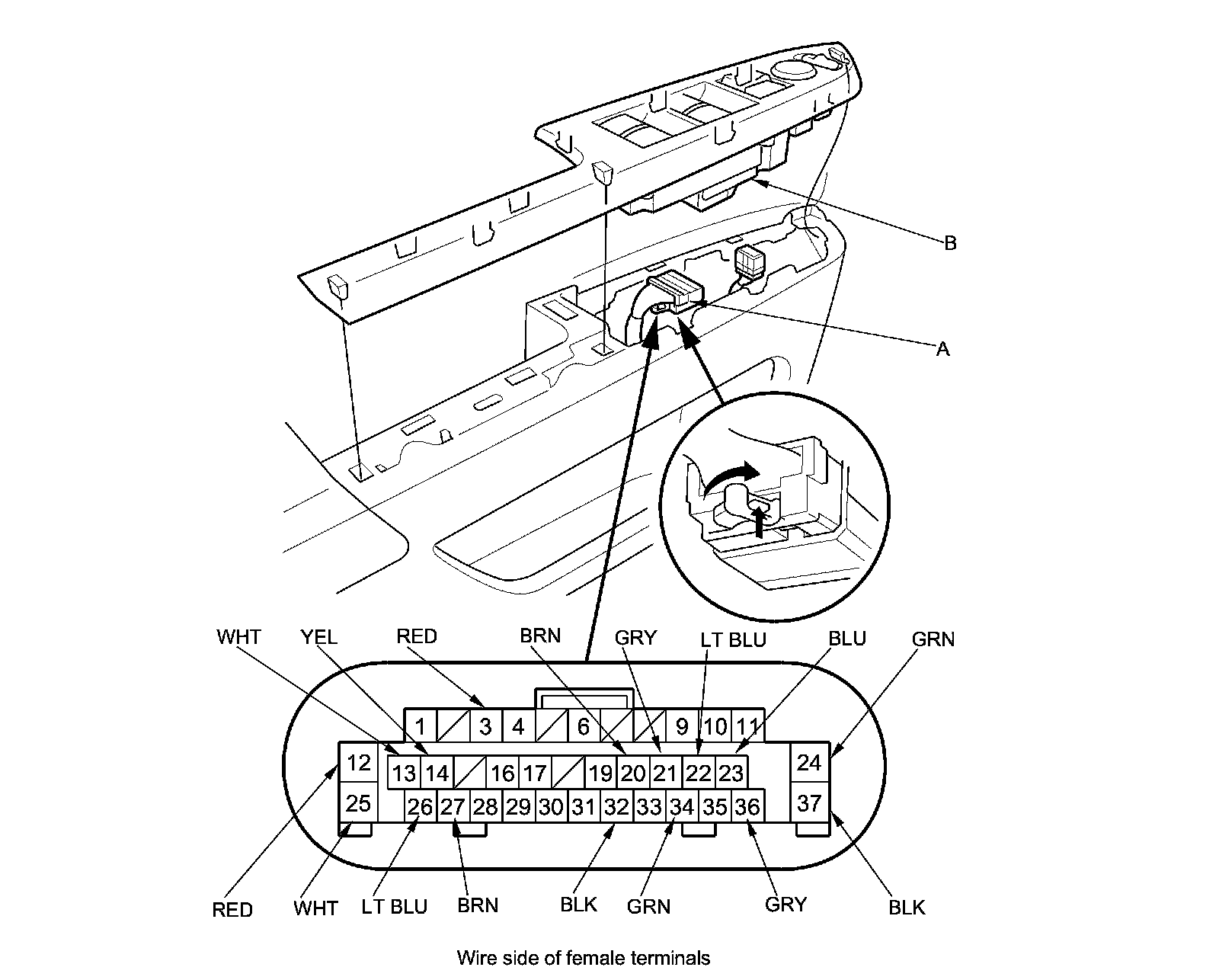

2. Disconnect the 37P connector (A) from the power window master switch (B).





3. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose, or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 4.

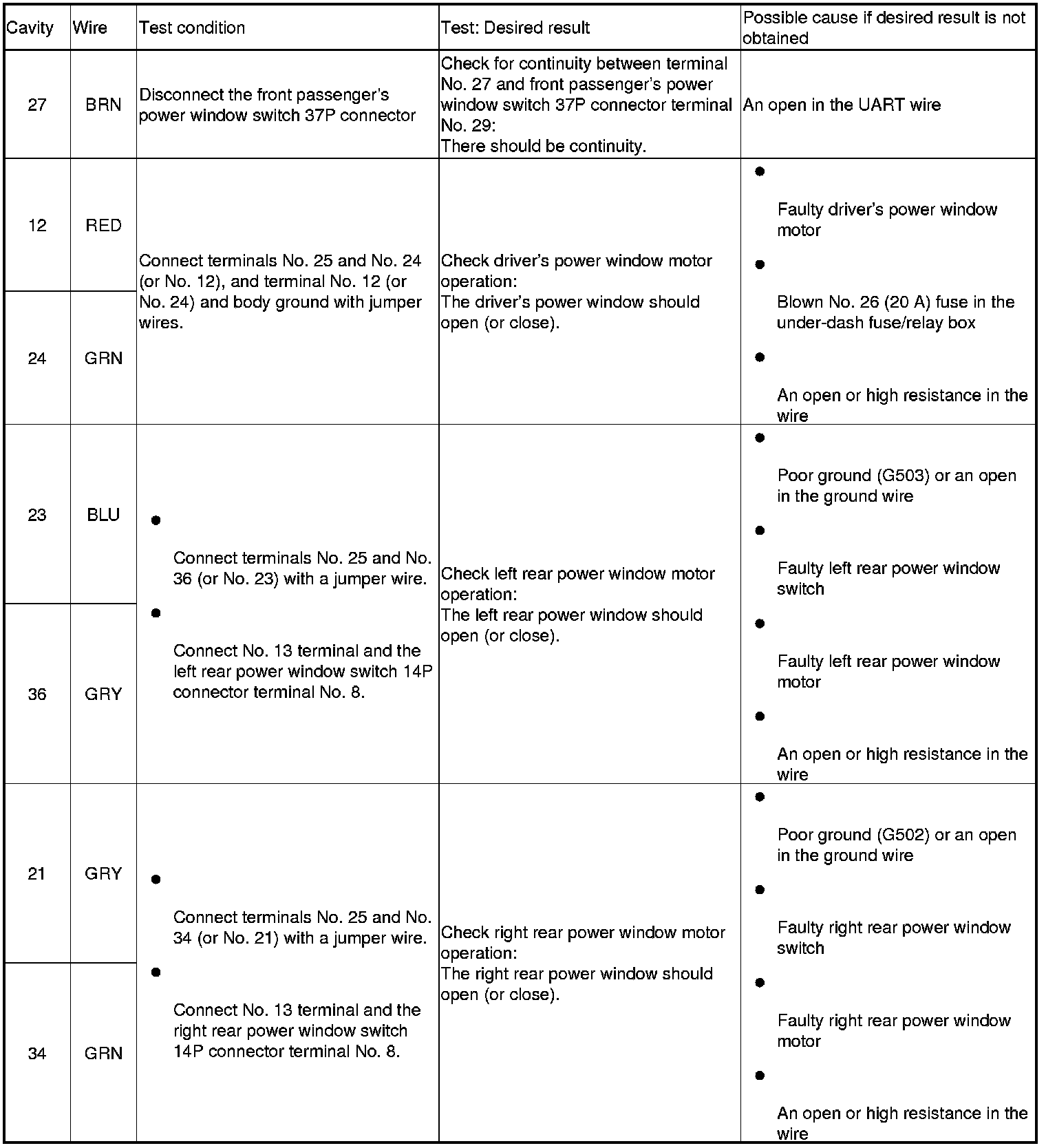

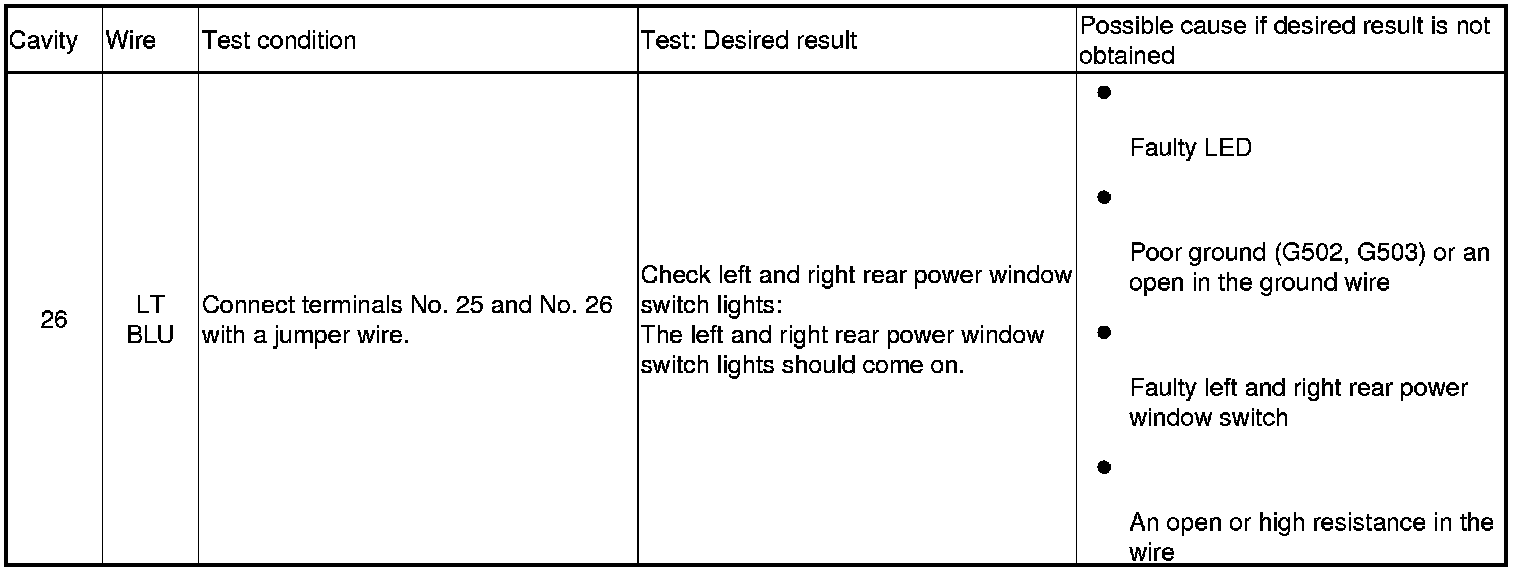

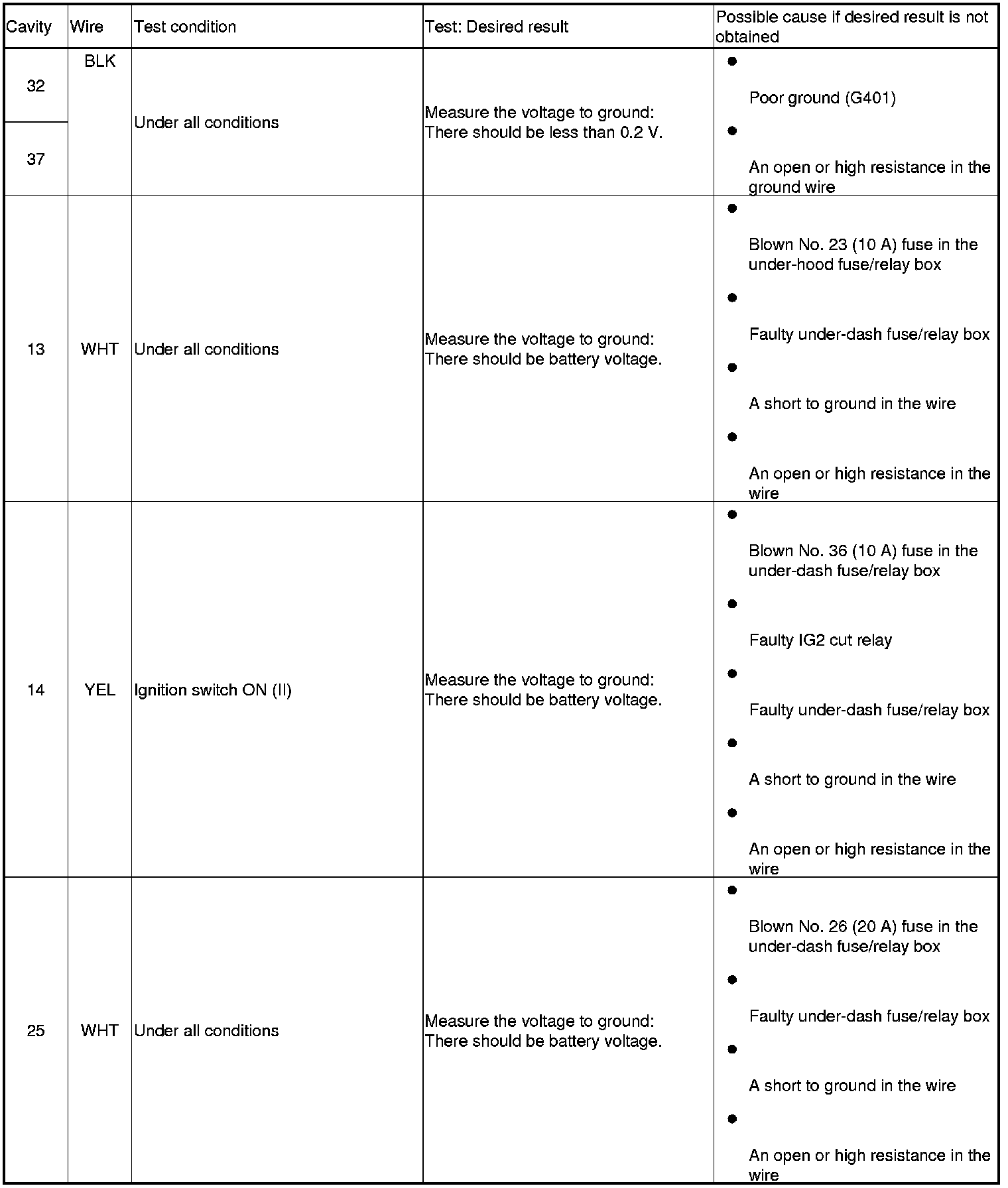

4. With the door multiplex control unit 37P connector still disconnected from the power window master switch, do the following input tests.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.

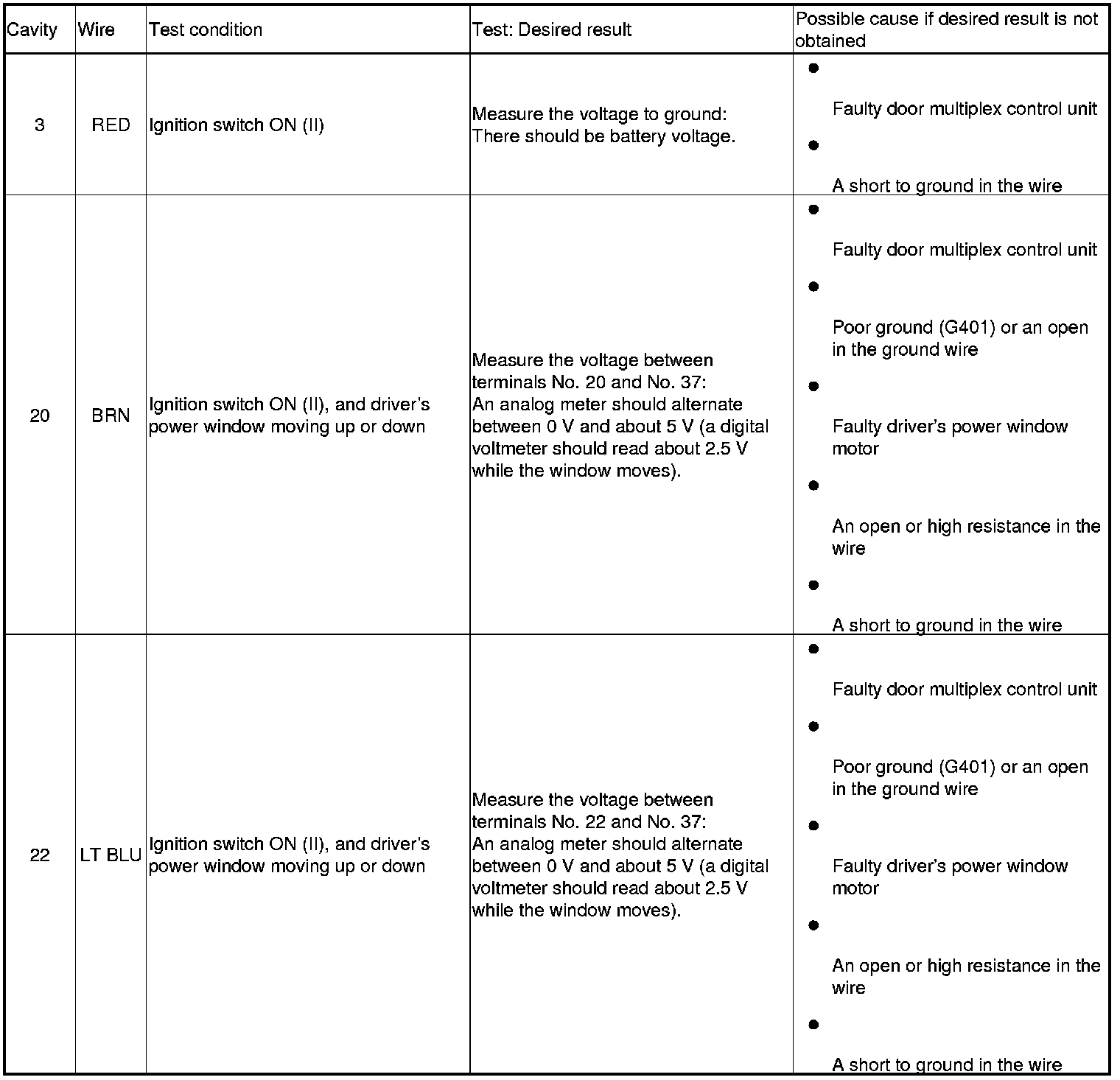

5. Reconnect the connector to the door multiplex control unit, turn the ignition switch to ON (II), and do the following input tests.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the door multiplex control unit is faulty; replace the power window master switch Power Window Master Switch Replacement.

NOTE: If you replace the power window master switch, reset the power window control unit Testing and Inspection.
