Front Door Window Glass Weatherstrip: Service and Repair

Front Door Glass Outer Weatherstrip Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

- If you remove the door glass outer weatherstrip, replace it with a new one because it will bend.
- Put on gloves to protect your hands.
- Take care not to scratch the door.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the power mirror Power Mirror Replacement.

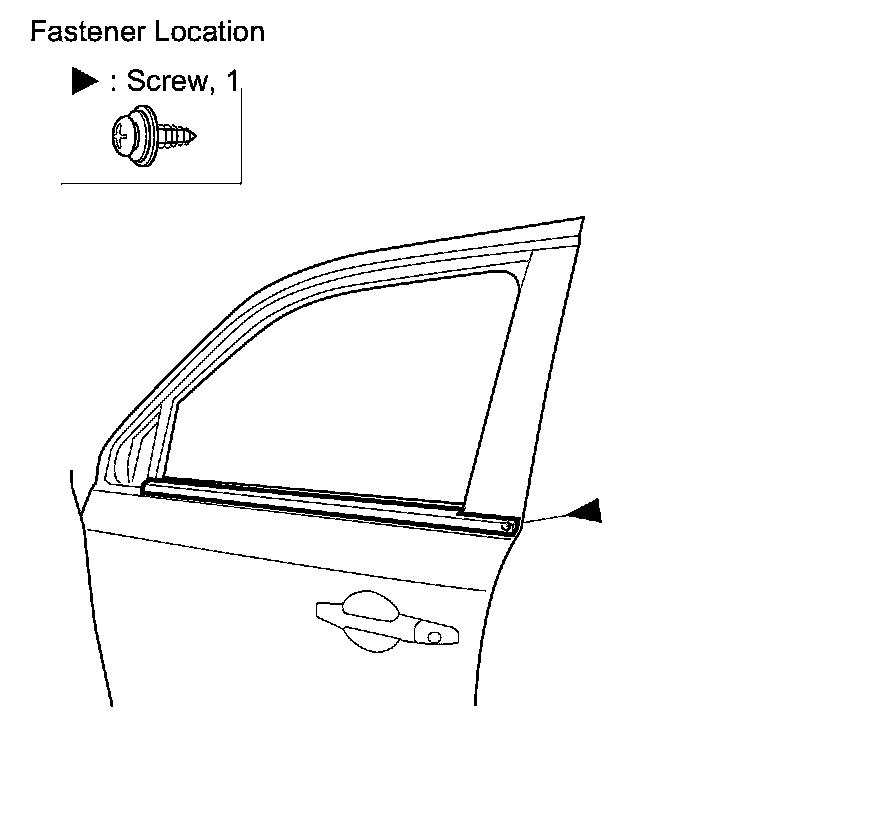

2. Remove the screw from the rear edge of the door.

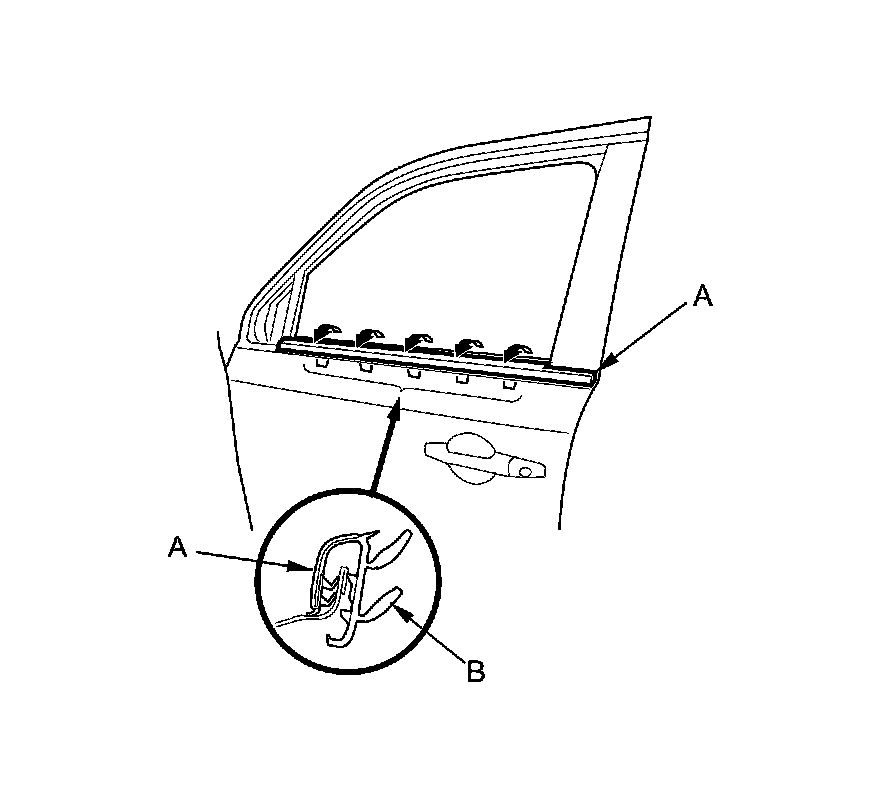

3. Starting at the rear, pull the door glass outer weatherstrip (A) up at each portion where the inner molding (B) catches the inside edge of the window slot.

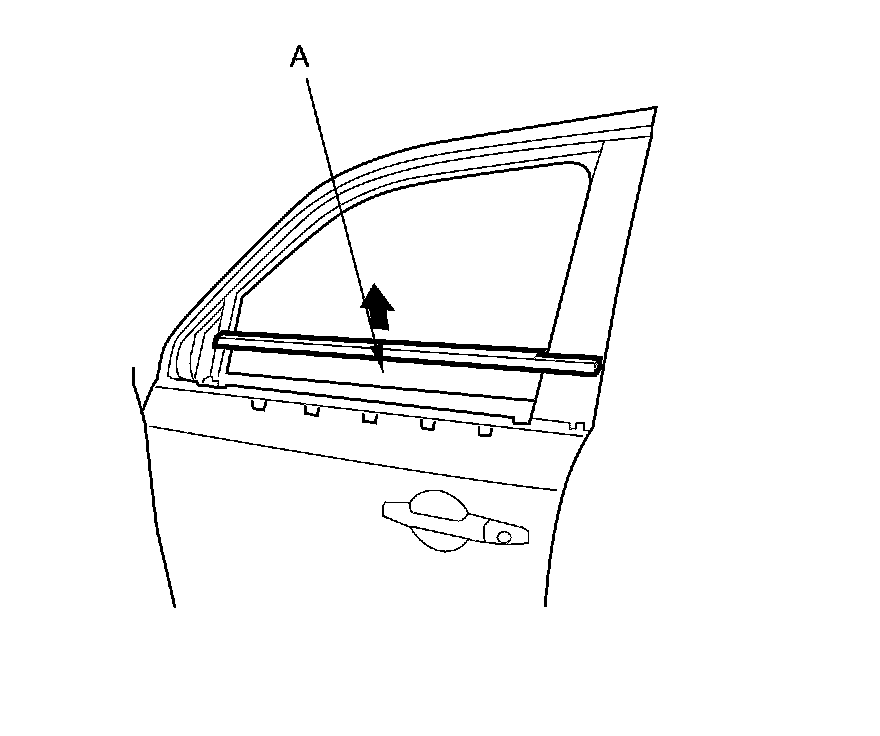

4. Pull the glass outer weatherstrip (A) away from the door.





5. Install the new weatherstrip in the reverse order of removal.
