Rear Window Wiper System Description

Rear Window Wiper System Description

Intermittent operation

Rear window wiper switch ON: The wiper operates every 7 seconds after completing two sweeps.

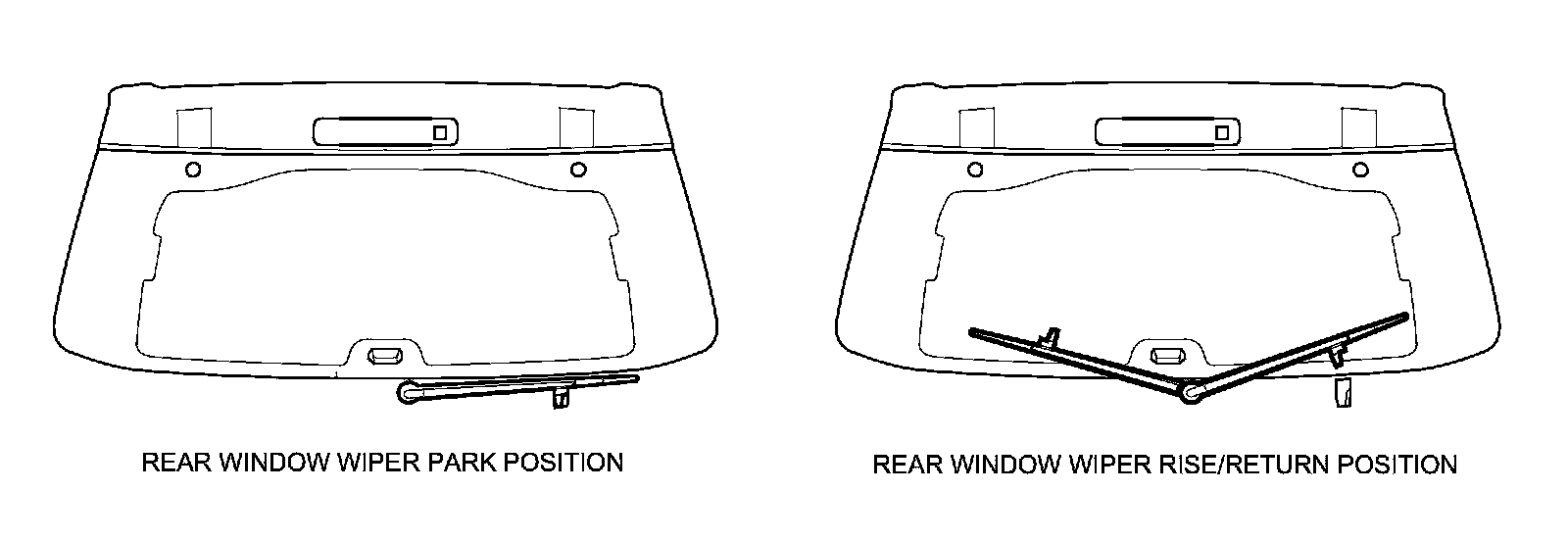

Rear window wiper switch OFF: The wiper returns to the park position.






Washer/Wiper combined system

Rear window wiper switch ON: The wiper operates continuously while the washer switch is ON.

Rear window wiper switch OFF: After switching OFF the washer switch, the wiper returns to the park position after completing two sweeps.

Failsafe Function

Lock Function: The rear window wiper will not operate if the hatch glass is open.

Emergency Stop Function: If the hatch glass is opened while the rear window wiper is operating, it will automatically stop.

Automatic Park Function: If the ignition switch is turned to LOCK (0) while the rear window wiper is operating, the wiper will return to the park position.

Glass Hatch Access Function

If the hatch glass button is pressed and the wiper is ON, the rear wiper will automatically park. After the hatch glass is closed, the rear wiper will start again.
