Manufacturer Code Charts: 113

VSA DTC Troubleshooting: 113

DTC 113:

Yaw Rate-Lateral Acceleration Sensor (Power Supply)

1. Disconnect the yaw rate-lateral acceleration sensor 4P connector Service and Repair.

2. Turn the ignition switch to ON (II).

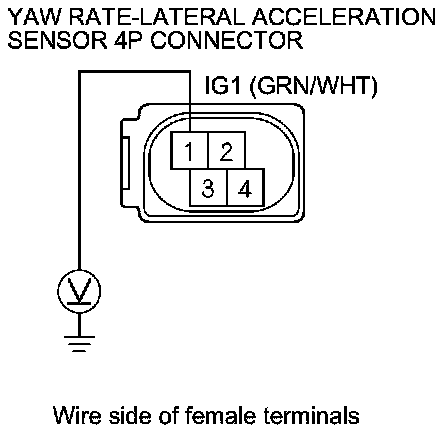

3. Measure the voltage between body ground and yaw rate-lateral acceleration sensor 4P connector terminal No. 1.





Is there battery voltage?

YES -

Go to step 4.

NO -

Repair an open or high resistance in the wire between the No. 31 (7.5 A) fuse in the under-dash fuse/relay box and the yaw rate-lateral acceleration sensor.�

4. Turn the ignition switch to LOCK (0).

5. Reconnect the yaw rate-lateral acceleration sensor 4P connector.

6. Turn the ignition switch to ON (II).

7. Clear the DTCs with the HDS.

8. Turn the ignition switch to LOCK (0) and then back to ON (II).

9. Check for DTCs with the HDS.

Is DTC 113 indicated?

YES -

Check for loose terminal in the yaw rate-lateral acceleration 4P connector. If the connection is good, replace the VSA modulator-control unit Service and Repair.�

NO -

Intermittent failure, the system is OK at this time. Check for loose terminals at the yaw rate-lateral acceleration sensor 4P connector. Refer to intermittent failures troubleshooting.�
