62-2x

SRS DTC Troubleshooting: 62-2x

DTC 62-2x ("x" can be 0 thru 9 or A thru F):

Short in the Front Passenger's Seat Belt Buckle Switch

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures Service and Repair, General Troubleshooting Information Reading and Clearing Diagnostic Trouble Codes, and Battery Terminal Disconnection and Reconnection Procedures.

1. Clear the DTCs with the HDS.

2. Turn the ignition switch to LOCK (0), then wait for 10 seconds.

3. Turn the ignition switch to ON (II), then buckle and unbuckle the front passenger's seat belt several times.

4. Check for DTCs with the HDS.

Is DTC 62-2x indicated?

YES -

Go to step 5.

NO -

Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC. �

5. Turn the ignition switch to LOCK (0).

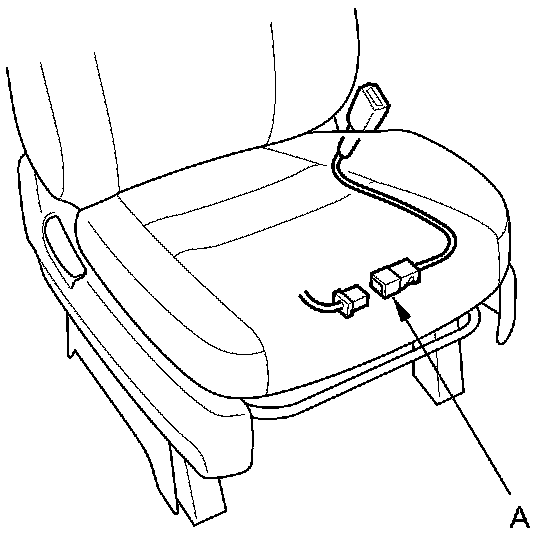

6. Disconnect the front passenger's seat wire harness 3P connector from the front passenger's seat belt buckle switch 3P connector (A).





7. Turn the ignition switch to ON (II).

8. From the HDS Main Menu, select SRS, then PARAMETER INFORMATION. In the PARAMETER INFORMATION Menu, select Buckle Switch, Seat Position Sensor and check the status on the HDS screen for FRONT RIGHT SEAT BELT BUCKLE SWITCH.

Is OPEN indicated on the HDS?

YES -

Replace the front passenger's seat belt buckle assembly, then clear the DTC.�

NO -

Go to step 9.

9. Turn the ignition switch to LOCK (0).

10. Disconnect the negative cable from the battery, then wait for 3 minutes.

11. Disconnect SRS unit connector B (28P) from the SRS unit.

12. Measure the resistance between front passenger's seat wire harness 3P connector terminal No. 3 and body ground. There should be an open circuit or at least 1 MOhms.





Is the resistance as specified?

YES -

Go to step 13.

NO -

Short to ground in the floor wire harness or the front passenger's seat wire harness ; replace the faulty harness, then clear the DTC.�

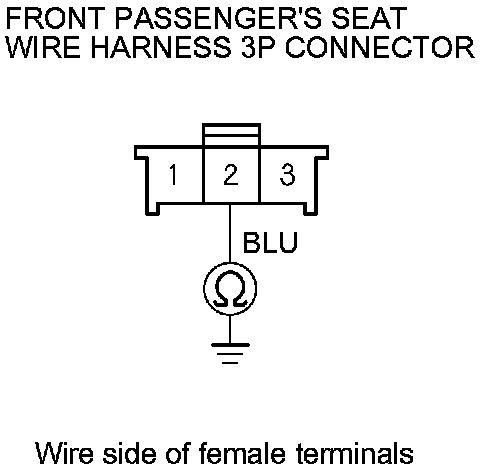

13. Measure the resistance between front passenger's seat wire harness 3P connector terminal No. 2 and body ground. There should be an open circuit or at least 1 MOhms.





Is there continuity?

YES -

Faulty SRS unit; Replace the SRS unit SRS Unit Replacement.�

NO -

Short to ground in the floor wire harness or the front passenger's seat wire harness; replace the faulty harness, then clear the DTC.�
