Home >> Honda Truck >> 2010 >> Ridgeline V6-3.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Description and Operation

Cellular Phone: Description and Operation

HandsFreeLink System Description

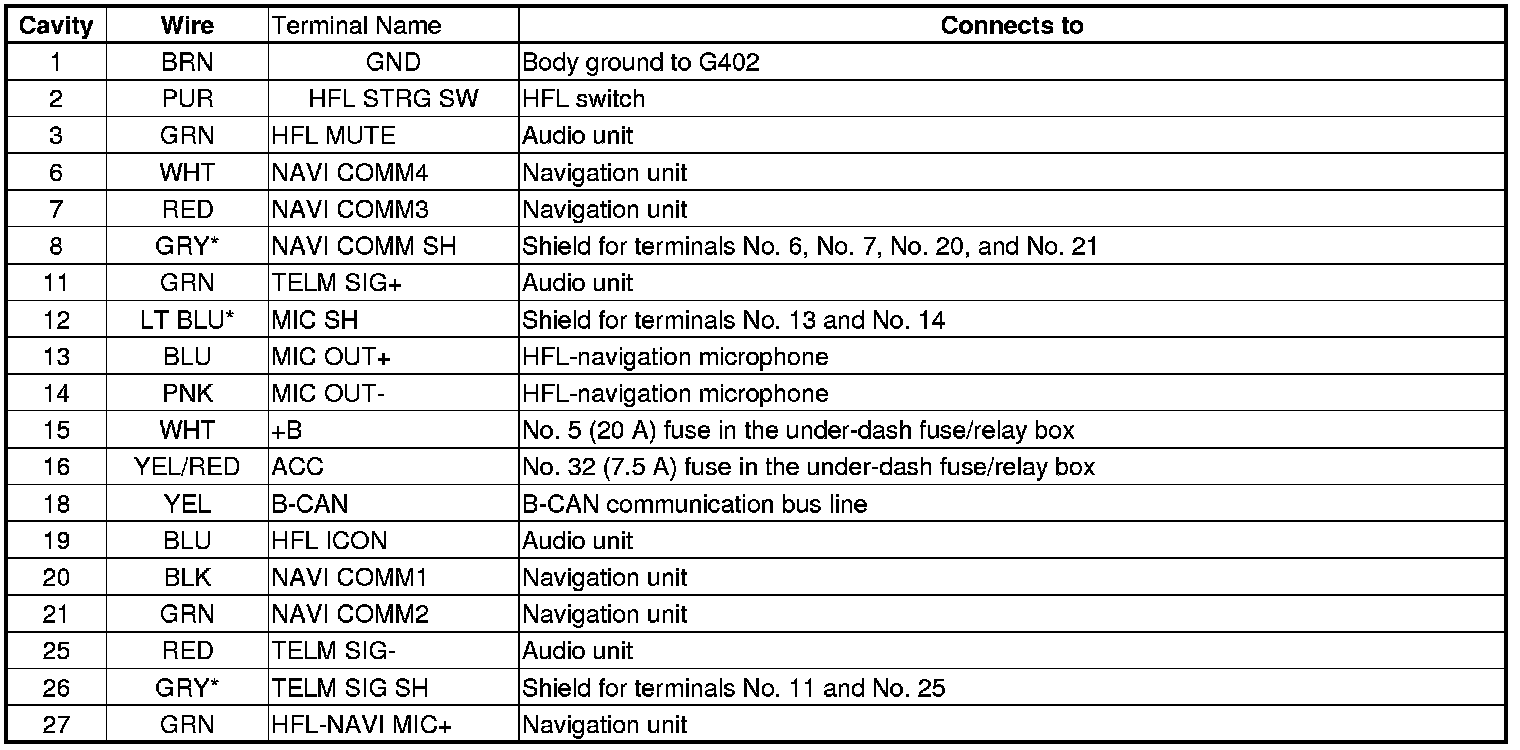

HandsFreeLink Control Unit Inputs and Outputs

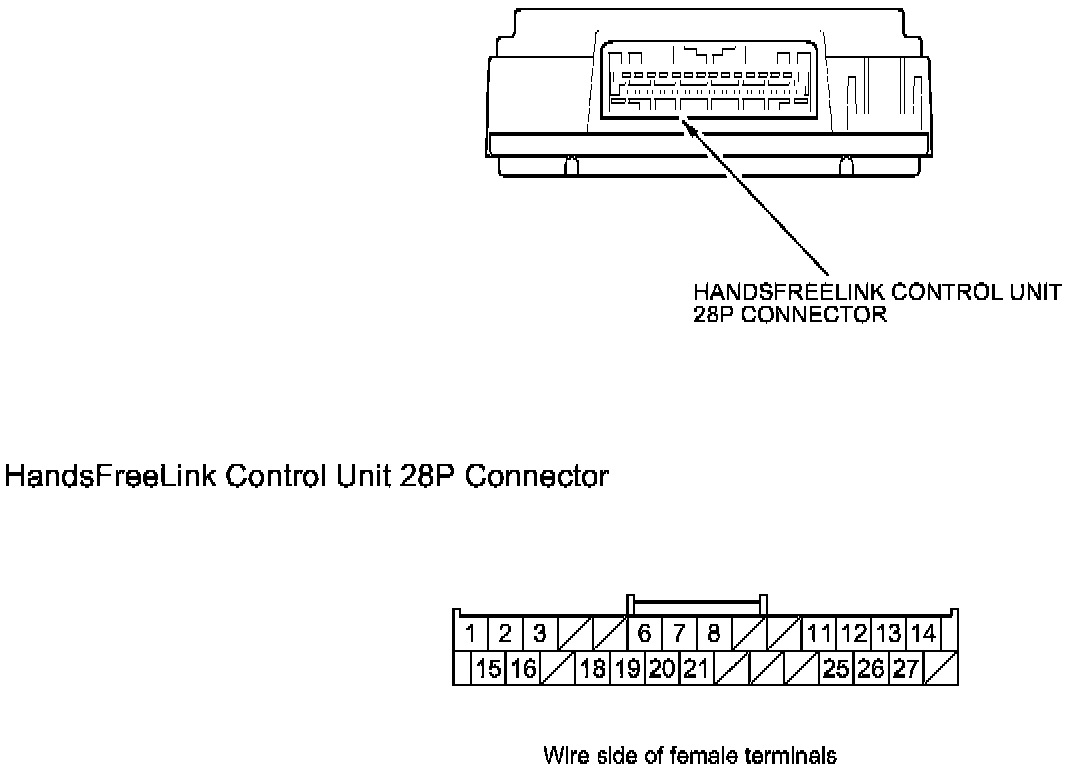

HandsFreeLink Control Unit 28P Connector
