The Bluetooth icon in the audio unit display is not displayed

1. Turn the ignition switch to LOCK (0).

2. Remove the audio unit Audio Unit Removal/Installation, and disconnect audio unit connector C (14P).

3. Disconnect the HandsFreeLink control unit 28P connector.

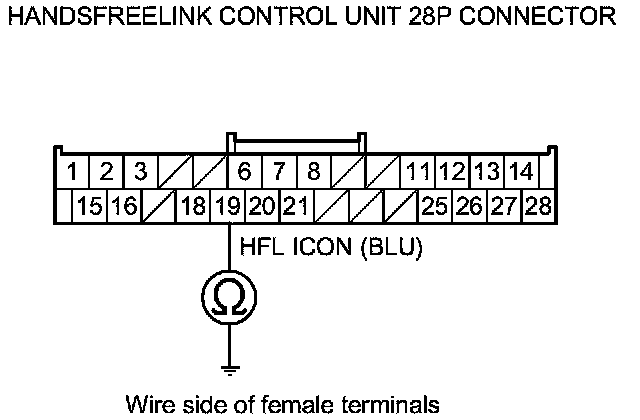

4. Check for continuity between HandsFreeLink control unit 28P connector terminal No. 19 and body ground.





Is there continuity?

YES -

Repair short to body ground in the wire between the HandsFreeLink control unit and audio unit.�

NO -

Go to step 5.

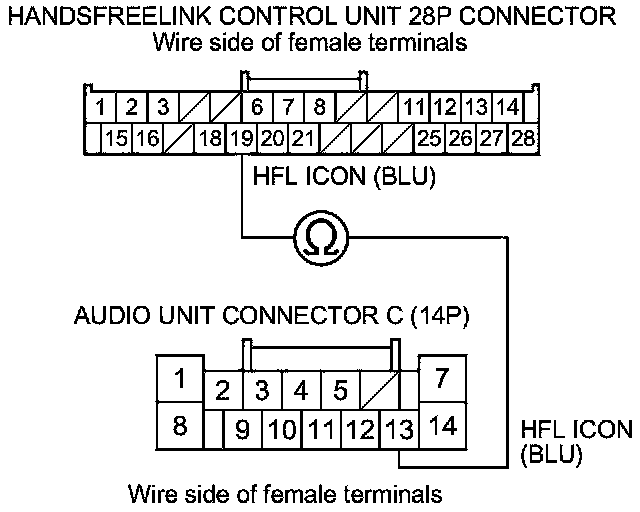

5. Check for continuity between HandsFreeLink control unit 28P connector terminal No. 19 and audio unit connector C (14P) terminal No. 13.





Is there continuity?

YES -

Substitute a known-good HandsFreeLink control unit Service and Repair, and recheck. If the symptom/indication goes away, replace the original HandsFreeLink control unit Service and Repair. If the symptom/indicate goes away, replace the audio unit Audio Unit Removal/Installation.�

NO -

Repair open in the wire between the HandsFreeLink control unit and the audio unit.�
