Auxiliary Input / Output Jack: Service and Repair

Auxiliary Jack Assembly Replacement

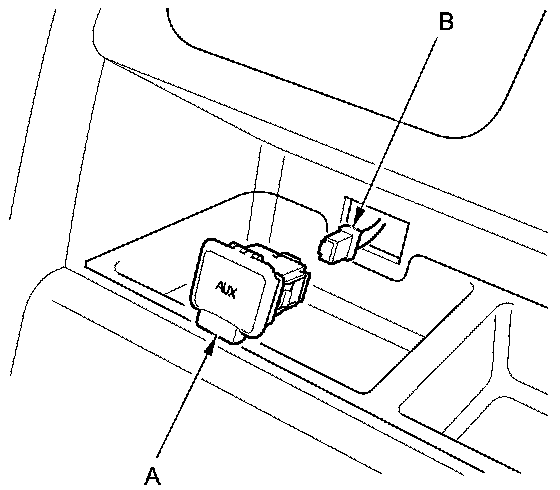

1. Carefully pull out the auxiliary jack assembly (A), then disconnect the 5P connector (B).





2. Install the auxiliary jack assembly in the reverse order of removal.
