Navigation Display: Service and Repair

Navigation Display Unit Removal/Installation

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair, in the SRS section before doing repairs or service.

1. Remove the audio disc changer Service and Repair.

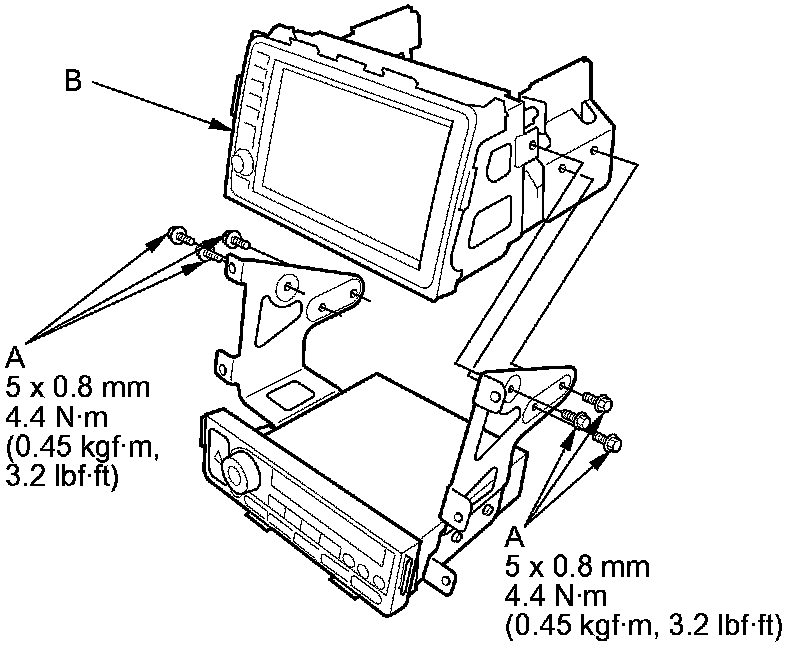

2. Remove the bolts (A) and the navigation display unit (B).





3. Install the navigation display in the reverse order of removal.
