Part One
Navigation System Diagnostic Mode
Start-Up procedure and Diagnosis Menu
There are two ways to enter the diagnostic mode:
Mode 1:
Start the vehicle, and at the disclaimer screen, press and hold the 3 buttons MENU, MAP/GUIDE, and CANCEL, for about 5 seconds. The display screen goes directly to the Select Diagnosis Items menu.

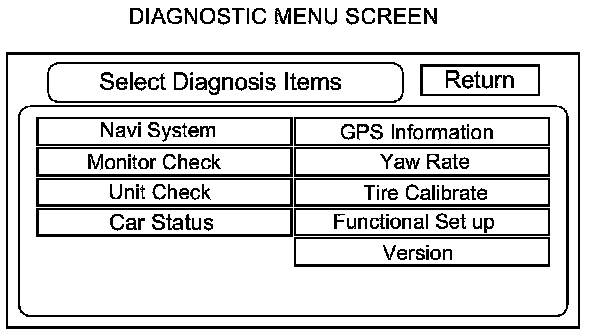

After the display changes to the Diagnostic items menu, select the item you want to check, and the diagnostic will start. To return to the previous screen, select Return.
- Navi System (Link)
- Monitor Check
- Unit Check
- Car Status
- F-CAN (System link)
- GPS Information
- Yaw Rate
- Tire Calibrate
- Functional Setup
- Version
Mode 2:
Start the vehicle. When the globe screen appears, connect the SCS service connector Forced Starting Of The Navigation Unit (With Navigation) to the navigation service connector located in the trunk. The screen changes to the diagnostic menu screen.
NOTE: When finished troubleshooting, make sure to remove the SCS service connector.

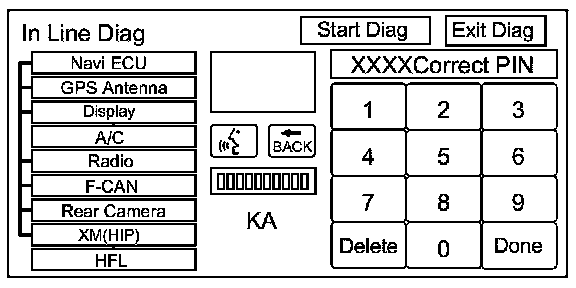

Factory diagnostic screen In Line Diag
NOTE: If the vehicle left the factory in the factory diagnosis mode, you will see this screen every time you turn on the ignition. You may also see this screen if you recently replaced the navigation unit.
When a navigation unit is powered up for the first time at the factory, the factory diagnosis screen (In Line Diag) appears. Normally the factory performs the steps necessary to verify proper operation and terminate the factory diagnostic.
Until the proper confirmation sequence is done, the screen appears every time the vehicle is started.
Follow the steps below to prevent the screen from showing up in the future:
- Press and hold the buttons MENU, the MAP/GUIDE, and the CANCEL buttons for about 3 seconds (the Select Diagnosis items screen appears).
- Press the hold the MAP/GUIDE button for 5-10 seconds. A screen with a Complete button, appears.
- Touch Complete, and then the Return button (the system may re-boot).
- Restart the vehicle, and confirm normal operation by completing the "PDI of the Navigation System" Service Bulletin.

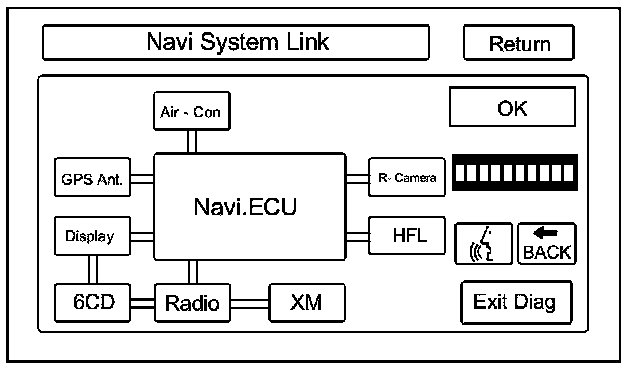

Navi System Link
- This diagnostic tests the wires connecting the navigation components. Ensure that the ignition switch is in the ON (II) position. When the diagnostic begins, you hear a long sound. The system is in a Detecting mode, and is waiting for all items in white to be tested. This includes the voice control switch (navigation TALK/BACK buttons), and microphone. Press the navigation TALK button on the steering wheel, and in a normal voice, say "testing". The talk indicator on the screen should turn green, and the voice level indicator should move to at least the 6th bar to pass. Next, press the navigation BACK button. The Cancel indicator should turn green.
- If all of the communication lines connecting the system components, and the navigation TALK/BACK buttons/microphone check out OK (all block diagram items green), then the OK indicator turns green.
- If there is a problem with the system, the faulty system component item turns red, and the screen shows NG in red. Use the troubleshooting index and other diagnostic screens to help locate the problem.
- The indication on the screen may not change until you cycle the ignition switch. After repairing the affected cable or system, repeat this diagnostic.
NOTE: Green boxes and green OK indicate that the communications lines (wires) are intact. This diagnostic does not necessarily imply that the individual components are functioning properly. For instance, the GPS antenna wire may be crushed, but still show as green. A road test, or other diagnostic may be necessary to find the problem. The rearview camera feature is optional. If the camera is not installed, the rear camera icon is yellow/orange. When the camera is installed the icon is green. If the icon is not green with the rearview camera installed, check for opens or shorts in the rearview camera cable.
- Select Return to return to the Diagnostic Menu or the Exit Diag button to exit.
NOTE:
- The Mic Level indicator must reach the 6th bar or greater to pass the test.
- If the XM link is red or flashing red, go to audio system symptom troubleshooting, or see XM diagnostic screen.

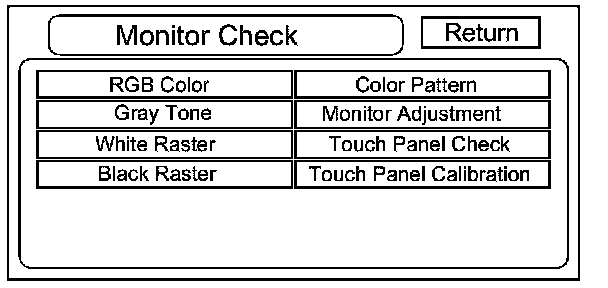

Monitor Check
Overview of navigation display unit
- The illumination input from the gauge brightness control provides back lighting for the buttons surrounding the screen and the illumination ON and OFF signal for the display back lighting.
- The illumination cancel signal is provided by the gauge via B-CAN to the HVAC unit, then to the navigation unit via the UART bus.
- The navigation display communicates with the navigation unit over its own GA-Net bus. Information is sent to the navigation unit whenever the user activates the touch screen, or buttons. Information sent by the navigation unit to the navigation display includes commands to control the LCD back light.
- The security system protects the navigation display by daisy-chaining the security signal through it, and then passing the signal to the audio unit.
These screens allow you to troubleshoot the navigation display unit. Select the item you want to troubleshoot, and follow the diagnostic instructions.
- RGB Color
- Gray Tone
- White Raster
- Black Raster
- Color Pattern
- Monitor Adjustment
- Touch Panel Check
- Touch Panel Calibration

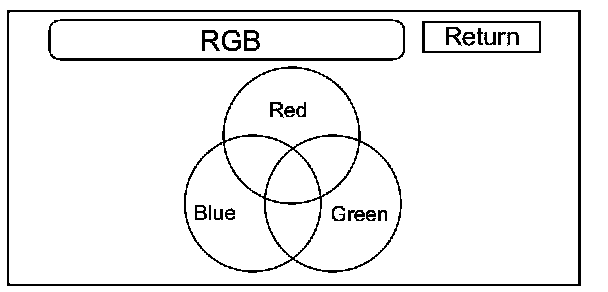

RGB Color
This screen verifies that the navigation display is receiving the video (R, G, B and Composite sync) signals properly. The three primary colors should all appear without distortion. The combination of all three should produce a central white section. If any of the colors are missing, troubleshoot for the color signal Symptom Troubleshooting. If the picture has lines in it, or scrolls horizontally or vertically, troubleshoot for a Composite sync problem Picture Has lines Or Rolls (With Navigation).

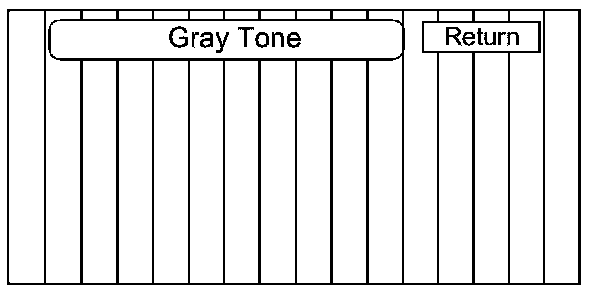

Gray Tone
This screen diagnoses problems with contrast. You should be able to see the changes from bar to bar across the scale. It is normal for the two bars on either side to appear the same. If you can't see changes from bar to bar, replace the navigation display unit Service and Repair.

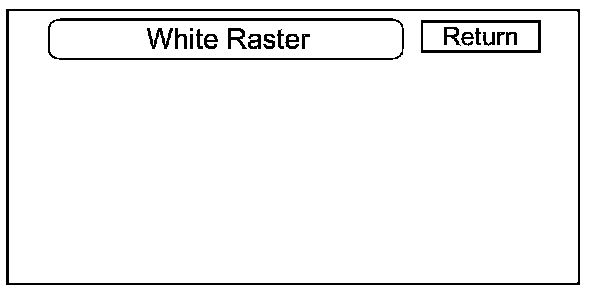

White Raster
This diagnostic screen checks for pixels that may be dead (off). The entire display must be white. If there are dead pixels, replace the navigation display unit.

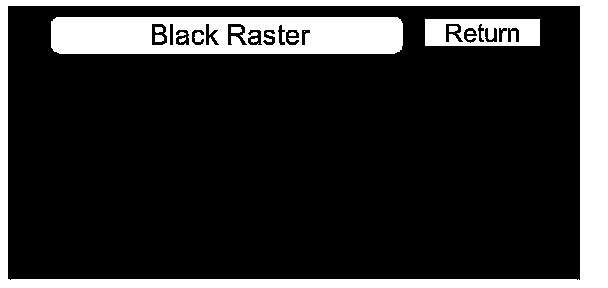

Black Raster
This diagnostic screen checks for pixels that may be stuck on. The entire display must be black. If pixels are stuck on, replace the navigation display unit.

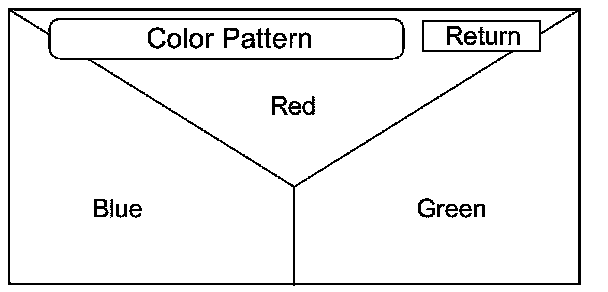

Color Pattern
The chart below shows the colors being used for the map and menu screens. This is for factory use only. To check the color signal use the RGB. Color diagnostic found under the Monitor Check.

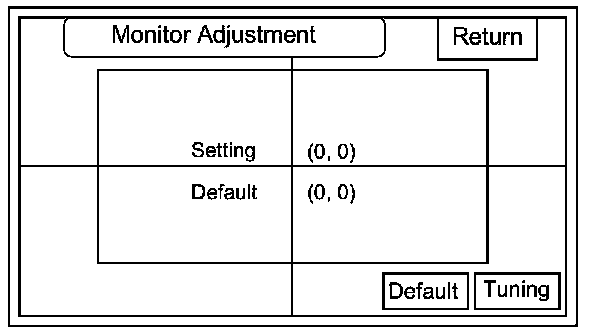

Monitor Adjustment
This allows you to center the navigation display. This is for factory use. Use this procedure only if you are directed by the factory, or other service information like a service bulletin, use the joystick to move the picture up/down or left/right. It is unlikely that you will ever need to adjust the monitor position. The Default button will reset the display position to factory specifications. The factory default is (0, 0).
Touch Panel Check
The panel touch sensing system consists of a touch sensitive resistive membrane covering the display. Contrary to other systems using infrared beams, the screen has to be physically touched to make it work. The display has the capability of an almost infinite number of touch locations. However, to be compatible with earlier systems, the software only senses the locations shown on the diagnostic screen below. Every possible touch button position is shown on this diagnostic screen. Touching one of these areas should cause its color to reverse, and sound a beep. If the touch locations are off slightly (by less than one touch location), use the Touch Panel Calibration diagnosis to re-align the touch zones with the screen image. If any areas of the screen either does not respond, or respond at some other location when touched, then replace the navigation display.
NOTE: Unlike earlier screens that used infrared sensors, direct sunlight does not affect this test.

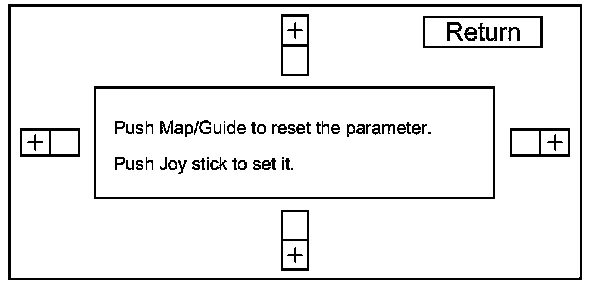

Touch Panel Calibration

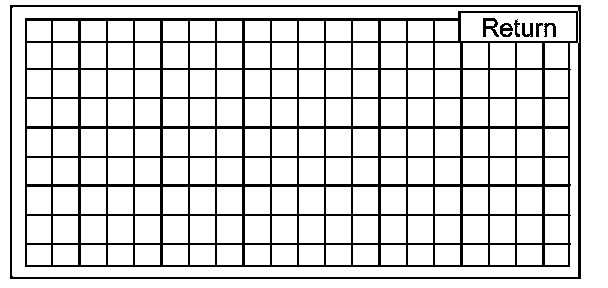

The display screen uses a touch sensitive membrane instead of fixed infrared beams. This means that every location of the entire surface of the display is touch sensitive.
For the display to be compatible with earlier navigation systems, the system software creates touch zones emulating the touch switches created by the intersections of 20 vertical and 10 horizontal infrared beams. This diagnostic allows alignment of these artificially created zones with the location of the button images on the screen.
This should never need adjustment, and it is used only by the factory to adjust the touch locations for parallax (the touch locations appear different when viewed at an angle). If you are directed to make an adjustment by the factory or other service information, follow this procedure:
- The screen consists of four test areas consisting of a + button and an adjacent box with a black border. Touch the four + buttons to verify alignment. If, when you touch a + button, the adjacent box becomes yellow, then do the following. Continue to hold the + button, and simultaneously move the joystick to shift the screen slightly from side to side, or up and down. The adjustment is complete when you can touch all four + boxes and none of the adjacent boxes becomes yellow.
- To store any changes you make, push in the joystick.
- To reset the touch zones to the factory default, touch the Map/Guide button.
- Press Return to exit the diagnostic.

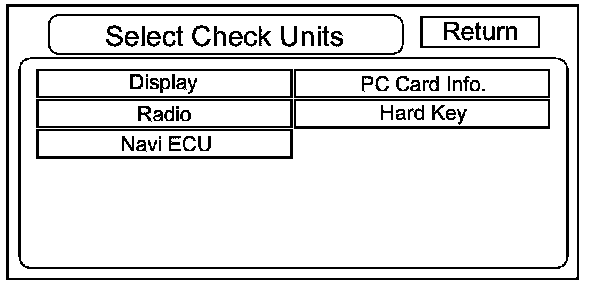

Unit Check
Some of the tests and screens that are displayed under the Unit Check are different from the more detailed checks listed in other areas of this service information.
To start the test, select the item you want to check.
- Display
- Radio
- Navi ECU
- PC Card Info.
- Hard Key

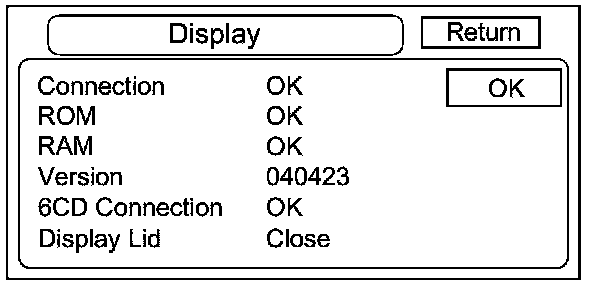

Display
This diagnosis does additional checks on the communication bus between the navigation CPU and the navigation display unit. In addition, this test checks the internal electronic functions.
- When the connection is NG, first check for loose terminals at the navigation unit, the navigation display, the audio unit, and the audio disc changer connections. Next check for an open or short in the communication line between the navigation unit, the navigation display, the audio unit, and the audio disc changer. If the line to have an open or short, replace the affected shielded harness.
- If the ROM or RAM is NG, replace the navigation display Service and Repair.
- The version represents the software version in the display.
- Six CD connection checks the status of the connection between the audio disc changer and the audio unit. An NG represents an open in that circuit.
- Display Lid indicates if the front display panel is Open or Closed. This should always say, Close.

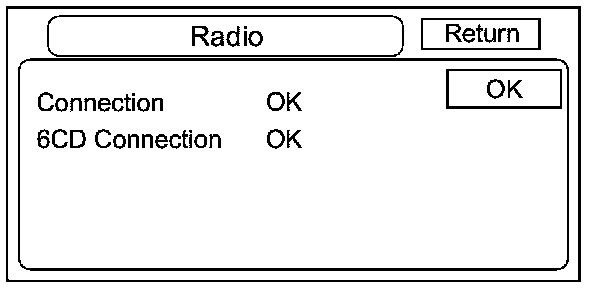

Radio
If the NG is indicated, check for loose audio unit connectors.
NOTE: If the radio connections are OK, but the XM is not working properly, refer to audio system troubleshooting Symptom Troubleshooting.

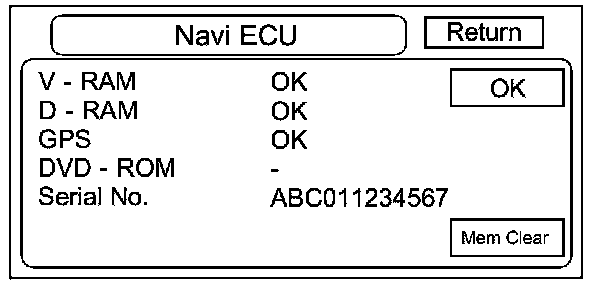

Navi ECU
This screen looks for problems in the navigation unit. When you initiate this diagnosis, the navigation unit may freeze or delay up to a minute while the diagnosis runs.
NOTE: Do not try to end this diagnostic by pressing OK or Mem Clear before it finishes, otherwise the system may reboot.
- If V-RAM or D-RAM is NG, replace the navigation unit.
- If GPS indicates NG (ANT), then check the entire GPS antenna wire from the navigation unit to the antenna. If the wire is crushed or damaged, try a known good antenna. If this diagnostic reads OK, then order a new GPS antenna. If the diagnostic still reads NG (ANT), then replace the navigation unit.
- DVD ROM represents the database version on the DVD. You can also find this information in Setup by selecting System Information.
- Serial No. should be the same as the serial number found on the underside of the navigation unit. You need this number to obtain the security code from the Interactive Network (iN) system.
- The Mem Clear is for factory use and should not be used unless instructed by the factory. Selecting will clear the customer's settings, personal data, PINS, and settings. If selected, a pop up box appears asking if you want to clear the memory. If so, select Yes.

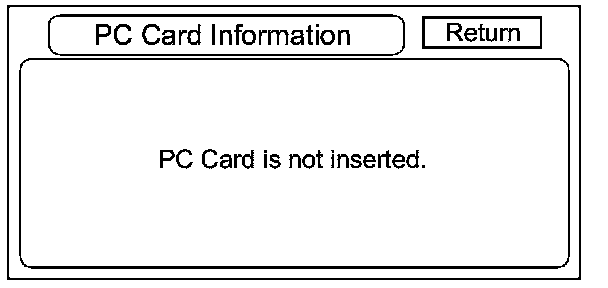

PC Card info.
There is no PC Card in the PC slot, and the screen should display, "PC Card is not inserted".
NOTE: Do not insert any card or object into the slot unless you are instructed to by the factory.

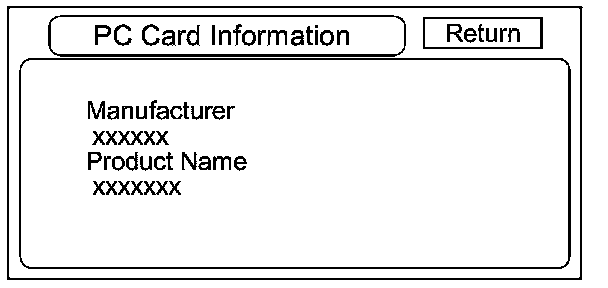

If the factory provides a PC card and instructs you to insert it, the screen displays the Manufacturer, and Product Name as shown in the following screen.
Follow the instructions provided by the factory to complete the test.

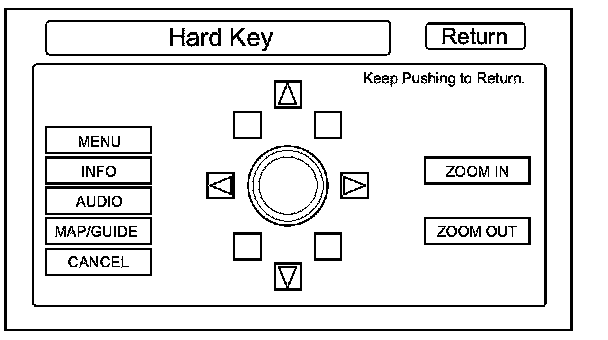

Hard Key
This diagnostic screen checks the status of each of the hard buttons surrounding the navigation display. When you press each hard button, the corresponding item on the screen should flash blue. Touch the return key, or press and hold the joystick to exit.

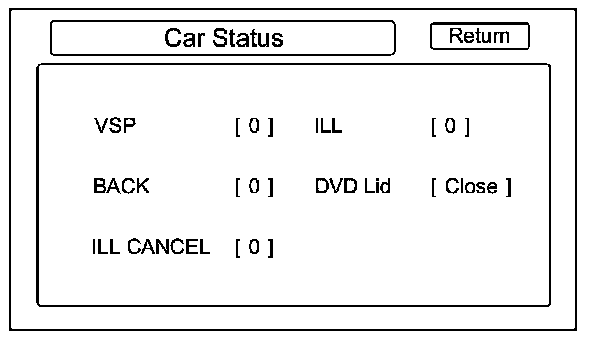

Car Status
Use this screen to confirm that navigation unit is properly receiving input signals. Signals equal to (0) are OFF, and signals equal to (1) are ON. If the value on the display does not match the actual vehicle status, then check the wire carrying the signal.
- VSP-Vehicle Speed Pulse from PCM (Navigation unit connector A (8P) terminal No. 6)
a) OFF (0) when vehicle is not moving
b) ON (1) when vehicle is moving
The VSP comes from the PCM as a dedicated signal. Internally, the navigation unit compares the actual VP on the map against street data to adjust the pulse to speed scaling factor. As this scaling factor becomes more accurate, the Level gradually increases from 0 to 10.
- BACK-Reverse indication from taillight relay (Navigation unit connector A (8P) terminal No. 5)
a) OFF (0) when shift lever is in any position other than reverse
b) ON (1) when shift lever is in reverse
The Back signal is used by the navigation unit to allow the map screen to show the VP moving backwards when in reverse and to trigger the optional rear view camera. This signal is needed because the Speed Pulse has no direction indication.
- ILL CANCEL
This item detects whether the illumination cancel function is in use.
a) OFF (0) when the dashlights brightness control button is less than 90% brightness with the headlights turned on.
b) ON (1) when the dashlights brightness control button is more than 90% brightness with the headlights turned on.
The illumination cancel signal comes from the HVAC unit. The HVAC unit gets the signal off of B-CAN from the gauge control module and sends it to the Navi ECU using the U-ART communication bus between A/C and Navigation unit connector B (32P) terminal No. 4, No. 20, and No. 21.
- ILL-Illumination Indication (Navigation unit connector B (32P) terminal No. 5)
a) OFF (0) when parking lights, or headlights are off
b) ON (1) when parking lights, or headlights are on
The navigation uses the signal to determine whether to put the navigation screen into the Day or Night brightness mode. (Setup screen 1)
- DVD Lid-senses if the DVD door is open
a) (Close) when the door is closed
b) (Open) when the door is open
The navigation unit has a microswitch to detect this. If open is indicated when the door is closed, replace the navigation unit.
