Immobilizer Control Unit-Receiver Replacement

Immobilizer Control Unit-Receiver Replacement

NOTE: SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or servicing.

1. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

2. Remove the steering column covers.

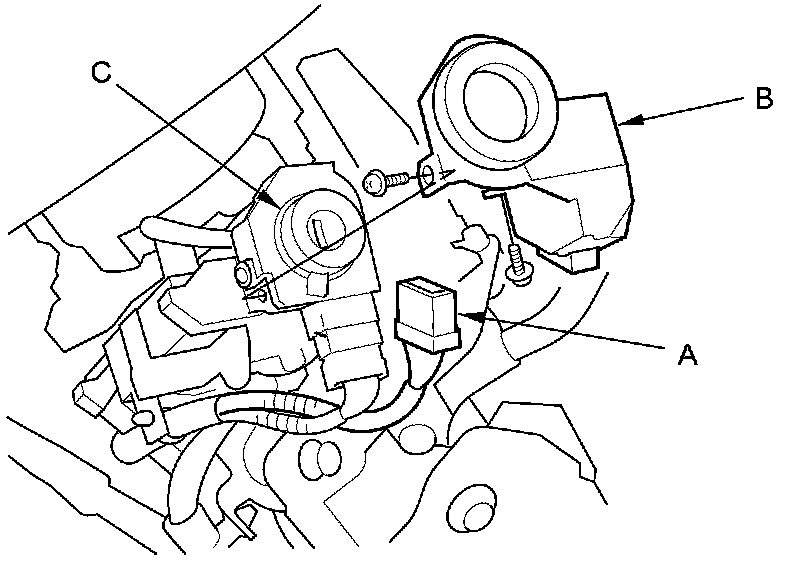

3. Disconnect the 7P connector (A) from the immobilizer control unit-receiver (B).





4. Remove the two screws and the immobilizer control unit-receiver from the ignition key cylinder (C).

5. Install the immobilizer control unit-receiver in the reverse order of removal.

6. After replacement, use the HDS to program all of the customer's keys (Requires all of the customer's keys and the PCM code.).
