Rear Bumper Step Replacement

Rear Bumper Step Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

NOTE:

- Take care not to scratch the bumper.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

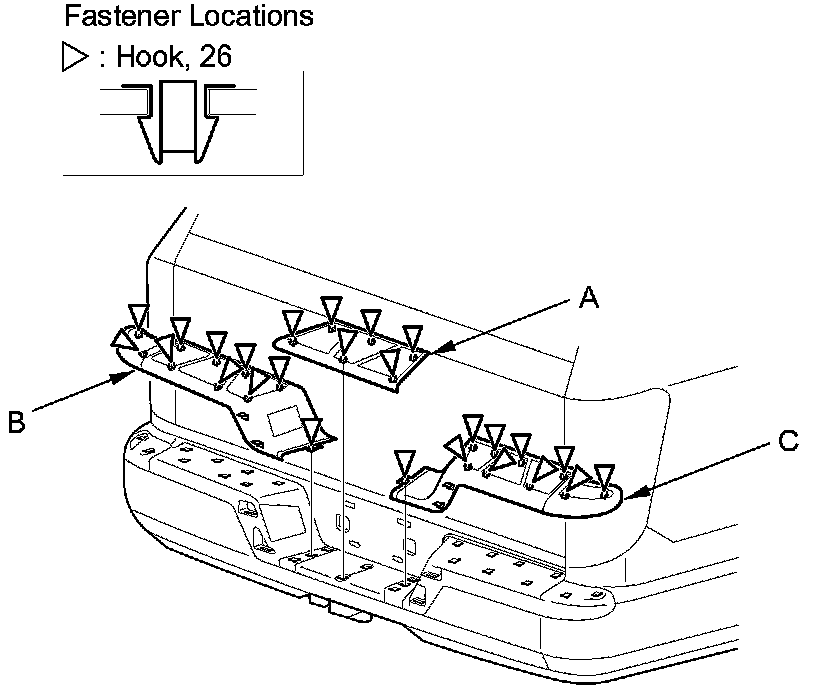

1. Detach the hooks with the appropriate trim tool, then remove the center rear bumper step (A), the left rear bumper step (B), and the right rear bumper step (C).





2. Install the bumper step sections by pushing on the hook portions until the hooks snap into place.
