Front Door Striker: Adjustments

Front and Rear Door Striker Adjustment

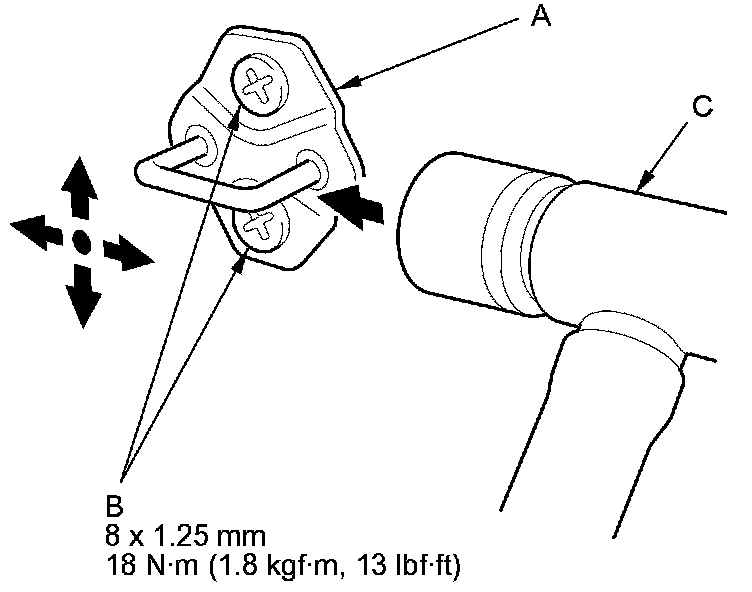

Make sure the door latches securely without slamming it. If necessary, adjust the striker (A): The striker can be adjusted slightly up or down, and in or out.

1. Loosen but do not remove the screws (B).





2. Wrap the striker with a shop towel, then adjust the striker by tapping it with a plastic hammer (C). Do not tap the striker too hard.

3. Lightly tighten the screws.

4. Hold the outer door handle out, and push the door against the body to be sure the striker allows a flush fit. If the door latches properly, tighten the screws to specified torque, and recheck.
