Fuel Door Release Lever: Service and Repair

Fuel Fill Door Opener Replacement

1. Remove the left front door sill trim Service and Repair.

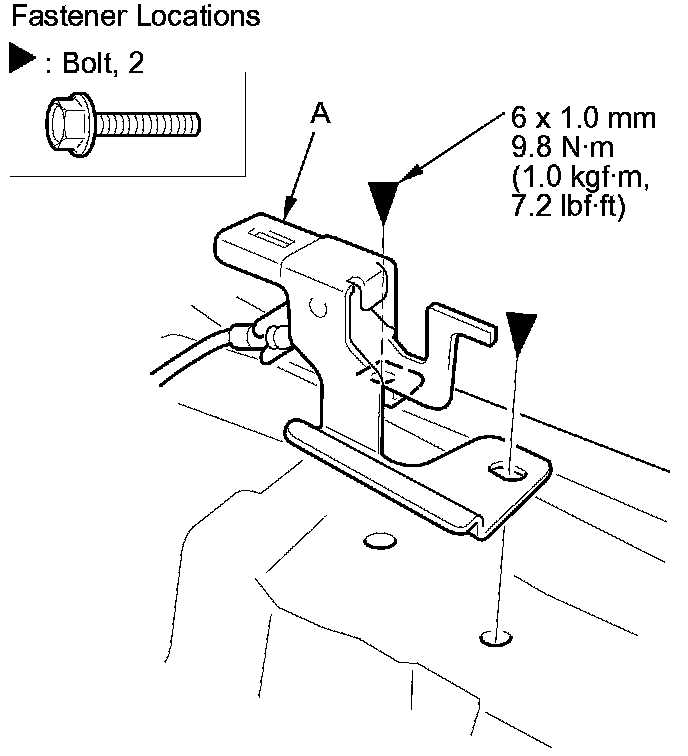

2. Remove the bolts, then remove the fuel fill door opener (A) from the body.

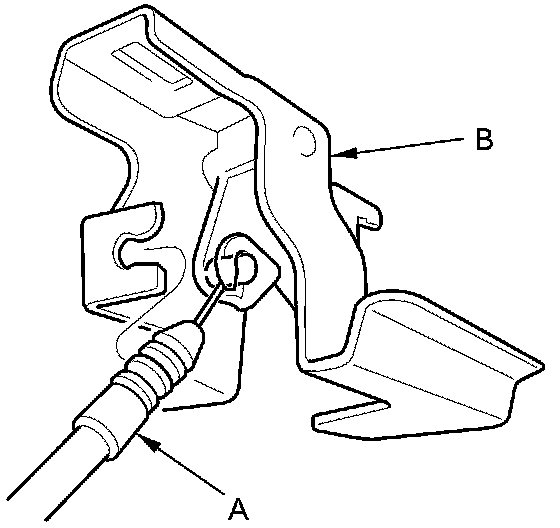

3. Disconnect the fuel fill door opener cable (A) from the opener (B). Take care not to kink the cable.





4. Install the fuel fill door opener in the reverse order of removal, and note these items:

- Make sure the fuel fill door opener cable is connected securely.
- Make sure the fuel fill door opens properly.
