Hood: Adjustments

Hood Adjustment

1. Remove the front bulkhead cover Front Bulkhead Cover Replacement.

2. Slightly loosen each hood hinge bolt.

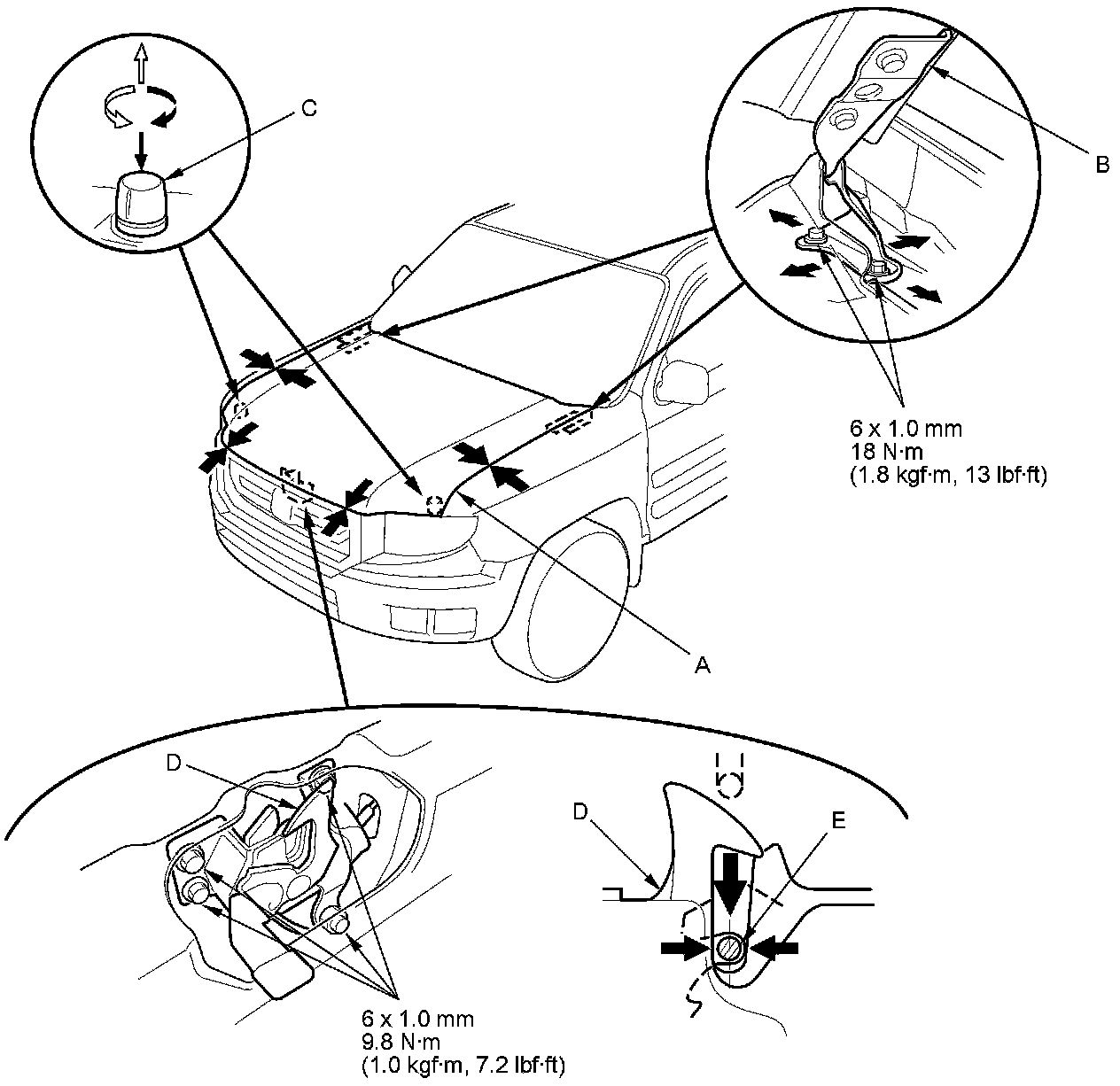

3. Adjust the hood (A) alignment in the following sequence.

- Adjust the hood right and left, as well as forward and rearward, by using the elongated holes in the hood hinges (B).
- Turn the hood edge cushions (C), in or out as necessary, to make the hood fits flush with the body at the front and side edges.





4. Adjust the hood latch (D) to obtain the proper height at the forward edge, and move the hood latch right or left until the striker (E) is centered in the hood latch.

5. Tighten the bolts to the specified torque, and recheck the hood alignment.

6. Check that the hood opens properly and closes securely.

7. Apply touch-up paint to the hinge mounting bolts and around the hinges, and let the paint dry.

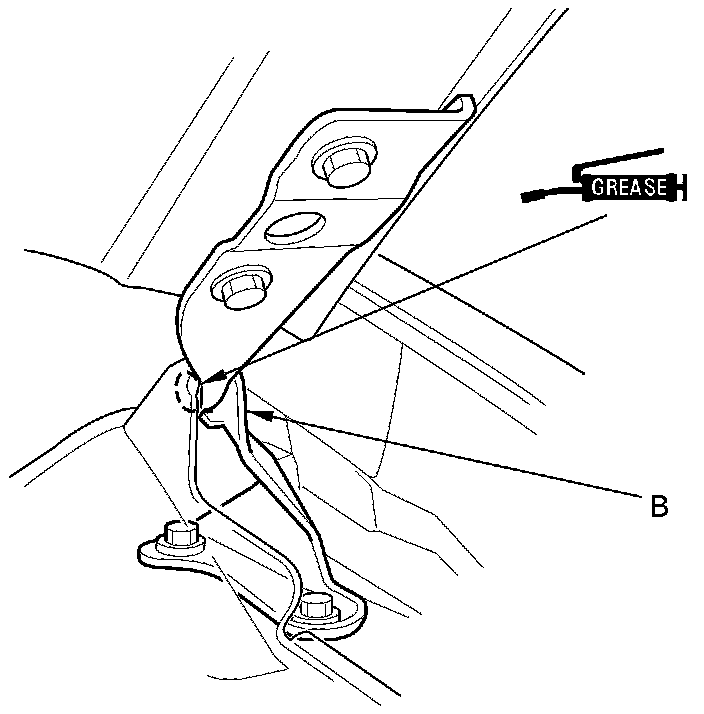

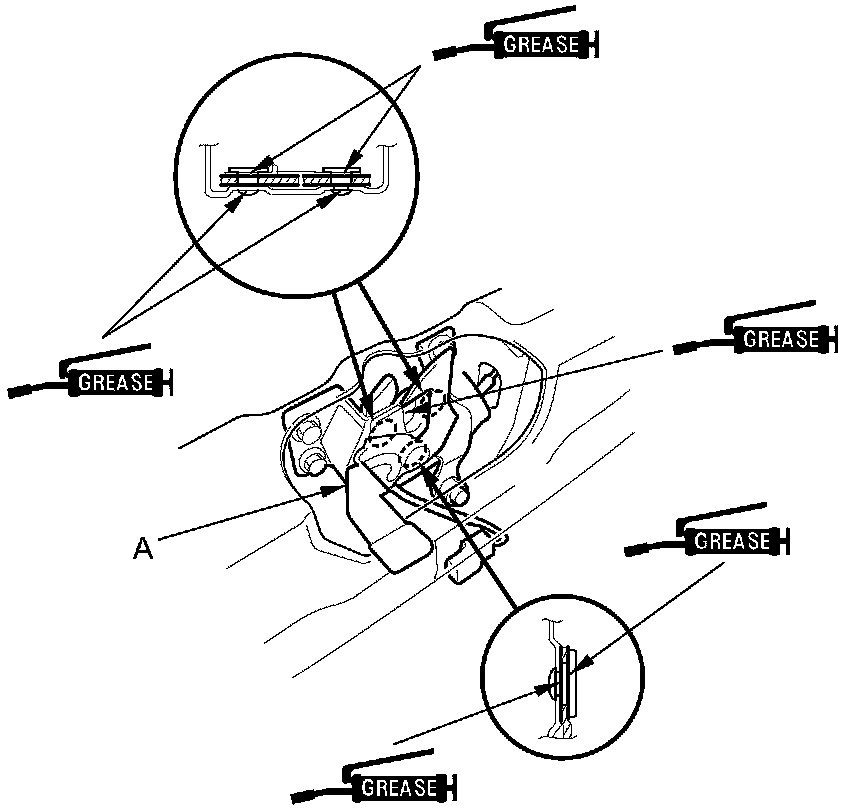

8. Apply multipurpose grease to the hood latch (A) and the hood hinges (B) as indicated by the arrows.









9. Reinstall all removed parts.
