Hood Latch: Service and Repair

Hood Latch Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body.

1. Remove the front bumper Service and Repair.

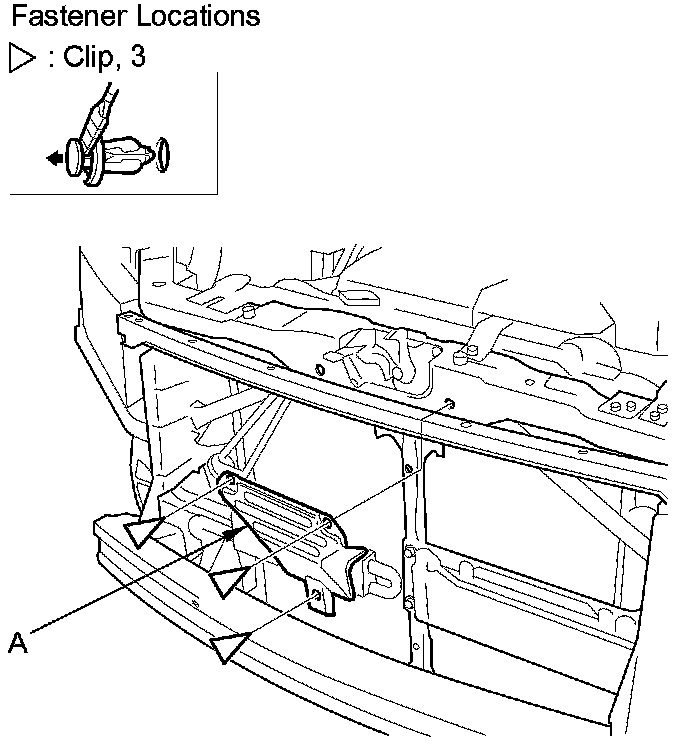

2. Remove the clips, then remove the hood latch cover (A).

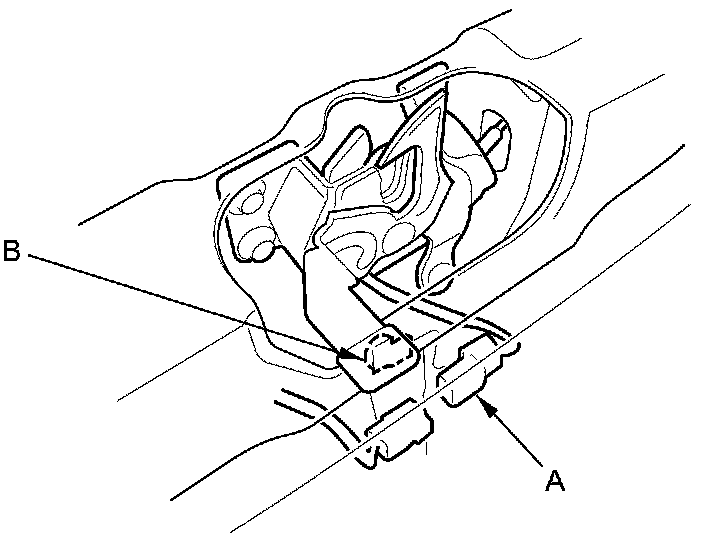

3. With security system: Detach the latch switch connector (A) from the connector clip (B), and disconnect it.

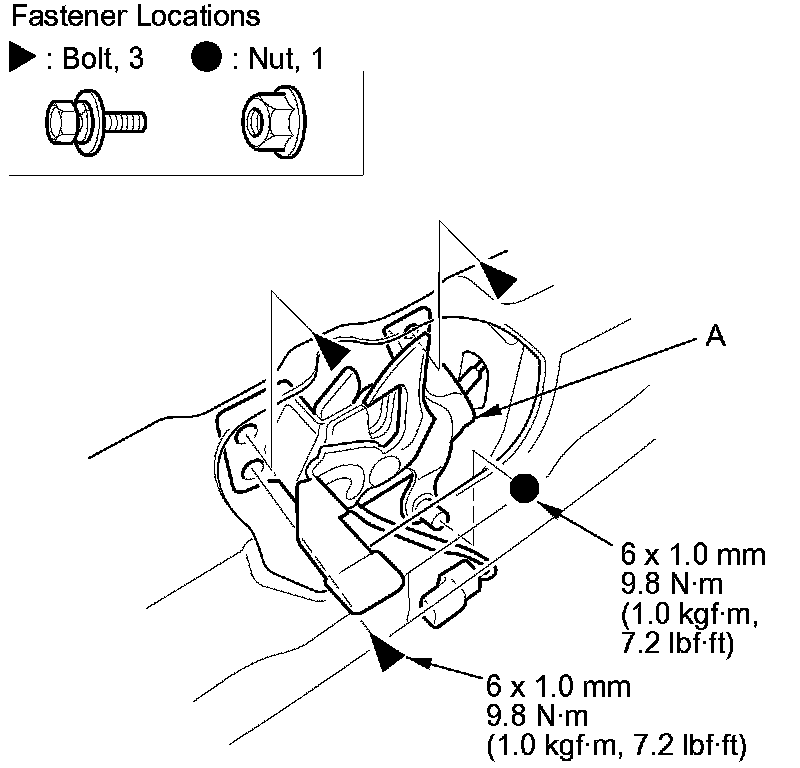

4. Remove the bolts and the nut, then remove the latch (A) from the body.

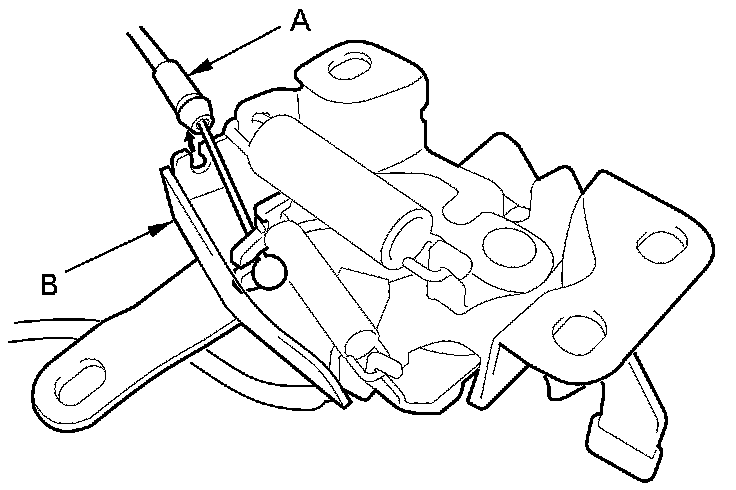

5. Disconnect the hood opener cable (A) from the hood latch (B). Take care not to kink the cable.






6. Install the latch in the reverse order of removal, and note these items:

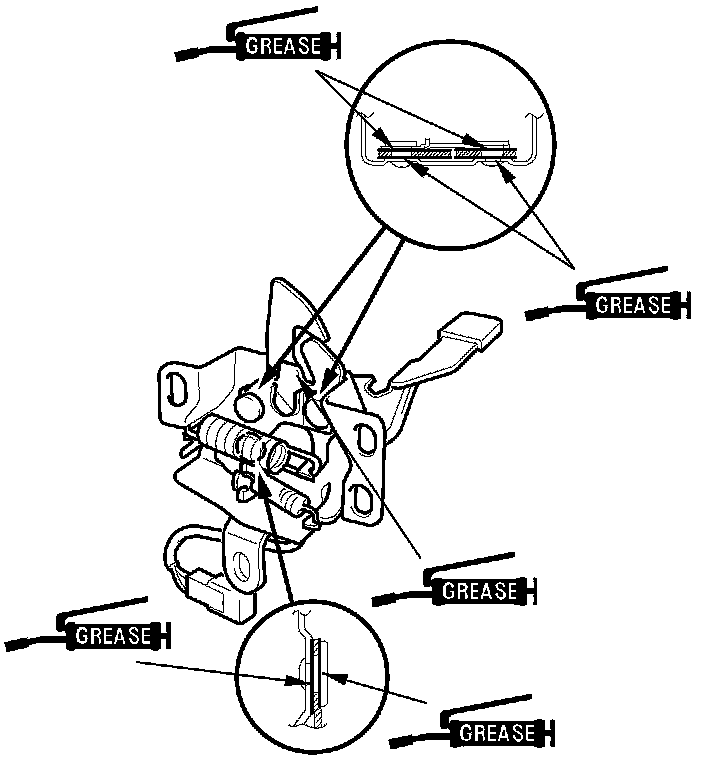

- Apply multipurpose grease to the hood latch as indicated by the arrows.
- Make sure the hood opener cable is connected securely and the hood latch switch connector is plugged in properly (with security system).
- Make sure the cable actuates the latch before you close the hood.
- Adjust the hood latch alignment.
- Make sure the hood opens properly and locks securely.
