Hood Weatherstrip: Service and Repair

Hood Seal Replacement

NOTE: Take care not to scratch the hood.

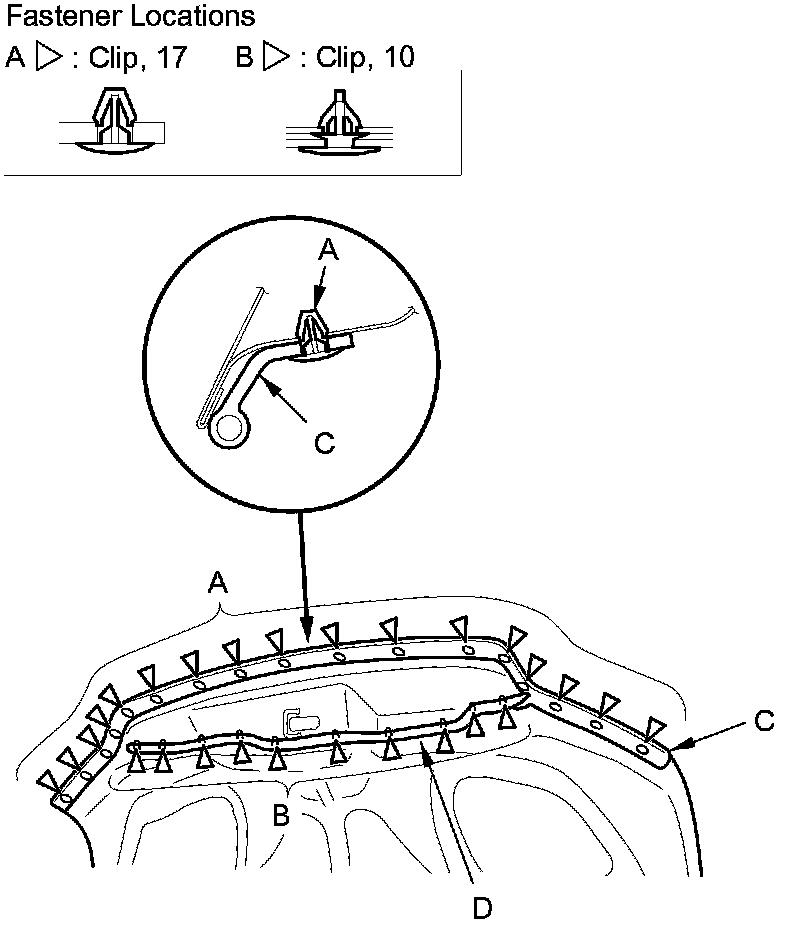

1. Detach the clips (A, B) with a clip remover, then remove the hood seals (C, D).





2. Install the hood seals in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
