Procedures

Tailgate Lock-out Override

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

NOTE:

- If the tailgate does not open using either tailgate handle, then the locking mechanism has malfunctioned, and the tailgate must be unlocked by directly accessing the right side latches.
- In this case, something is the matter with tailgate locking functions.
- Take care not to scratch the tailgate or damage the taillight.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Use protective tape on painted surfaces and the taillight.

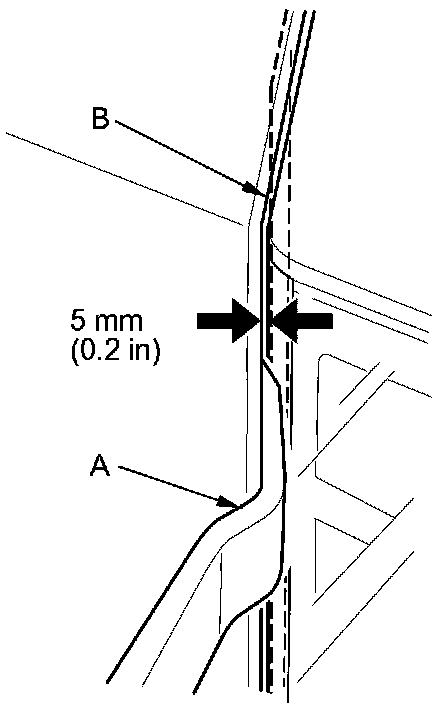

1. Pry open a 5 mm (0.2 in) gap, with an appropriate trim tool (A), between the right edge of the tailgate and the tailgate trim panel (B).

NOTE: If you cannot create a large enough gap, remove the passenger side tailgate trim panel bolt. Use a flexible LED flashlight to help you locate the latch tap.





2. Insert a flat-tip screwdriver in the gap between the tailgate and the trim panel.

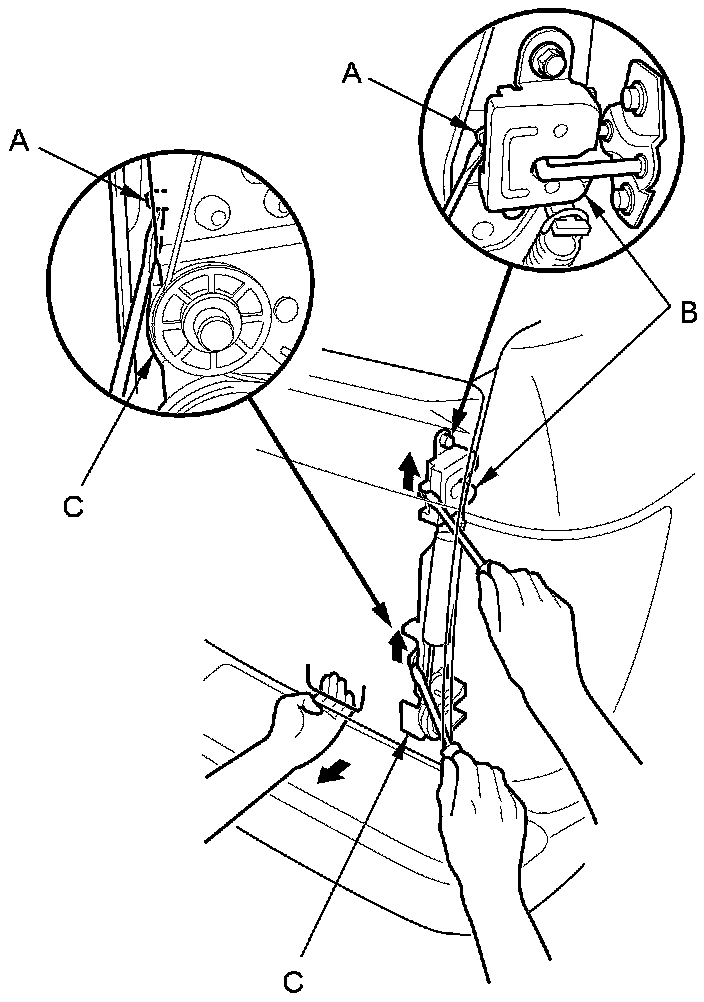

3. While pulling on the tailgate lower handle, with the long thin pry bar trim tool to push up on the latch tab mechanism (A) on either the right upper latch (B) or right lower latch (C) to open the tailgate:

- Take care not to damage the body, the tailgate, or the taillight.
- If the lower handle is malfunctioning, unlocking both latches at the same time are required.





4. Swing the tailgate open, remove the tailgate trim panel , and then perform the required tailgate repair.
