In-Bed Trunk Lid Removal/Installation

In-Bed Trunk Lid Removal/Installation

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the in-bed trunk lid.
- Have an assistant help you when removing and installing the in-bed trunk lid.

1. Open the in-bed trunk lid.

2. Remove the in-bed trunk lid inner cover.

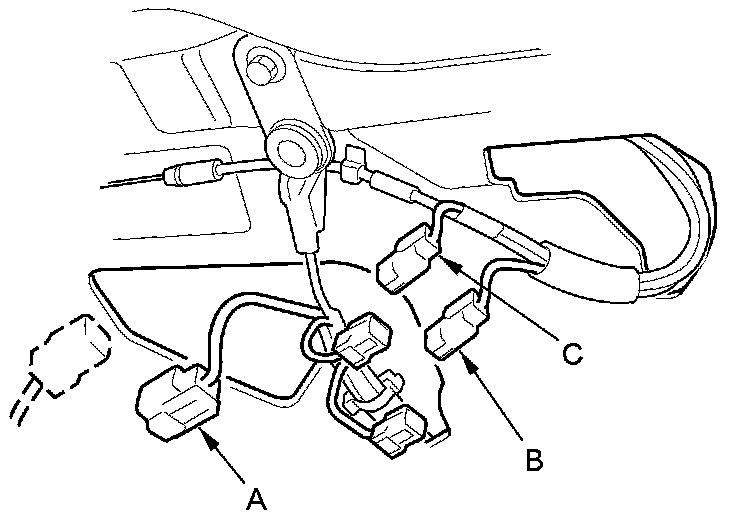

3. Disconnect the in-bed trunk lid latch actuator connector (A), the in-bed trunk lid opener switch connector (B), and the cylinder switch connector (C).

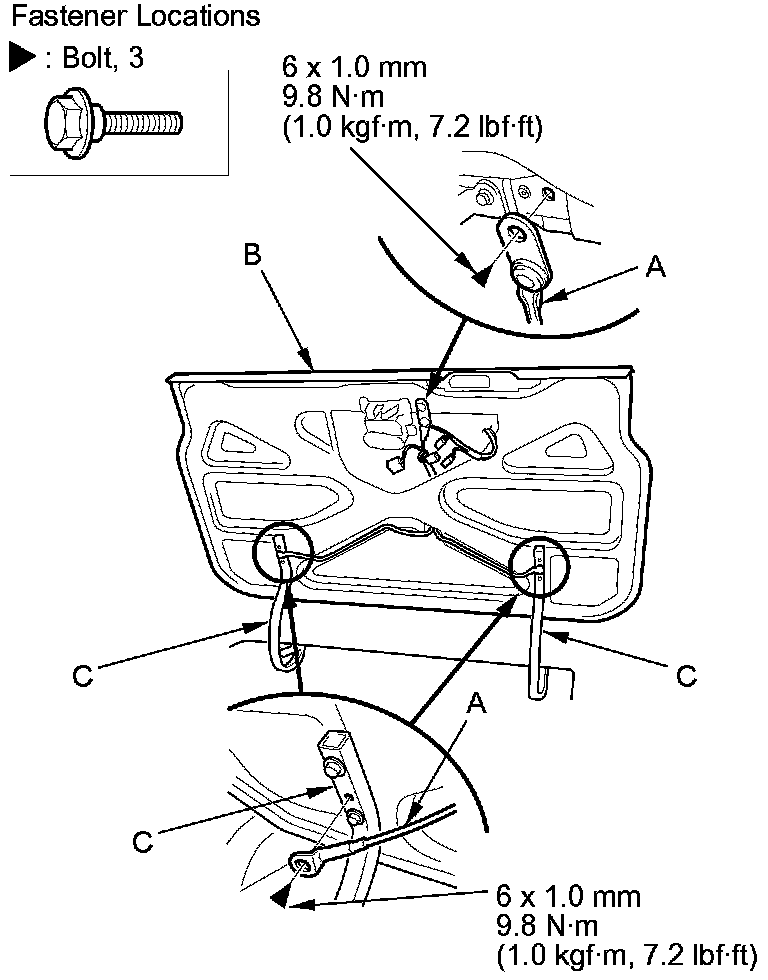

4. Remove the bolts, then remove the in-bed trunk lid anchor cables (A) from the in-bed trunk lid (B) and the in-bed trunk lid hinges (C).

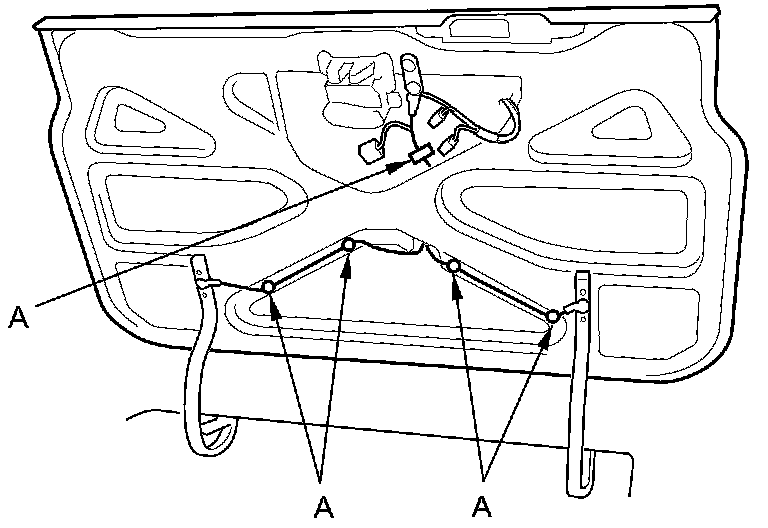

5. Detach the cable and the wire harness clips (A).

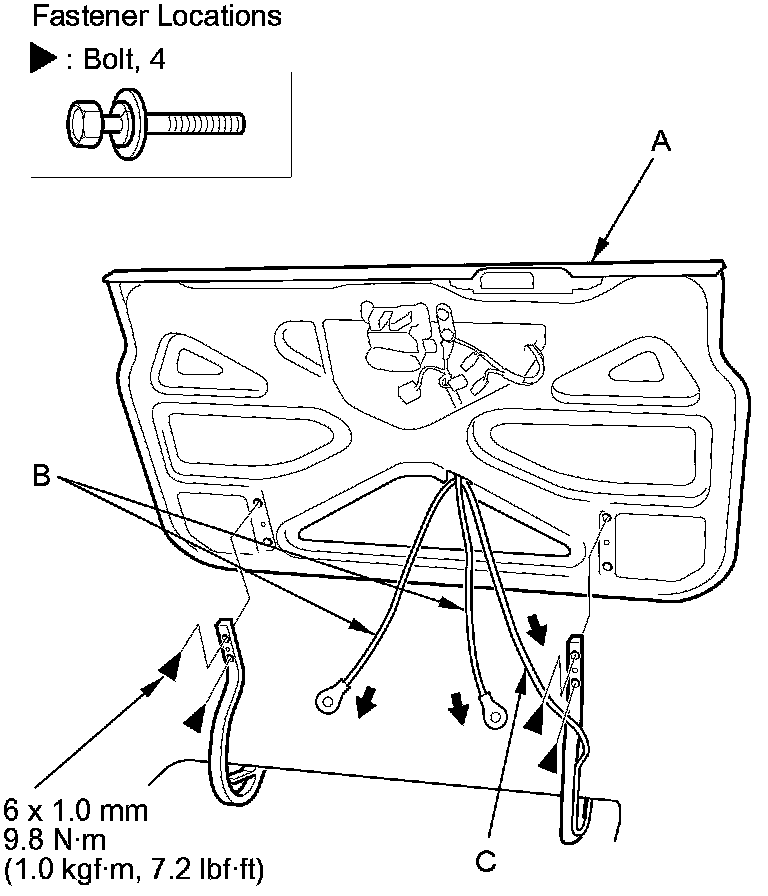

6. Remove the bolts, then remove the in-bed trunk lid (A) along with the in-bed trunk lid anchor cables (B) and the in-bed trunk lid subharness (C).





7. Install the in-bed trunk lid in the reverse order of removal, and note these items:

- Make sure the anchor cables and subharness are routed properly.
- Make sure each connector is plugged in properly.
