In-Bed Trunk Lid Handle Switch Test/Replacement

In-Bed Trunk Lid Handle Switch Test/Replacement

1. Open the in-bed trunk lid, and remove the in-bed trunk lid inner cover In-Bed Trunk Lid Latch Replacement.

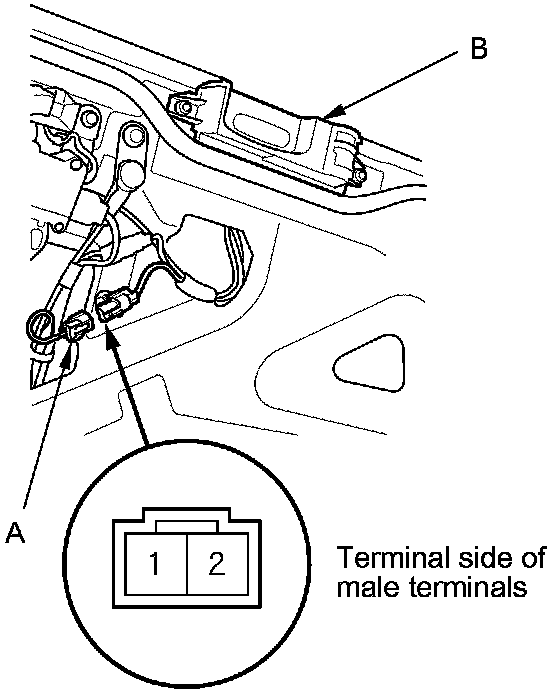

2. Disconnect the 2P connector (A) from the in-bed trunk lid handle switch (B).





3. Check for continuity between terminals No. 1 and No. 2.

- With the handle pushed, there should be continuity.
- With the handle released, there should be no continuity.

4. If the continuity is not as specified, replace the switch In-Bed Trunk Lid Latch Replacement.

5. Install the switch in the reverse order of removal.
