In-Bed Trunk Lid Opener Replacement

In-Bed Trunk Lid Opener Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the in-bed trunk lid.

1. Remove the in-bed trunk lid latch In-Bed Trunk Lid Latch Replacement.

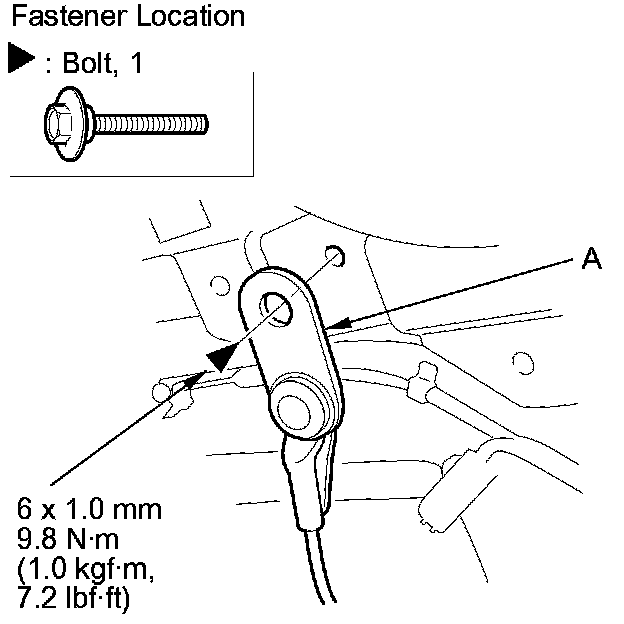

2. Remove the bolt, then remove the in-bed trunk lid anchor cable plate (A) from the in-bed trunk lid.

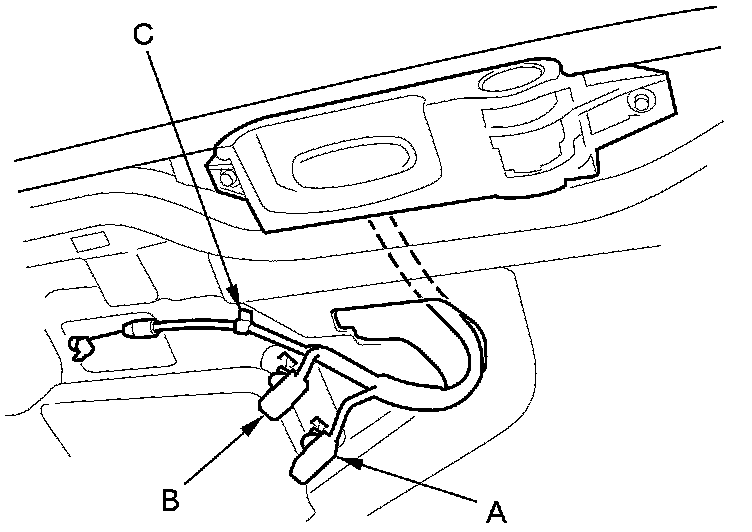

3. Disconnect the in-bed trunk lid opener switch connector (A) and the cylinder switch connector (B), then remove them and the cable clip (C).

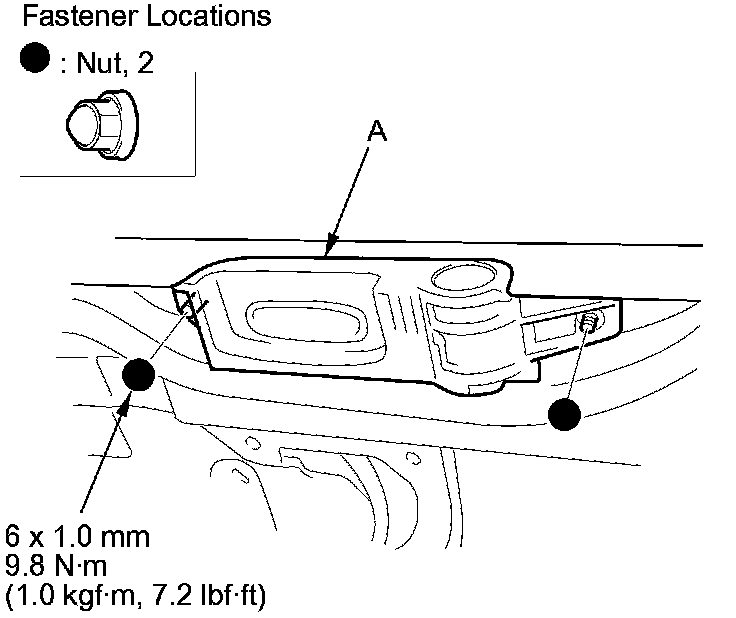

4. Remove the nuts securing the in-bed trunk lid opener (A).

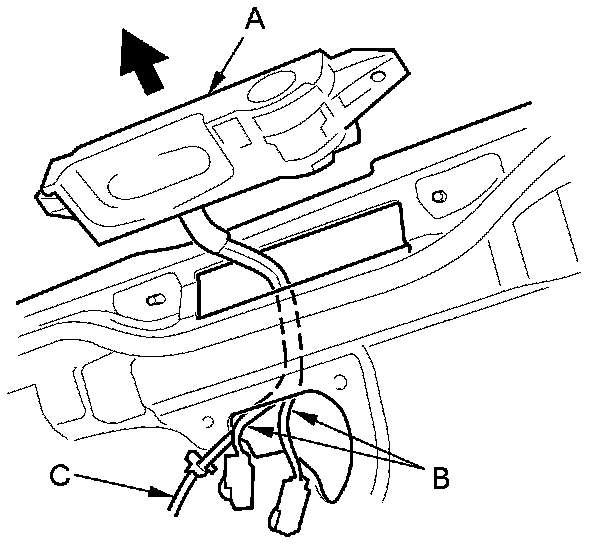

5. Remove the in-bed trunk lid opener (A) by pulling out it, then pull out the wire harnesses (B) and the in-bed trunk lid cable (C) through the opening in the in-bed trunk lid.

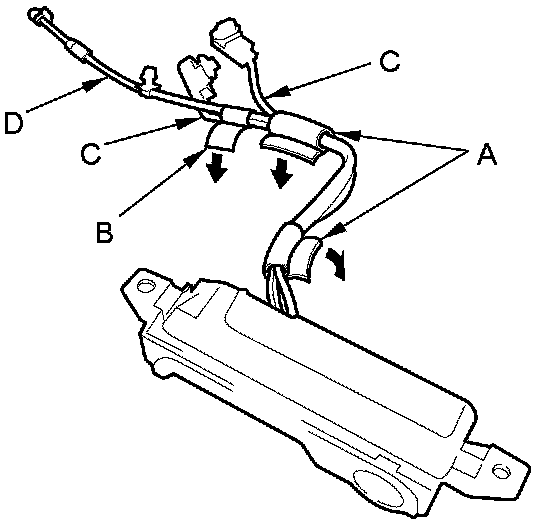

6. Remove the foam tape (A) and the vinyl tape (B) from the wire harnesses (C) and the in-bed trunk lid latch cable (D).

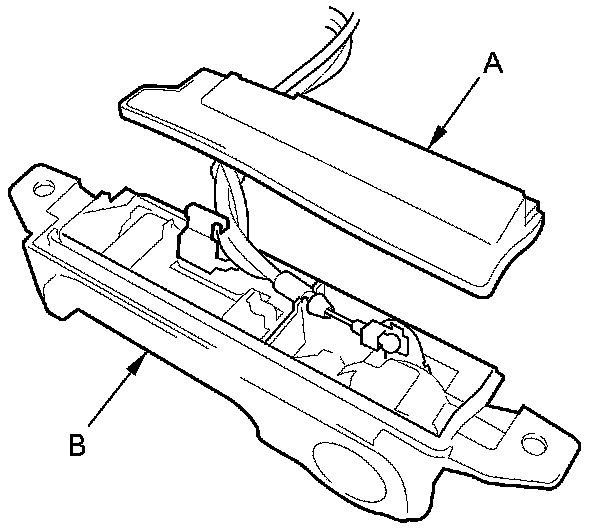

7. Remove the opener seat (A) from the opener (B).

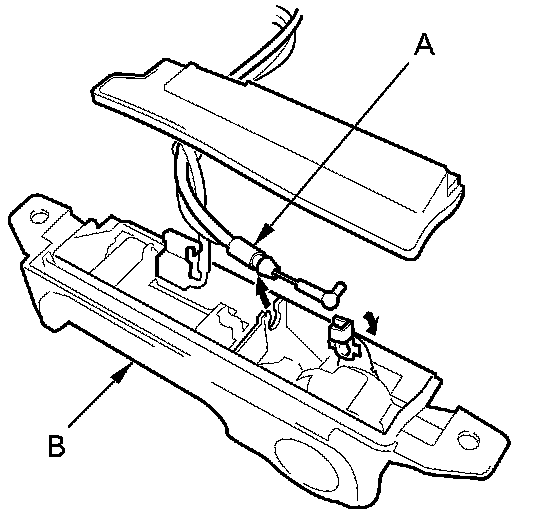

8. Disconnect the in-bed trunk lid latch cable (A) from the opener (B).





9. Install the opener in the reverse order of removal, and note these items:

- Replace the foam tape and the vinyl tape with new pieces.





- Make sure the opener seat is installed properly.
- Make sure the in-bed trunk lid opener switch connector and the cylinder switch connector are plugged in properly, and the in-bed trunk lid latch cable is connected securely.
- Make sure the in-bed trunk lid opens properly.
