In-Bed Trunk Lid Hinge Replacement

In-Bed Trunk Lid Hinge Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the in-bed trunk lid.

1. Remove the in-bed trunk lid In-Bed Trunk Lid Removal/Installation.

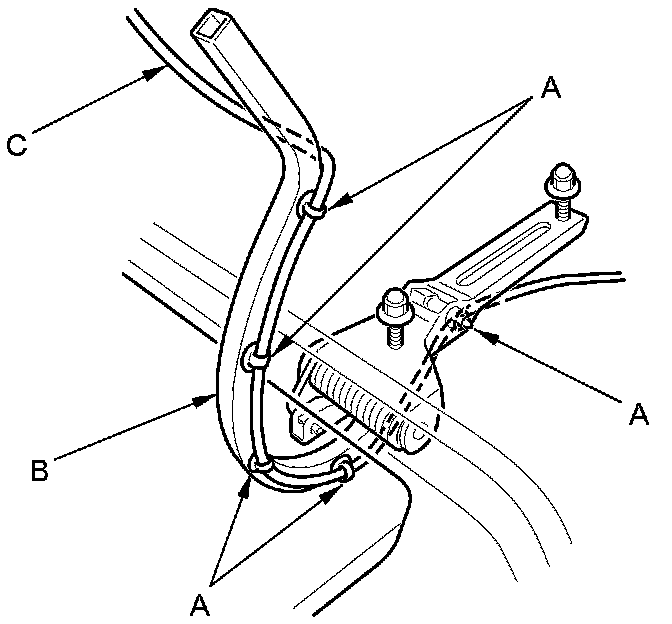

2. Detach the harness clips (A) from the right in-bed trunk lid hinge (B), then remove the in-bed trunk lid subharness (C) from the hinge.

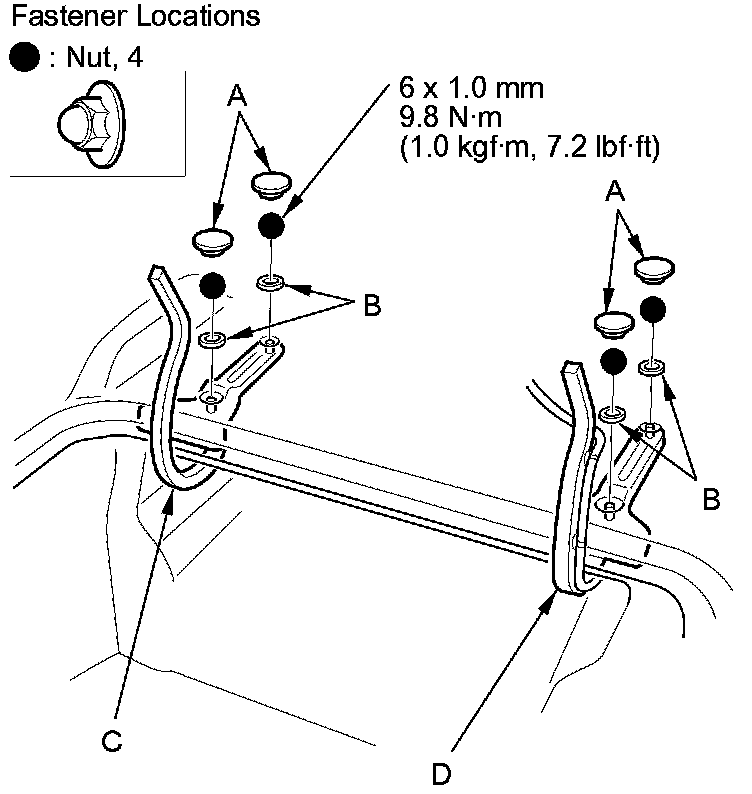

3. Remove the plug caps (A), the nuts, and the washers (B), then remove the left in-bed trunk lid hinge (C) and the right in-bed trunk lid hinge (D).





4. Install the hinges in the reverse order of removal, and note these items:

- Make sure the subharness is routed properly.
- Adjust the in-bed trunk lid alignment In-Bed Trunk Lid Alignment.
