In-Bed Trunk Lid Actuator Test

In-Bed Trunk Lid Actuator Test

1. Remove the in-bed trunk lid trim In-Bed Trunk Lid Latch Replacement.

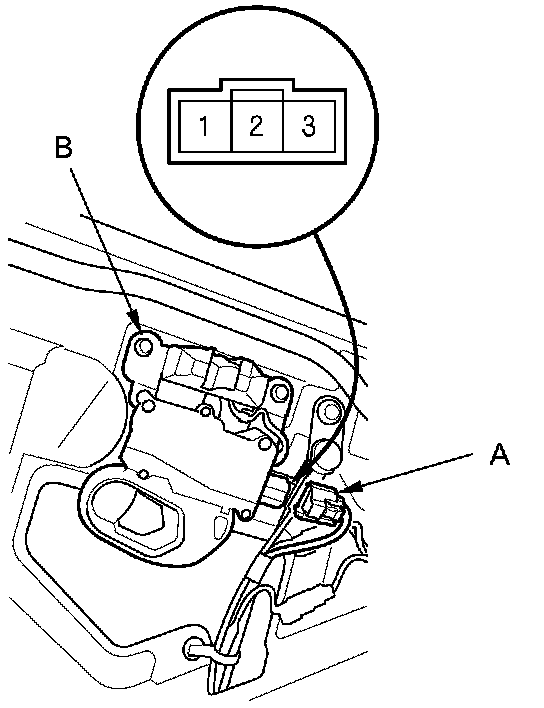

2. Disconnect the 3P connector (A) from the in-bed trunk lid actuator/latch switch (B).






3. Test the in-bed trunk lid actuator operation by connecting battery power to the terminal No. 1 and connecting body ground to the terminal No. 2 with LOCK position. To prevent damage to the in-bed trunk lid actuator, apply battery voltage only momentarily.

The in-bed trunk lid actuator should work.

4. If the in-bed trunk lid actuator does not work as specified, replace the in-bed trunk lid latch In-Bed Trunk Lid Removal/Installation.
