In-Bed Trunk Lid Latch Switch Test

In-Bed Trunk Lid Latch Switch Test

1. Remove the in-bed trunk lid trim In-Bed Trunk Lid Latch Replacement.

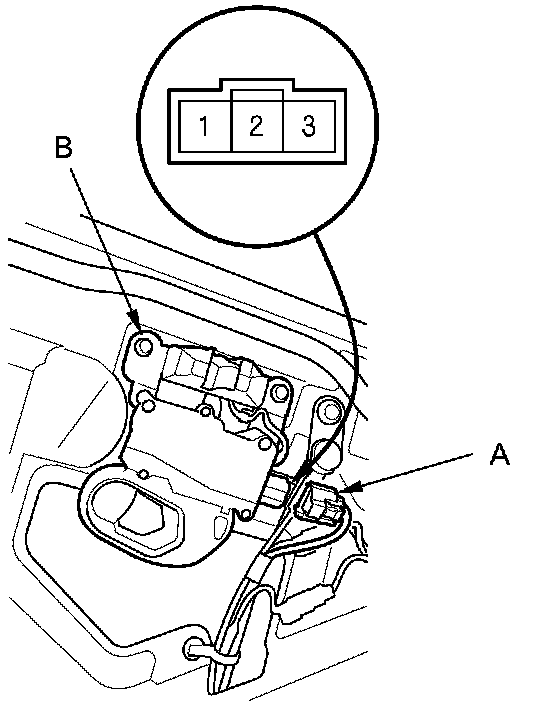

2. Disconnect the 3P connector (A) from the in-bed trunk lid actuator/latch switch (B).






3. Check for continuity between terminals No. 2 and No. 3.

- There should be continuity when the in-bed trunk is opened (UNLOCK position).

- There should be no continuity when the in-bed trunk is closed (LOCK position).

4. If the in-bed trunk lid latch switch does not work as specified, replace the in-bed trunk lid latch In-Bed Trunk Lid Removal/Installation.
