Body Emblem: Service and Repair

Emblem/Sticker Replacement

NOTE: When removing the emblem, take care not to scratch the body.

1. To remove the front "H" emblem, remove the front grille Front Grille Replacement.

2. Clean the body surface with a shop towel dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.

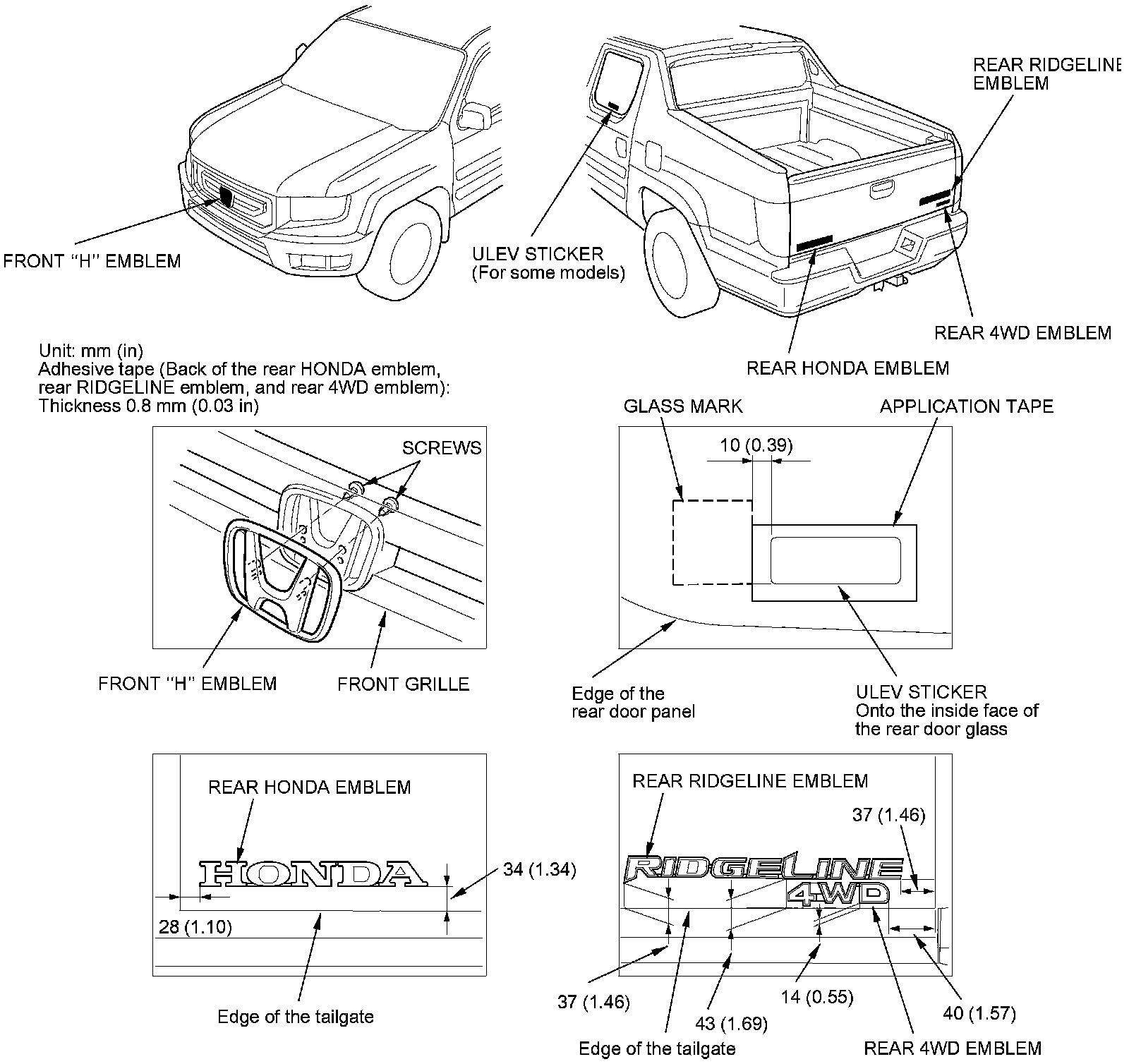

3. Apply the emblems/sticker where shown. When installing the ULEV sticker on the inside surface of the left rear door quarter glass, align the sticker with the edge of the glass mark as shown, then press the sticker into place, and remove the application tape.
