Front Bulkhead Cover Replacement

Front Bulkhead Cover Replacement

NOTE: Take care not to scratch the front bumper or the body.

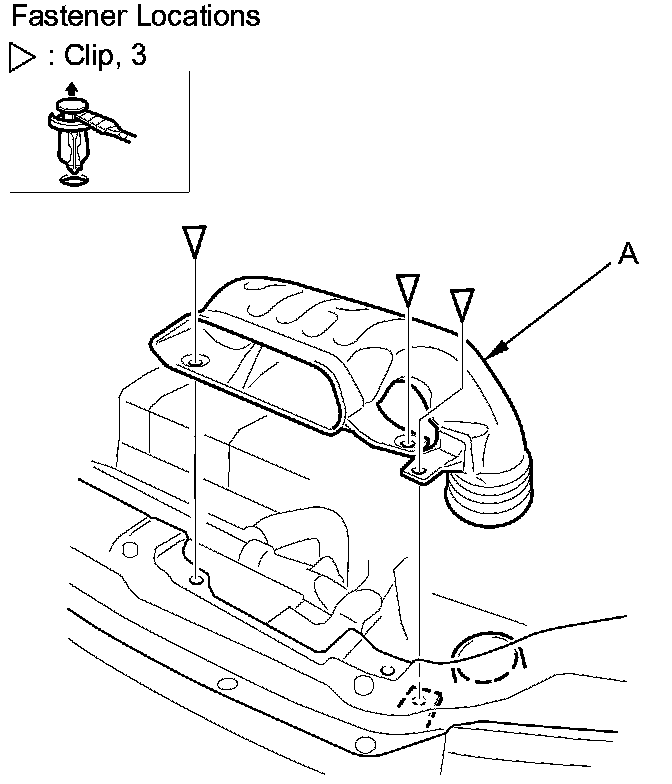

1. Remove the clips, then remove the air intake duct (A).

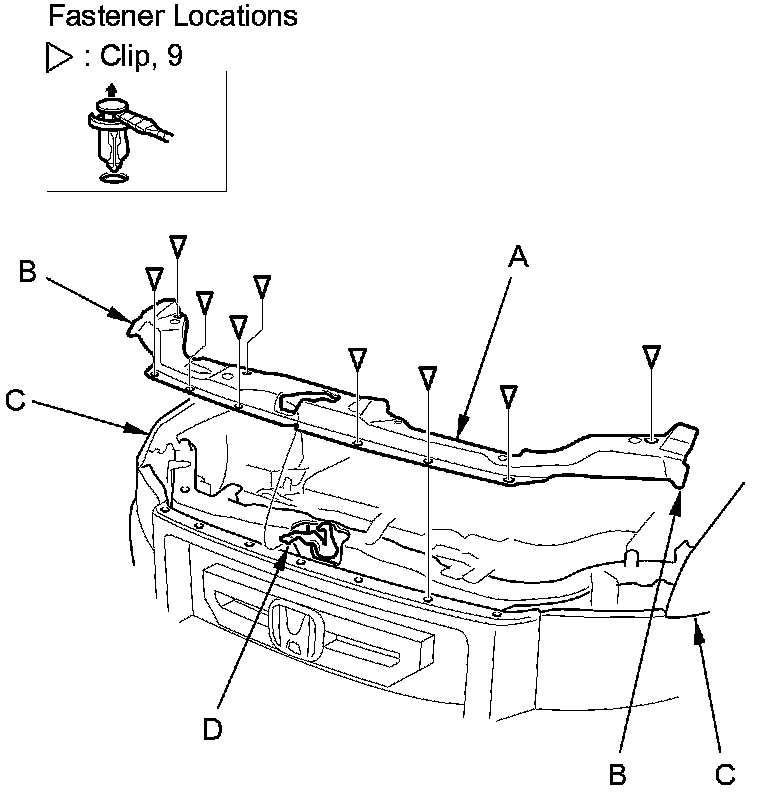

2. Remove the front bulkhead cover (A).

1. Remove the clips.

2. Release the side edges (B) of the cover from the front fenders (C) on both sides, and pass the hood latch knob (D) through the hole in the cover.





3. Install the cover in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
