Front Grille Replacement

Front Grille Replacement

NOTE: Take care not to scratch the front bumper or the related parts.

1. Remove the front bumper Service and Repair.

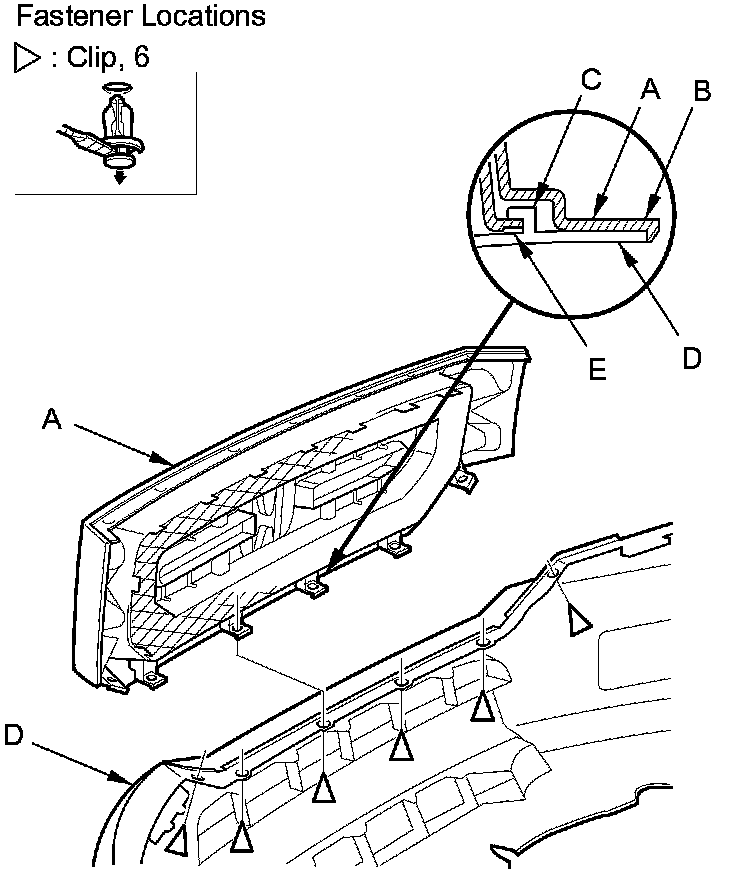

2. Remove the front grille (A).

1. Remove the clips.

2. Release the hooks (B) of the front grille.

3. Pull out the front grille from the groove (C) of the front bumper (D) to release the ribs (E) of the front grille.





3. Install the front grille in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
