Rear Seat Armrest Beverage Holder Replacement

Rear Seat Armrest Beverage Holder Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

NOTE:

- Take care not to tear or damage the seat covers.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

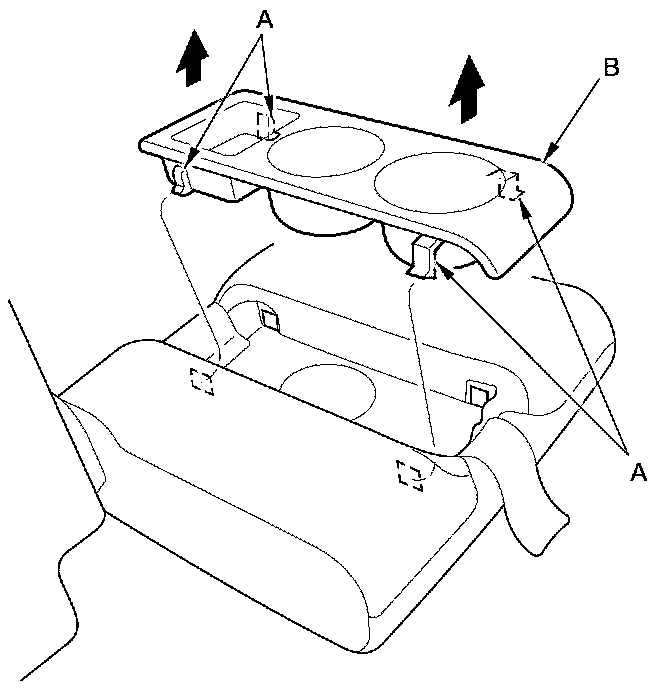

1. Release the hooks (A) with the appropriate trim tool, then remove the armrest beverage holder (B).





2. Install the beverage holder by pushing on the hook portions until the hooks snap into place securely.
