Carpet: Service and Repair

Carpet Replacement

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE:

- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
- Take care not to damage, wrinkle or twist the carpet.
- Be careful not to damage the dashboard or other interior trim pieces.

1. Remove these items:

- Front seats, both sides Front Seat Removal/Installation
- Rear seat assembly
- Front door sill trims, both sides Service and Repair
- Rear door sill trims, both sides Service and Repair
- B-pillar lower trims, both sides
- Kick panels, both sides Service and Repair
- Center console Center Console Removal/Installation
- Dashboard center lower cover Dashboard Center Lower Cover Removal/Installation
- Rear seat leg guide cover Rear Seat Leg Guide Replacement

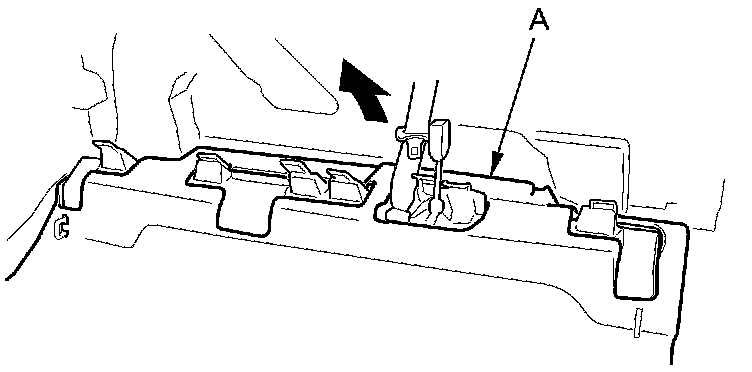

2. Release the hooks (A), then remove the footrest plate (B).

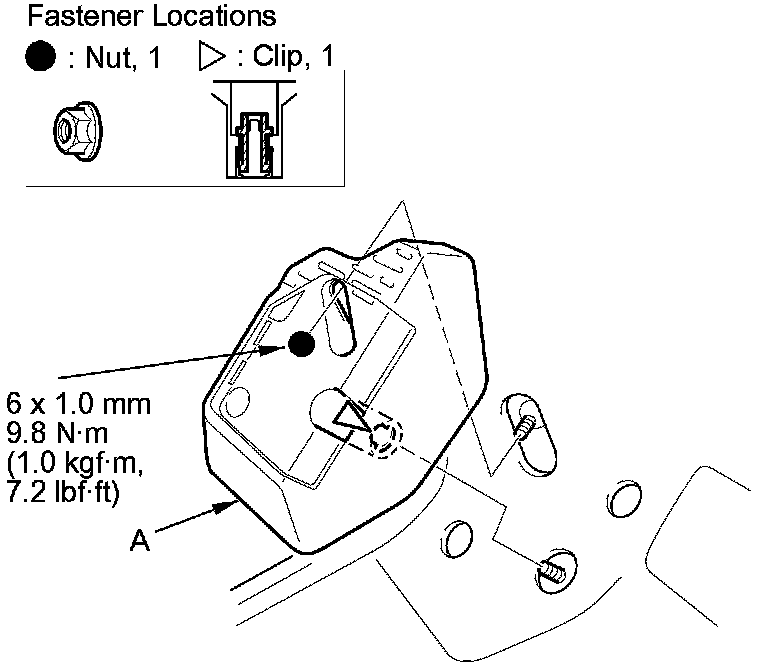

3. Remove the nut, and release the clip with a 6 mm socket wrench, then remove the footrest (A).






4. Remove the carpet (A).

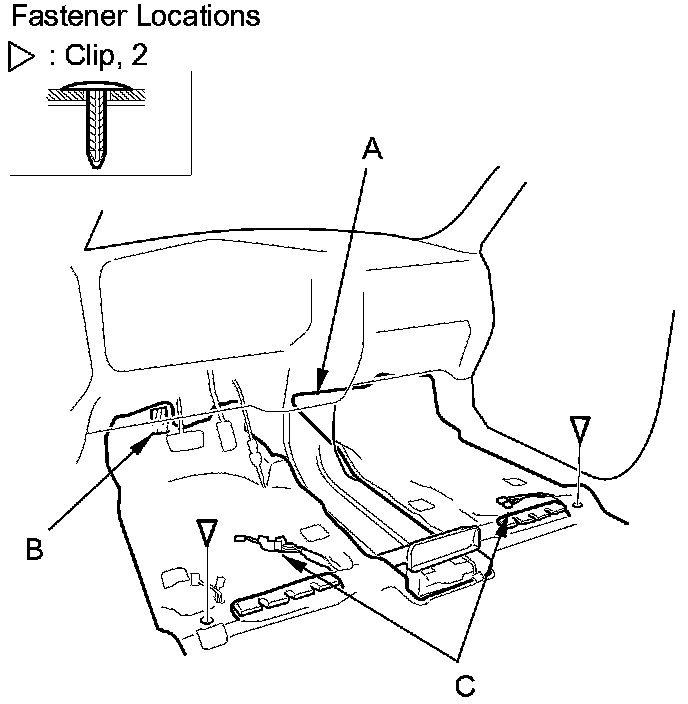

1. Remove the clips.

2. Pull back the rear passenger's area of the carpet.

3. Release the Velcro fastener (B), then pull back the carpet from under the dashboard.

4. Pull out both floor wire harnesses (C) through the slit in the carpet.

Front area





Rear area

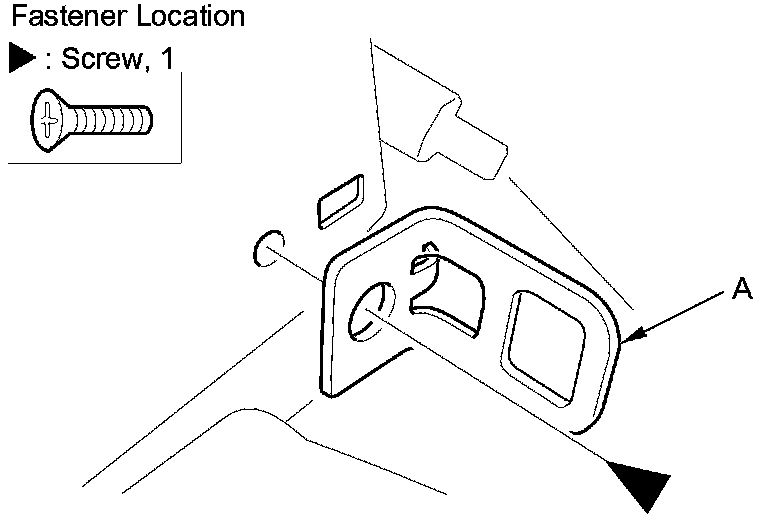

5. If necessary, remove the screw, then remove the tie-down hook (A) from each side.





6. Install the carpet in the reverse order of removal, and note these items:

- Take care not to damage, wrinkle or twist the carpet.
- If the clips are damaged or stress-whitened, replace them with new ones.
- Slip the slit in the carpet over the hooks on the rear heater upper duct.
- Push the clips and the Velcro fastener into place securely.
