Center Console Removal/Installation

Center Console Removal/Installation

Special Tools Required

- KTC Trim Tool Set SOJATP2014
*Available through the Honda Tool and Equipment Program; 888-424-6857

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the front seat, the dashboard, or the related parts.
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

1. Remove the dashboard center lower cover Dashboard Center Lower Cover Removal/Installation.

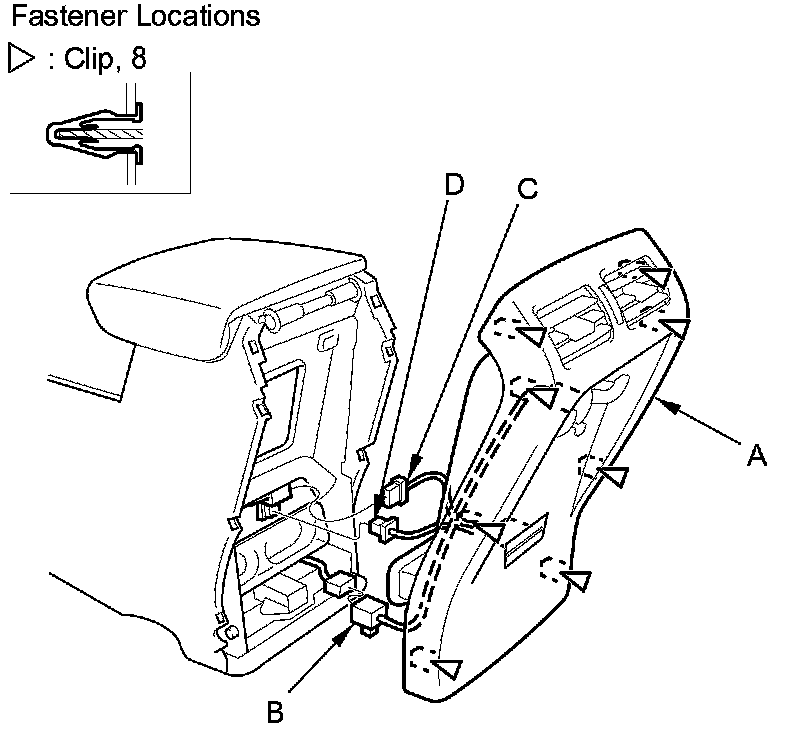

2. Detach the clips, then remove the console trim (A). Disconnect the subharness connector (B), the console box light connector (C), and if equipped, the AC power outlet connector (D), and detach the connector clip.

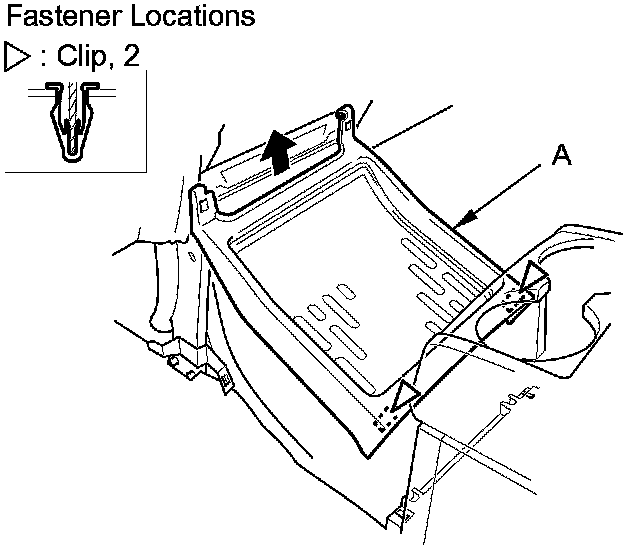

3. Pull up the center floor tray (A) by hand to detach the clips, then remove it.

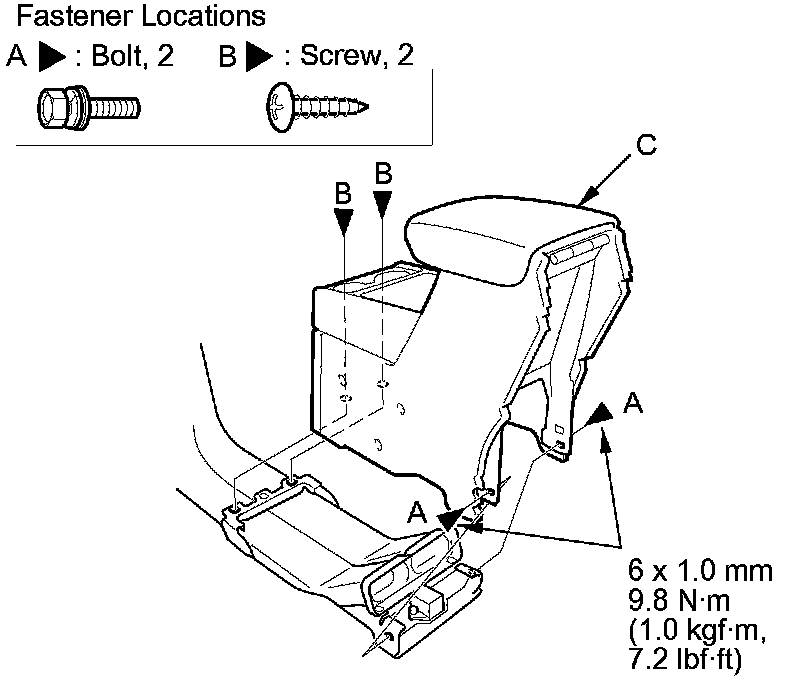

4. Remove the bolts (A) and the screws (B), then remove the center console (C).





5. Install the console in the reverse order of removal, and note these items.

- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure each connector is plugged in properly.
