Dashboard Passenger's Tray Replacement

Dashboard Passenger's Tray Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the passenger's tray or the related parts.

1. Remove the steering hanger beam from the dashboard Dashboard/Steering Hanger Beam Disassembly/Reassembly.

2. Remove the glove box striker bracket Glove Box Striker Bracket Replacement.

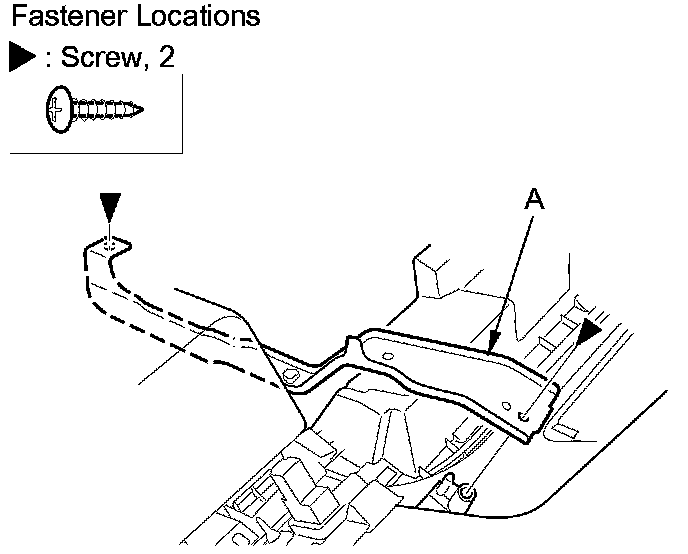

3. Remove the screws, then remove the right dashboard center stay (A).






4. Remove screws, then remove the passenger's tray (A).





5. Install the passenger's tray in the reverse order of removal.
