Glove Box Lock Replacement

Glove Box Lock Replacement

NOTE: Take care not to scratch the glove box or the related parts.

1. Open the glove box.

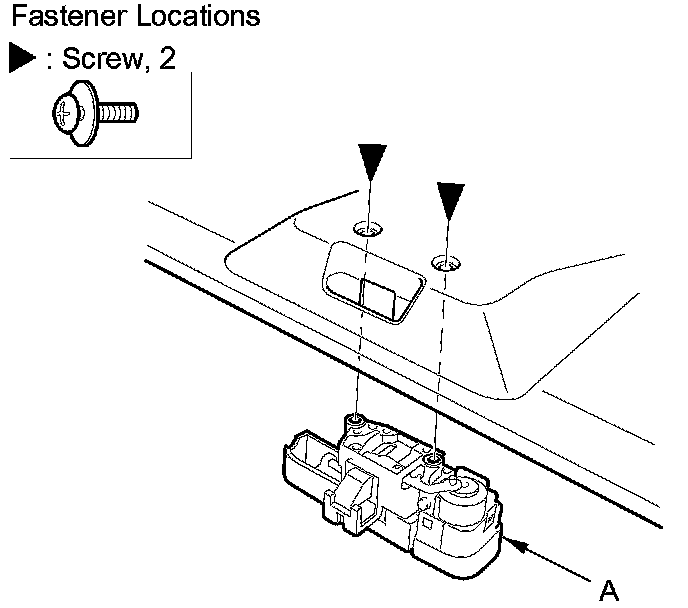

2. Remove the screws, then remove the glove box lock (A).





3. Install the glove box lock in the reverse order of removal.
