Glove Box Striker Bracket Replacement

Glove Box Striker Bracket Replacement

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE: Take care not to scratch the dashboard or the related parts.

1. While holding the glove box, remove the glove box stop on each side.

2. Disconnect the glove box damper from the glove box.

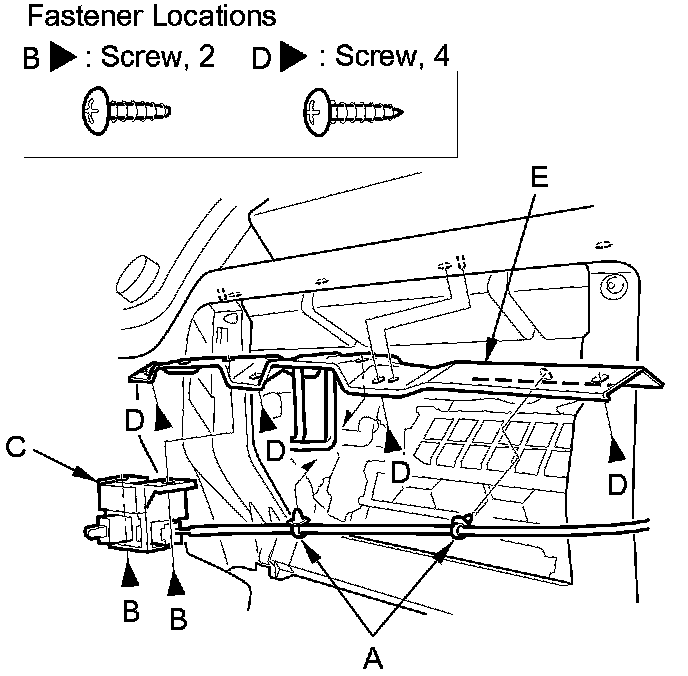

3. Detach the harness clips (A), and remove the screws (B), then remove the glove box light (C).





4. Remove the screws (D), then remove the glove box striker bracket (E).

5. Install the glove box striker bracket in the reverse order of removal.
