Glove Box Damper Replacement

Glove Box Damper Replacement

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE: Take care not to scratch the dashboard or the related parts.

1. While holding the glove box, remove the glove box stop on each side.

2. Disconnect the glove box damper from the glove box.

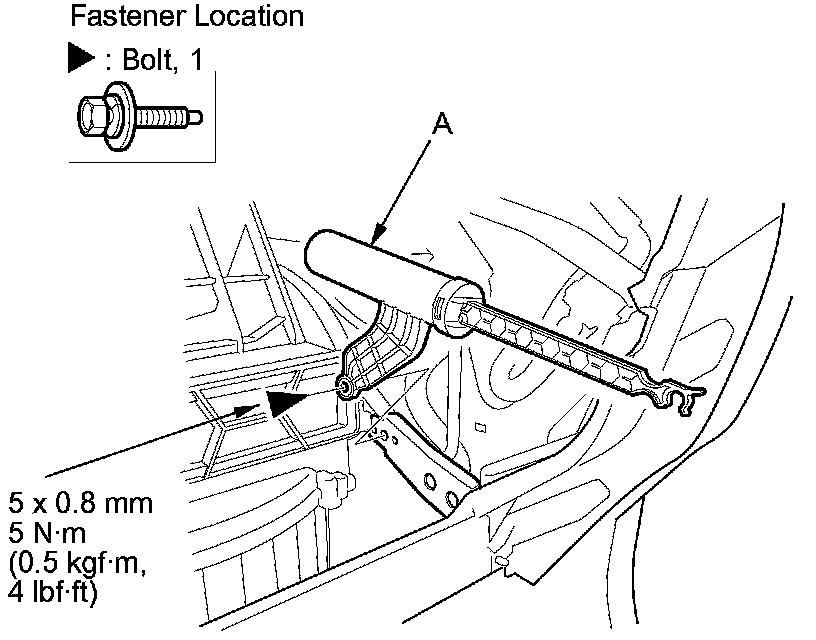

3. Remove the bolt, then remove the glove box damper (A).





4. Install the glove box damper in the reverse order of removal.
