Glove Box Removal/Installation

Glove Box Removal/Installation

SRS components are located in this area. Review the SRS component locations Locations and the precautions and procedures Service and Repair before doing repairs or service.

NOTE: Take care not to scratch the dashboard or the related parts.

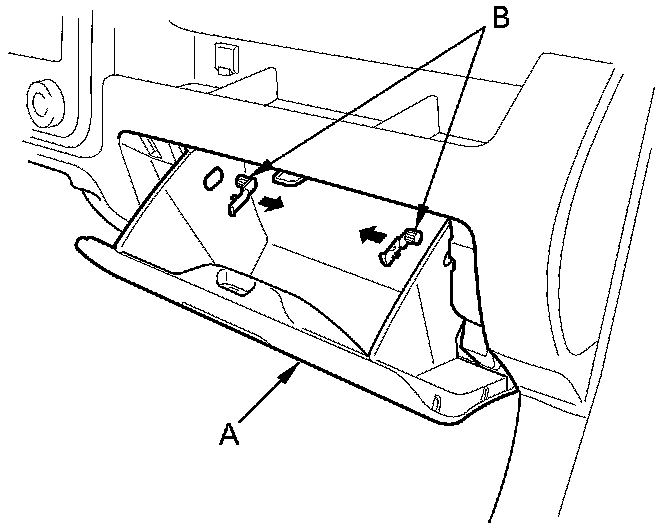

1. While holding the glove box (A), remove the glove box stop (B) on each side.

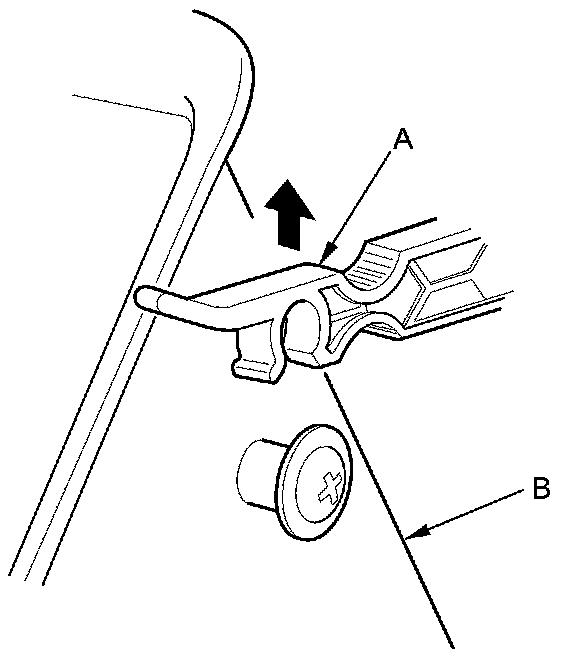

2. Disconnect the glove box damper (A) from the glove box (B).

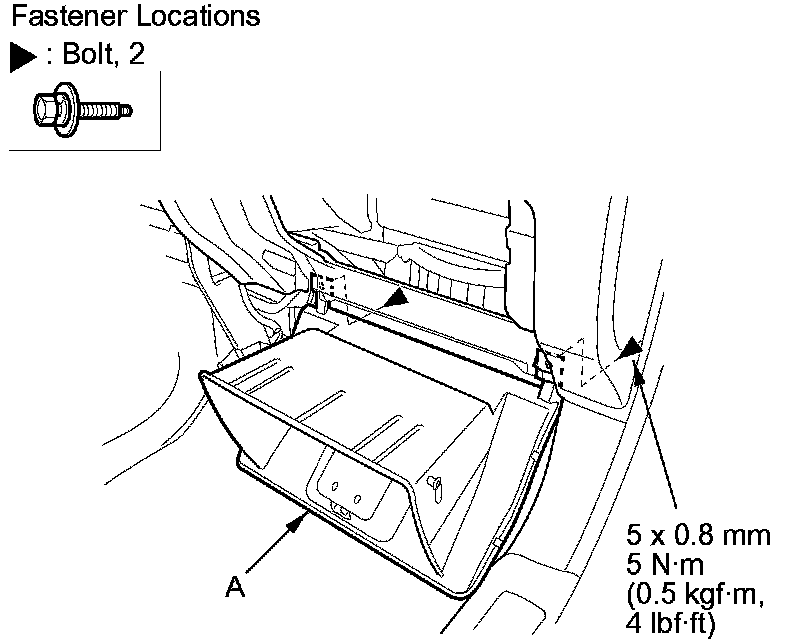

3. Remove the bolts, then remove the glove box (A).





4. Install the glove box in the reverse order of removal.
