Rearview Mirror Replacement

Rearview Mirror Replacement

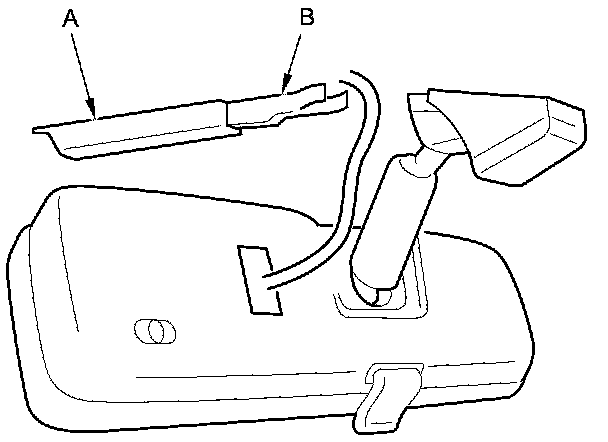

1. With compass: Slide the mirror harness upper cover (A) forward, then remove the mirror harness lower cover (B).

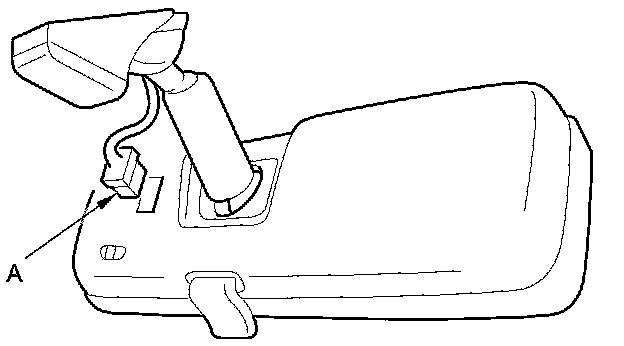

2. With compass: Disconnect the connector (A).

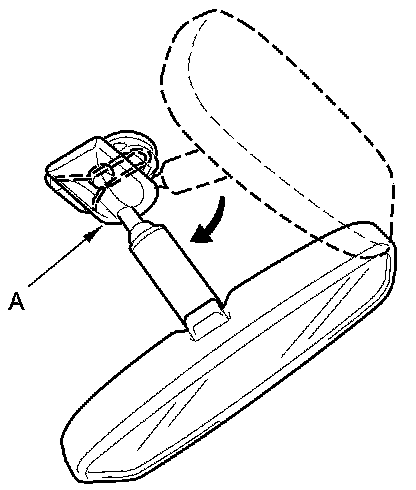

3. Turn the rearview mirror base (A) 90 °.

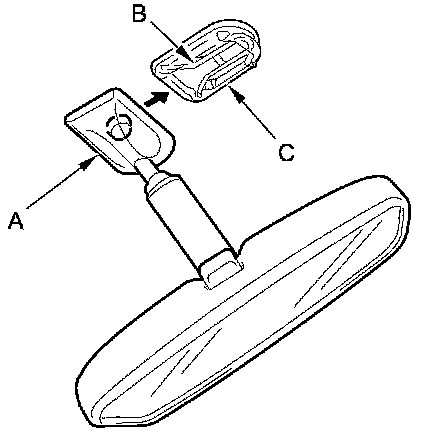

4. Slide the rearview mirror (A) down toward the bottom of the windshield to detach it from the spring (B) in the mount (C).





5. If necessary, remove the spring from the mount.

6. Install the rearview mirror in the reverse order of removal.
