Sunroof / Moonroof: Adjustments

Moonroof Glass Position Adjustment

The roof panel (A) should be even with the glass weatherstrip (B), to within 0.3 +1/-1 mm (0.01 +0.04/-0.04 in) all the way around. If not, make the following adjustment:





1. Slide the sunshade all the way back.

2. Remove the bracket covers.

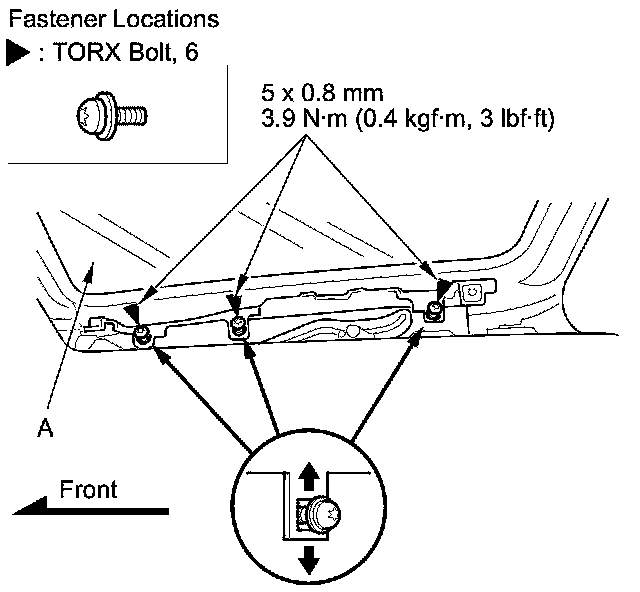

3. Slightly loosen the TORX bolts on each side with a TORX T25 bit, and adjust the glass (A).





4. Tighten the bolts to the specified torque, and reinstall the bracket covers.
