Sunroof / Moonroof: Service and Repair

Moonroof Glass Replacement

1. Close the glass fully.

2. Slide the sunshade all the way back.

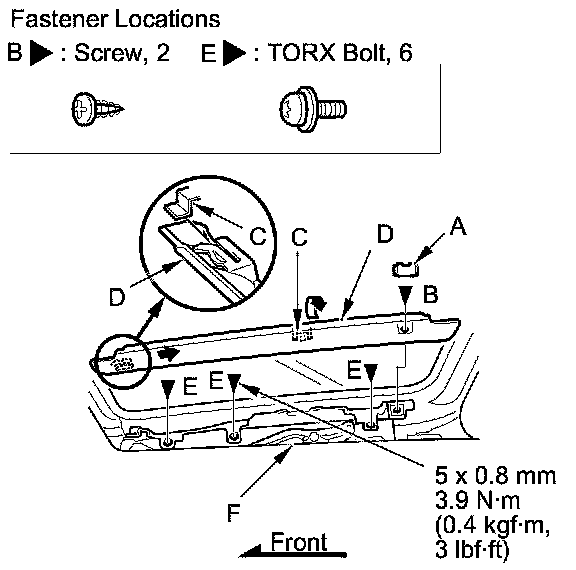

3. Pry out the lid (A), remove the screw (B), release the hooks (C), and remove the bracket cover (D). Repeat on opposite side. Remove the TORX bolts (E) with a TORX T25 bit from the glass brackets (F) on both sides.

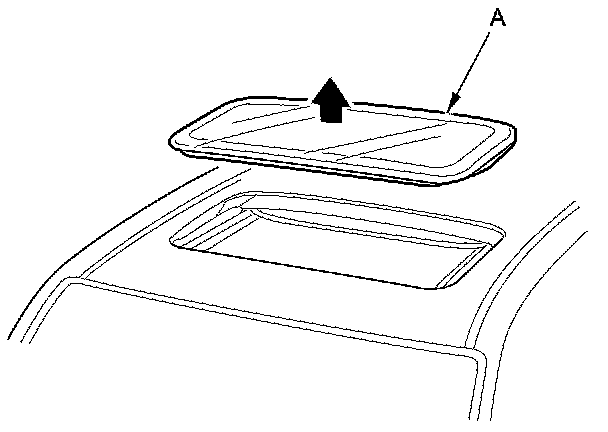

4. Remove the glass (A) by lifting it up. Do not damage the roof panel.





5. Install the glass in the reverse order of the removal, and do the glass position adjustment procedure Adjustments.

6. Check for water leaks. Let the water runs freely from a hose without a nozzle. Do not use a high-pressure spray.

NOTE: It is normal for some water to seep past the moonroof into the moonroof frame and exit through the drains.
