Rear Seat Cushion Cover Replacement

Rear Seat Cushion Cover Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to tear or damage the seat covers.

1. Remove the rear seat assembly Rear Seat Removal/Installation.

2. Remove the seat cushion cover/pad from the seat cushion frame Overhaul.

3. Pull back the edges of the seat cushion cover all the way around, and release the upholstery rings (A), then remove the seat cushion cover.

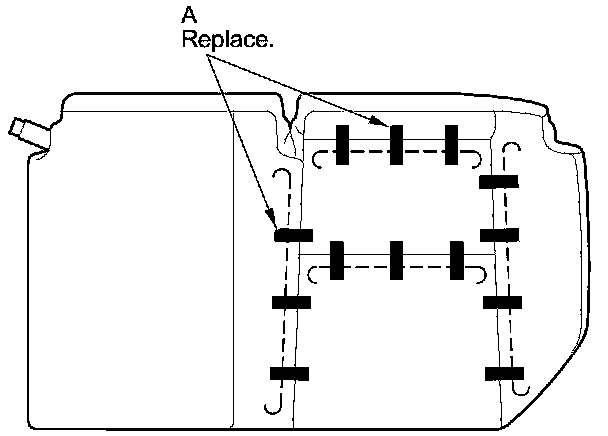

Left seat cushion cover

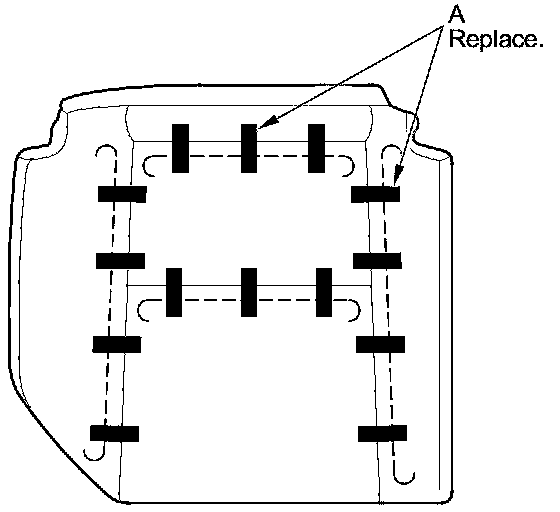

Right seat cushion cover





4. Install the cover in the reverse order of removal, and note these items:

- To prevent wrinkles, make sure the material is stretched evenly over the pad before securing the upholstery rings.

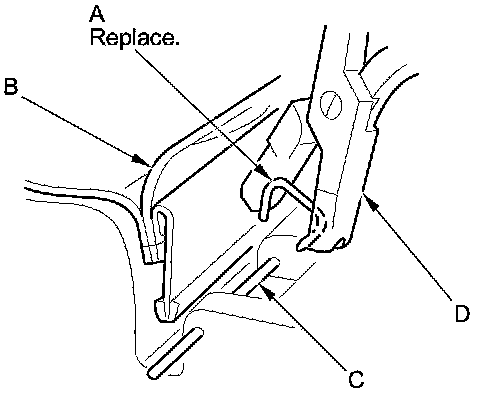

- Replace all of the upholstery rings (A) fastening the seat cushion cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
