Seat Temperature Switch: Service and Repair

Seat Heater Switch Test/Replacement

1. Remove the dashboard center lower cover Dashboard Center Lower Cover Removal/Installation.

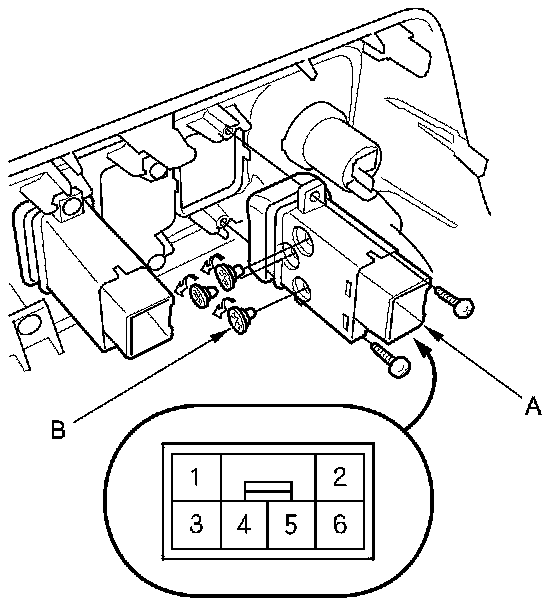

2. Remove the two screws and the switch (A).

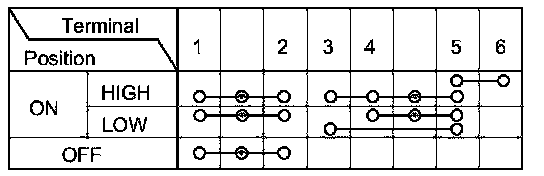

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, replace the illumination bulbs (B) or the switch.

5. Install the switch in the reverse order of removal.
