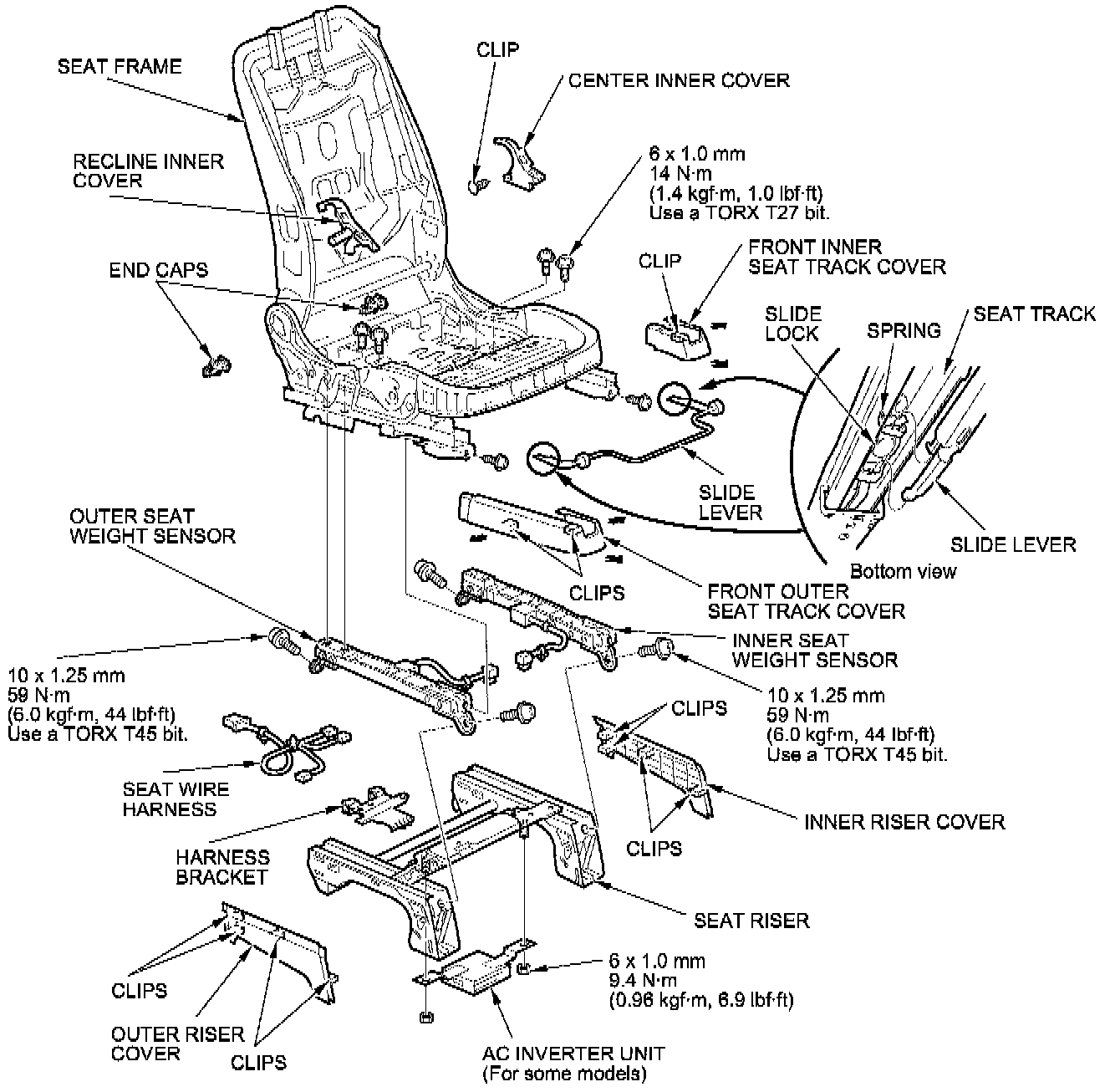

Front Seat Linkage Disassembly/Reassembly - Passenger's Manual

Front Seat Linkage Disassembly/Reassembly - Passenger's Manual

- Do the ODS unit initialization Programming and Relearning after any of these actions.
- Front passenger's seat replacement (including any seat components)
- Replacement of the seat weight sensors
- Replacement of the ODS unit

NOTE:

- Put on gloves to protect your hands.
- To remove the slide lever, slide the front seat forward fully, then lightly tap the lever out to disconnect both ends of it from the springs in both seat tracks.
- Apply oil to the pivot portions of the slide lock.
- Apply multipurpose grease to the sliding parts and pivot portions of the seat tracks.
- When tightening the weight sensor mounting TORX bolts, tighten the bolts in the sequence shown.
