Rear Seat Leg Guide Replacement

Rear Seat Leg Guide Replacement

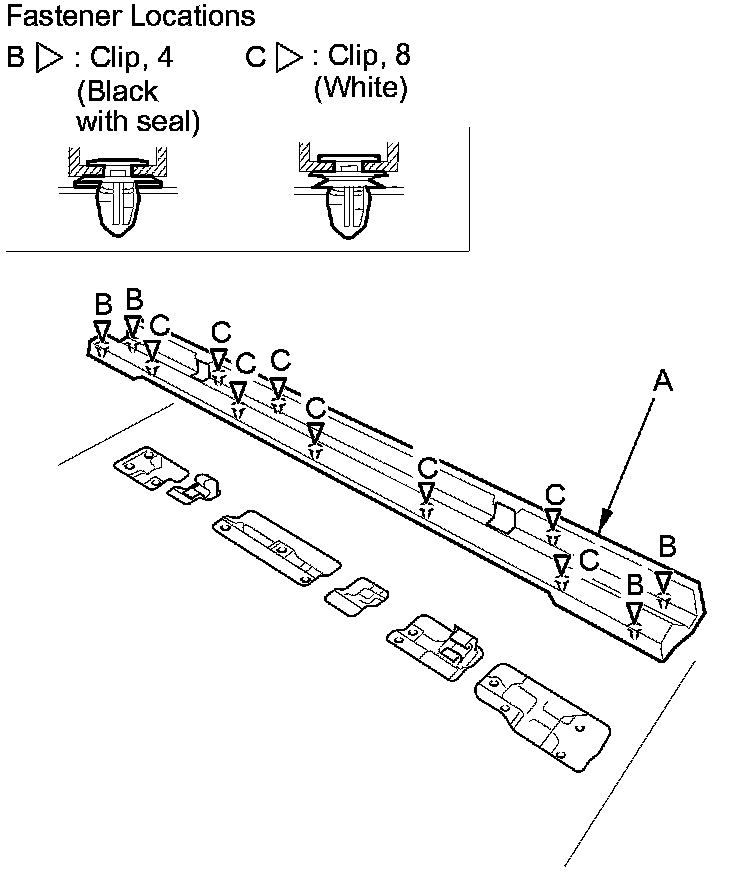

1. Pull up the seat leg guide cover (A) to detach the clips (B, C), then remove it.

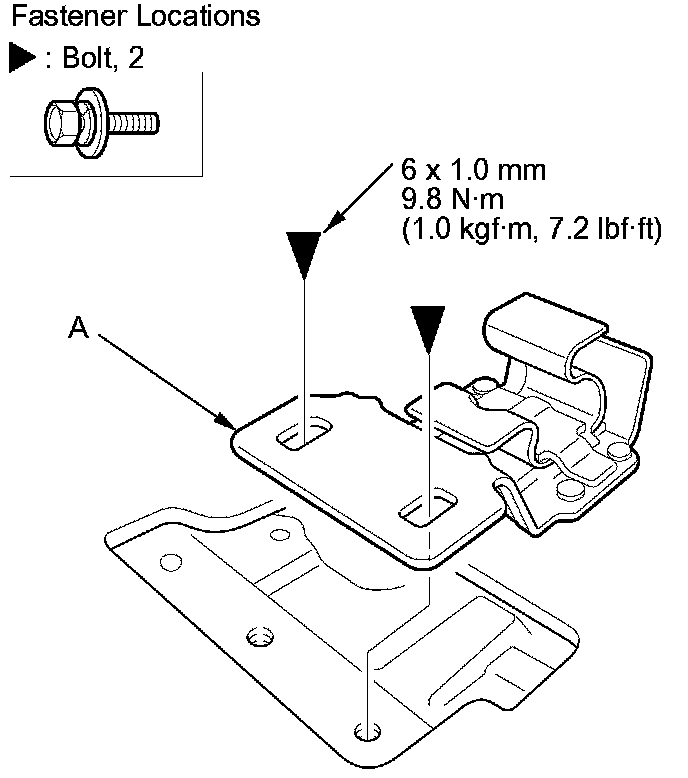

2. Remove the bolts, then remove the seat leg guide (A).






3. Install the leg guide in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.

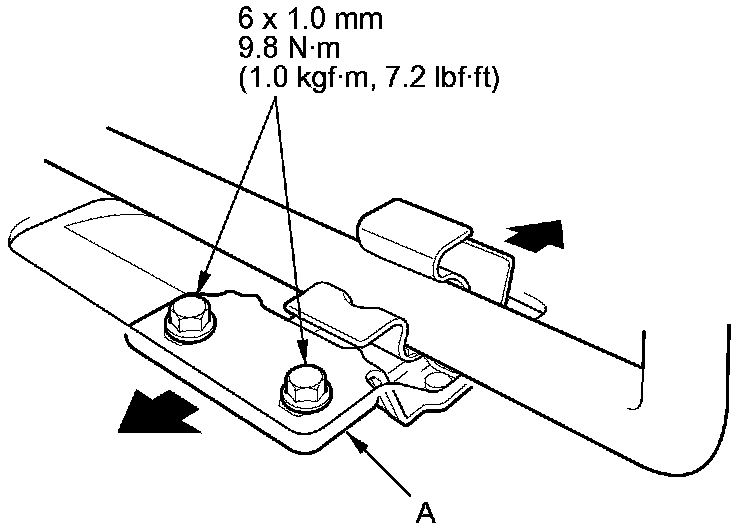

- Before reinstalling the leg guide cover, adjust the seat leg guide (A) position.
- Push the clips into place securely.
