Rear Door Weatherstrip Replacement

Rear Door Weatherstrip Replacement

NOTE:

- Take care not to scratch the door.
- Use a clip remover to remove the clips.

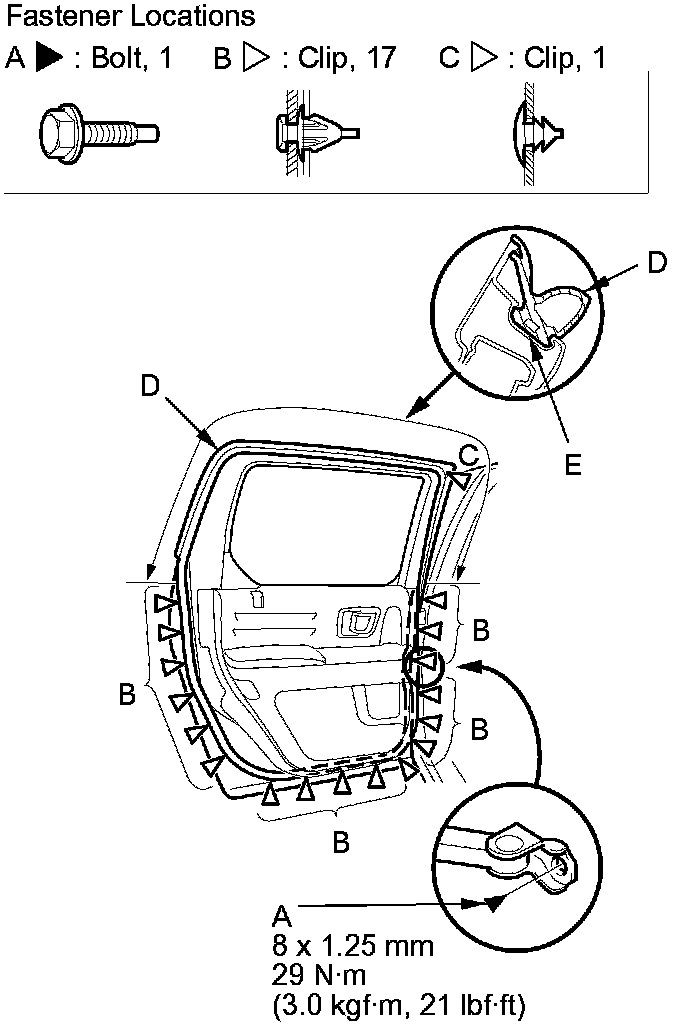

1. Remove the door checker mounting bolt (A) at the B-pillar.





2. Detach the clips (B, C) and release the door weatherstrip (D) from the holder (E), then remove the door weatherstrip.

3. Install the weatherstrip in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure the weatherstrip is installed in the holder securely.
- Apply medium strength liquid thread lock to the door checker mounting bolt before installation.
- Check for water leaks.
