Yaw Rate Sensor: Service and Repair

Yaw Rate-Lateral Acceleration Sensor Replacement

NOTE:

- Do not damage or drop the sensor as it is sensitive.
- Do not use power tools.

1. Turn the ignition switch to LOCK (0).

2. Remove the rear console trim Center Console Removal/Installation.

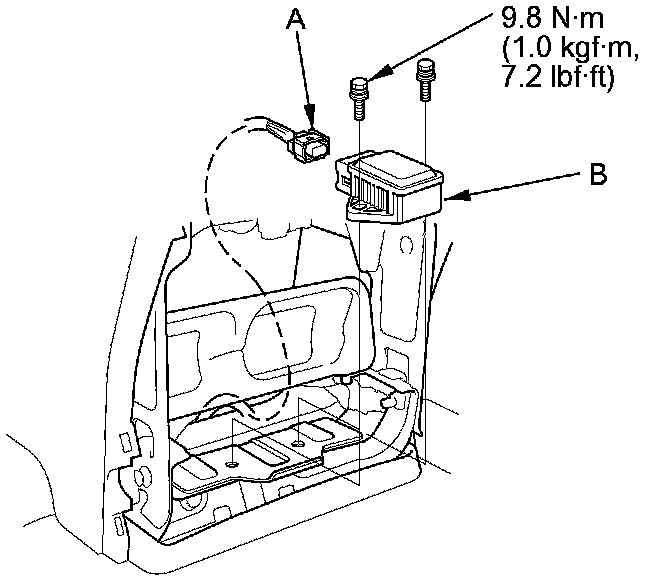

3. Disconnect the yaw rate-lateral acceleration sensor 4P connector (A).





4. Remove the sensor mounting bolts, then remove the yaw rate-lateral acceleration sensor (B).

5. Install in the reverse order of removal.
