Procedures

Parking Brake Shoe Lining Break-in

WARNING
Do this operation in a safe area.

NOTE:

- Do the brake lining surface break-in when replacing shoes with new brake linings and/or new rear brake disc/drum.
- Check the number of parking brake pedal clicks. Adjust the parking brake before lining surface break-in.

1. Park the vehicle on a firm, level surface.

2. Release the parking brake pedal.

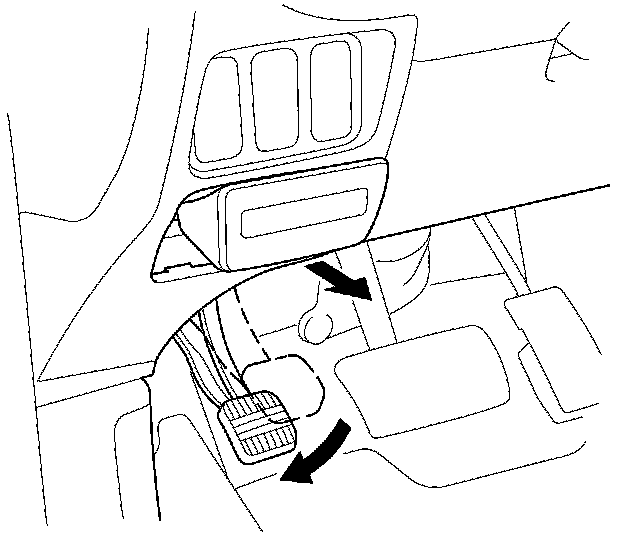

3. Press the parking brake pedal 2 to 4 clicks.





4. Drive the vehicle for 1/4 mile (400 m) at no more than 31 mph (50 km/h).

5. Stop the vehicle and release the parking brake for 5-10 minutes to allow the brake disc/drum to cool.

6. Repeat step 3 through 5 two more times.

7. Check the parking brake pedal adjustment Adjustments.
