Air Bag
>>

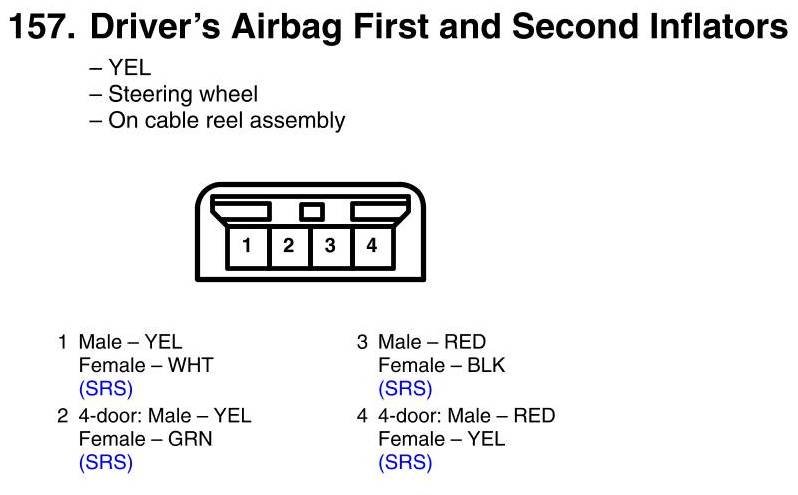

Driver's Airbag First And Second Inflators Connector View
Driver's Airbag First And Second Inflators Connector View
